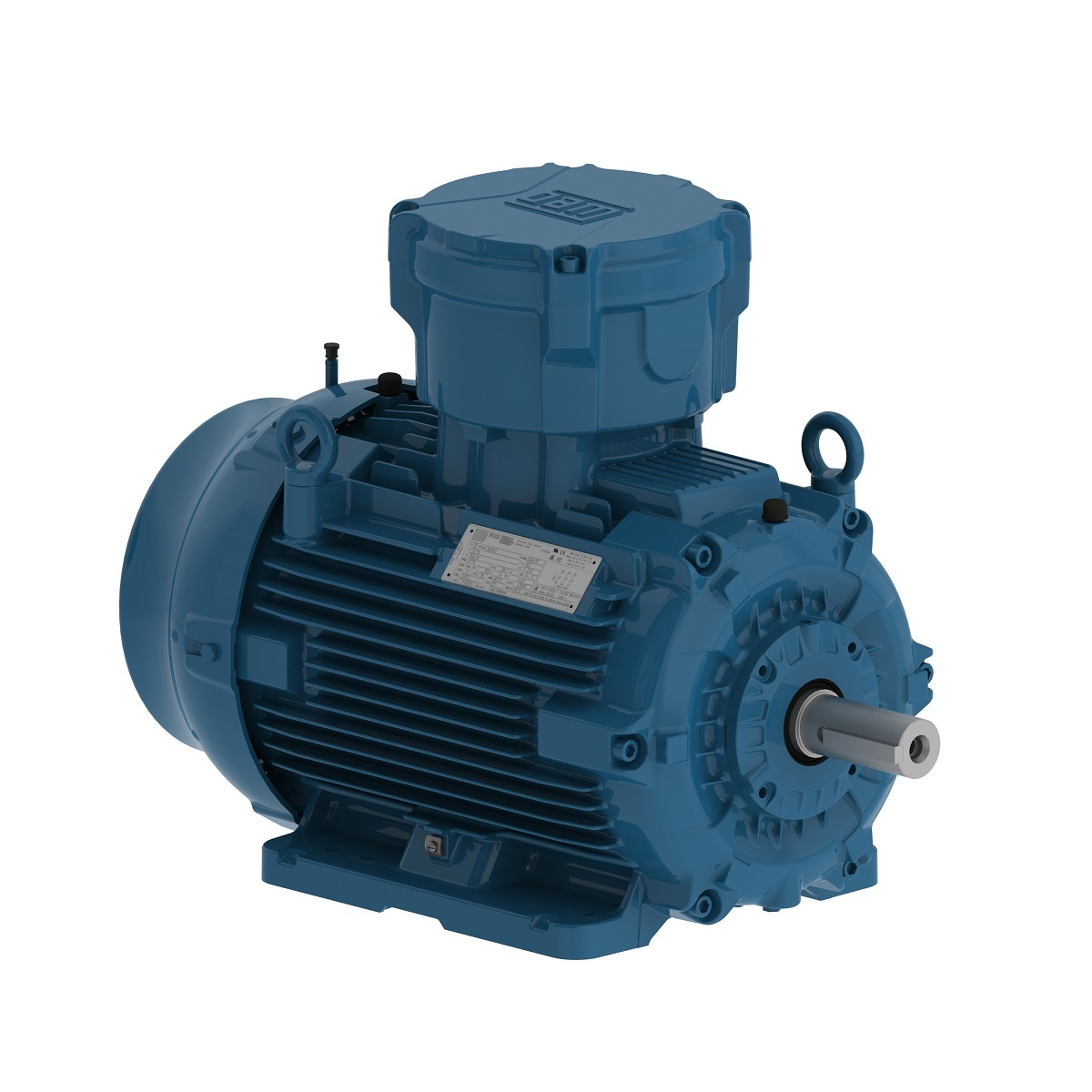

WEG E01112XT3YAX160LF3-W 12430782 AC Motor, 1000 rpm, 50 Hz, 380-400-415/660-690/460 V, 11 Kw
Get it by Monday, Aug 24
€6,836.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 19.3A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 340% |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Oil Seal |
| Degree Of Protection | IP56 |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Frame | 160m/L |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Grade | Grade 316 |
| Grounding Lugs Type | Double |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Joints Seal | Lumomoly |
| L. R. Amps | 151A |
| Locked Rotor Time(hot) | 12 sec. |
| Locked Rotor Torque | 310% |
| Lrc | 7.8 |
| Main Terminal Box Hole | 2 x M40 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 4.58 lbs.-sq. ft. |
| Mounting | Foot-Mounted, B3T |
| Nde Bearing Seal | Lip Seal |
| No Load Amps | 10.5A |
| No. Of Poles | 6 |
| Noise Level | 59 dBA |
| Output Rating | 15 hp |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1180 RPM |
| Rated Torque | 65.7 lbs.-ft. |
| Rated Voltage | 460V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.67% |
| Space Heater Voltage | 200-240V |
| Starting Method | Direct On Line |
| Synchronous Speed | 1000 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Bmc 6 Pins |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 380-400-415/660-690/460V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 150°C |
Shipping Info:
| Ship weight (kg) | 208.8 |
