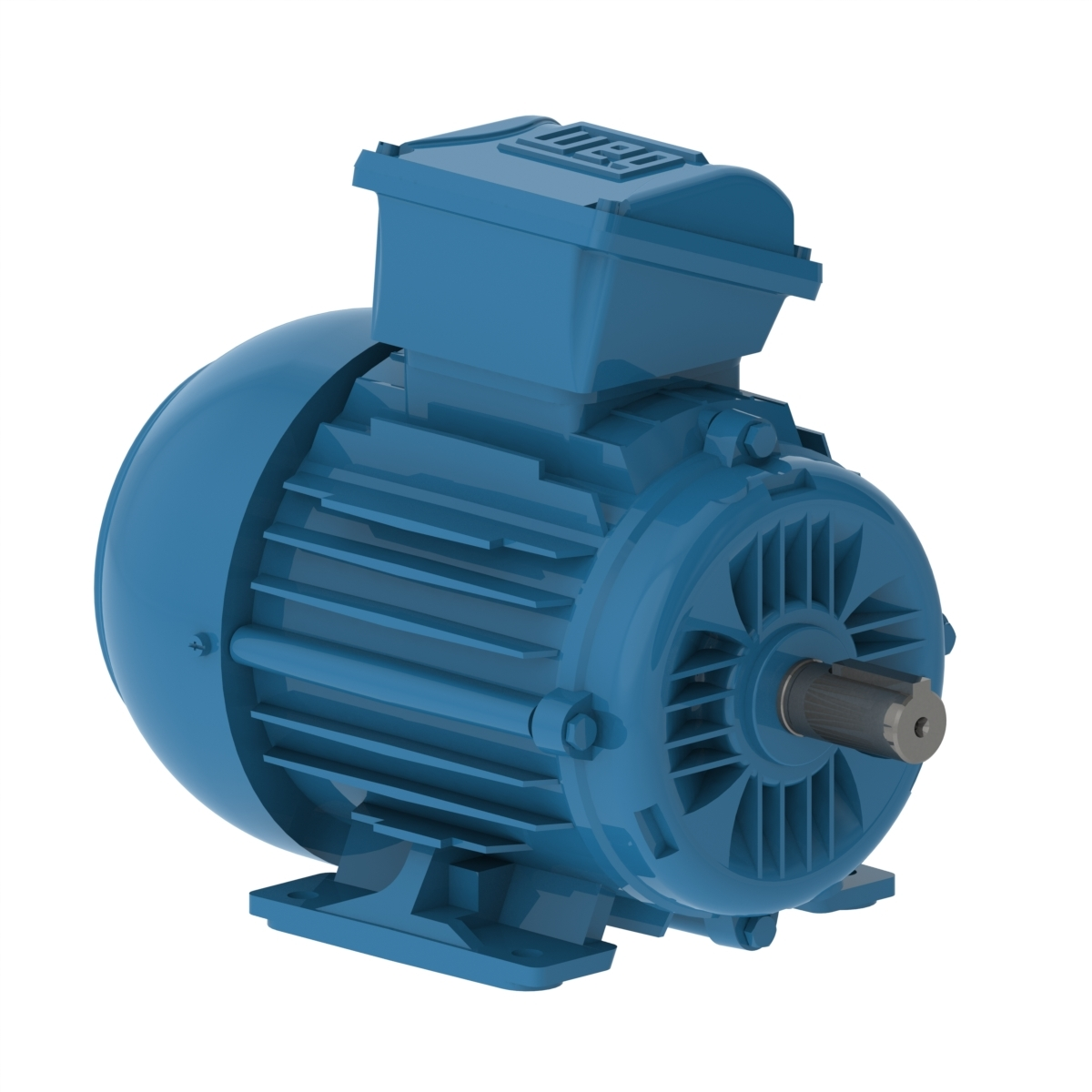

WEG E0.1818EP3WAX63F3-W2 12351546 AC Motor, 1500 rpm, 50 Hz, 220-230-240/380-400-415/460 V, 0.18 Kw
Get it by Tuesday, Aug 25
€435.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Ambient Temp. | -20°C to +40°C |
| Cold Locked Rotor Time | 52 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | N |
| Duty Cycle | S1 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Grade | Grade 316 |
| Grounding Lugs Type | Double |
| Insulation Class | Class F |
| Item | 2229709 |
| L. R. Amps | 2.39A |
| Locked Rotor Time(hot) | 29 sec. |
| Lrc | 4.5 |
| Material | Stainless Steel |
| Nde Bearing Seal | V Ring |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Rotation | CW, CCW |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Speed | 1500 RPM |
| Starting Method | Direct On Line |
| Tropicalized Painting | Without |
| Voltage | 220-230-240/380-400-415/460V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 140°C, Thermistor 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 8.46 |
