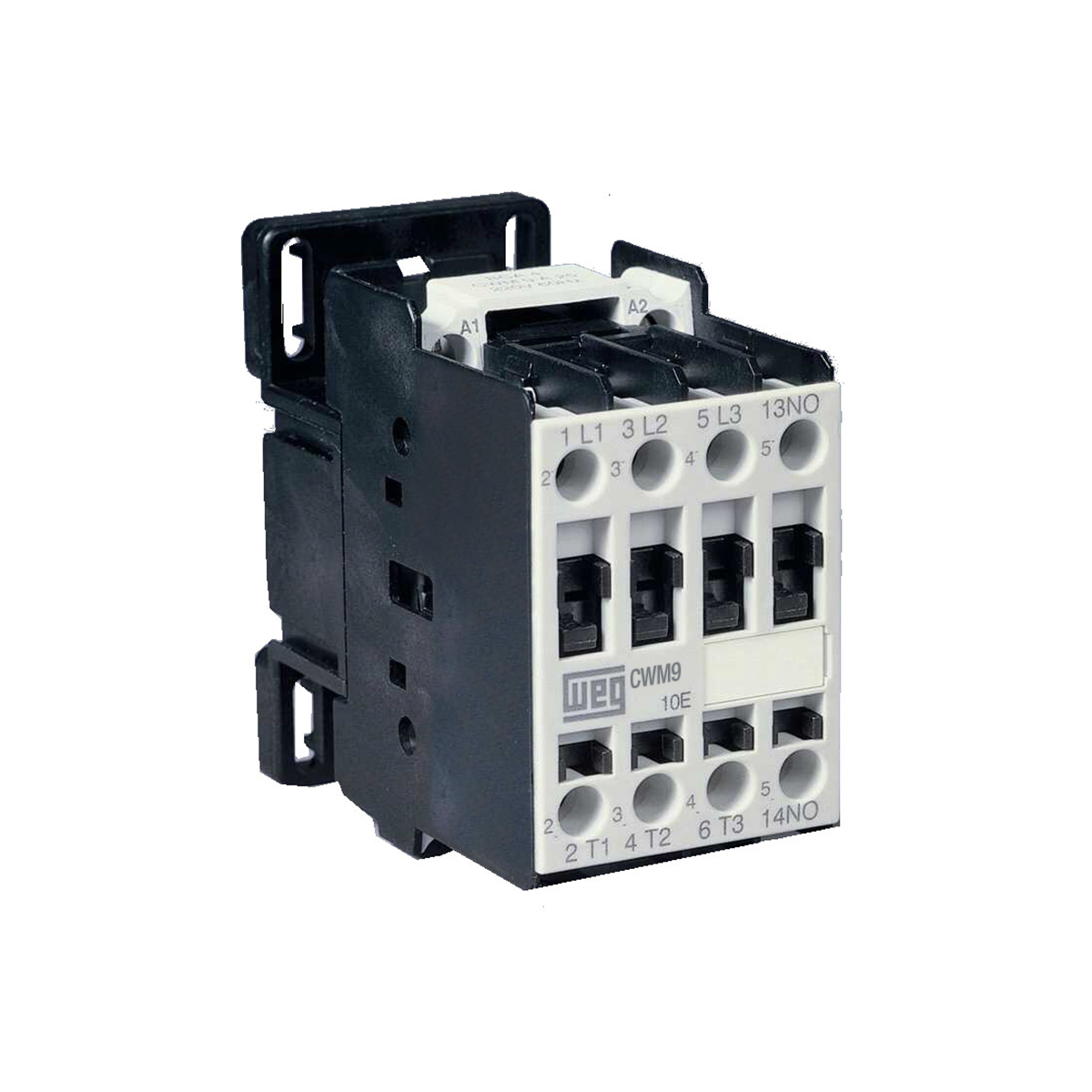

WEG CWM9N-01-30V30 11697374 NEMA Contactor, 9 A Rated, 3 NO Main Contact, 1 NC Aux Contact, 208V 50Hz/240V 60Hz
Item: BB9MYEModel: CWM9N-01-30V30Cross Ref: 11697374
7 In Stock
Ships within 2 days via
€99.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Amps | 9A |
| Contact Type | NO |
| Control Voltage | 208/240V |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP20 |
| Depth | 3.43" |
| Electrical Lifespan | 1.5 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 3.19" |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| No. Of Contacts | 2 , 3 NO |
| Part/accessory Type | Contactor |
| Rated Insulation Voltage | 1000V |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 1000V |
| Rated Operational Amps | 25A |
| Rated Operational Voltage | 690V |
| Reference | CWM |
| Terminal Type | Screw |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 8.71 |
| Ship width (cm) | 4.5 |
Product Variants
| Product | Model | Height | Depth | Price | |
|---|---|---|---|---|---|
 |
CWM50N-00-30V18 | 4.59" | 4.57" | €176.84 | |
 |
CWM150N-22-30E10 | 162.5 mm | - | €945.83 | |
 |
CWM300N-22-30E10 | 7.87" | 7.13" | €1,496.32 | |
 |
CWM18N-10-30V18 | 3.19" | 3.43" | €114.42 | |
 |
CWM95N-00-30V18 | 4.61" | 4.96" | €291.46 | |
 |
CWM32N-11-30V18 | 3 1/2" | 3.86" | €136.06 | |
|
CWM50N-00-30V30 | 4.59" | 4.57" | €176.84 |
