WEG CWM300N-22-30E02 14368616 NEMA Contactor, 300 A Rated, 3 NO Main Contact, 2 NO, 2 NC Aux Contact, 24-28V 50/60Hz-DC
Get it by Tuesday, Sep 1
€1,496.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Amps | 300A |
| Contact Type | NO |
| Control Voltage | 24-28V DC |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP00 |
| Depth | 7.13" |
| Electrical Lifespan | 1 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 7.87" |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Hp 200/208v 3ph | 100 hp |
| Max. Hp 230/240v 3ph | 125 hp |
| Max. Hp 460/480v 3ph | 250 hp |
| Max. Hp 575/600v 3ph | 350 hp |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Mechanically Interlocked | Yes |
| Min. Rated Operational Frequency | 400 Hz |
| No. Of Contacts | 2 , 3 NO |
| Rated Insulation Voltage | 1000V |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 1000V |
| Rated Operational Amps | 410A |
| Rated Operational Voltage | 1000V |
| Reference | CWM |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 300A |
| Width | 5.67" |
Shipping Info:
| Ship weight (kg) | 6.65 |
| Ship height (cm) | 19.99 |
| Ship length (cm) | 18.11 |
| Ship width (cm) | 14.4 |
Product Variants
| Product | Model | Amps | Height | Control Voltage | No. Of Contacts | Rated Operational Voltage | Rated Operational Amps | Min. Rated Operational Frequency | Max. Rated Operational Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

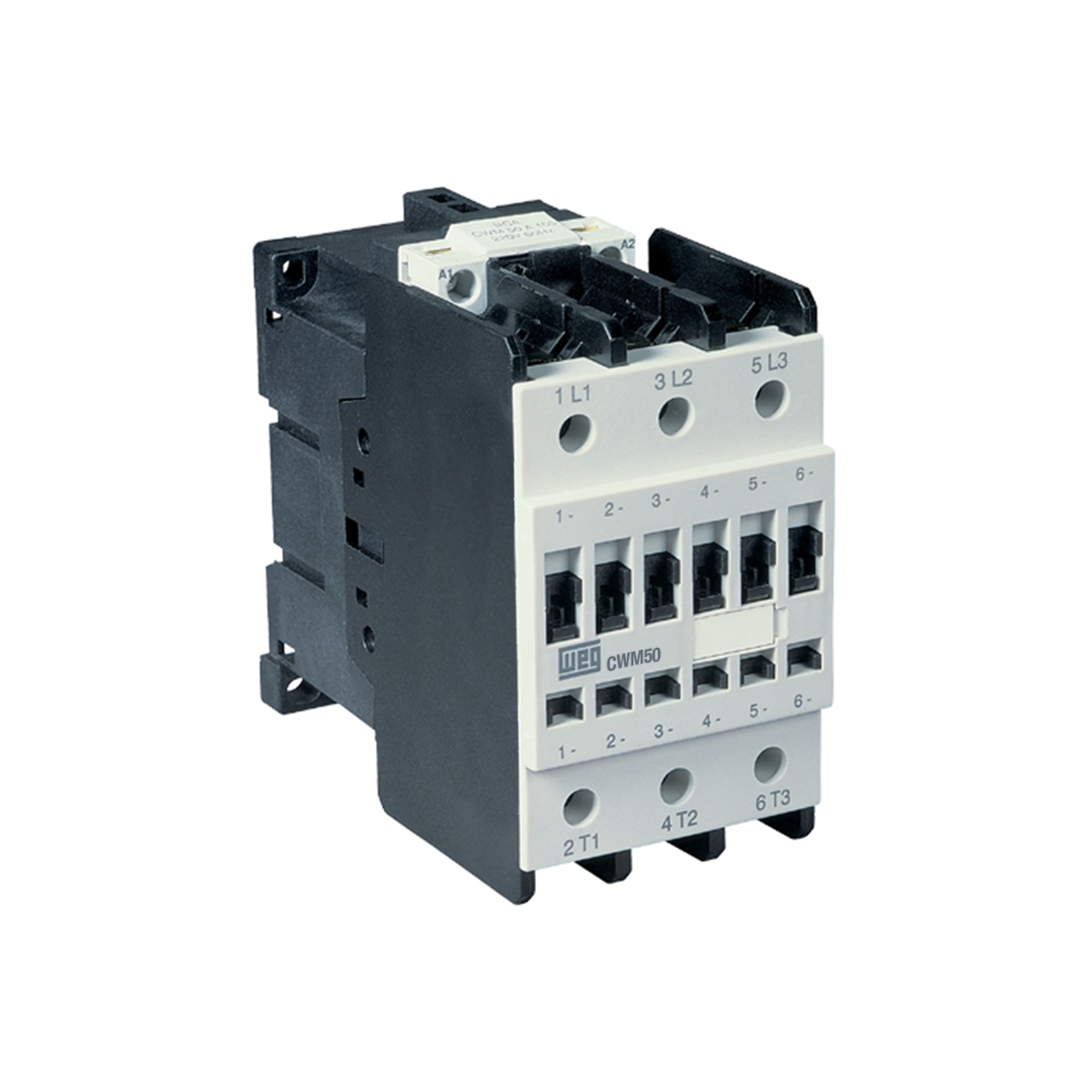

CWM50N-00-30V18 | 50A | 4.59" | 110/120V | 2 | 1000V | 90A | 400 Hz | 25 Hz | €176.84 | |
 |

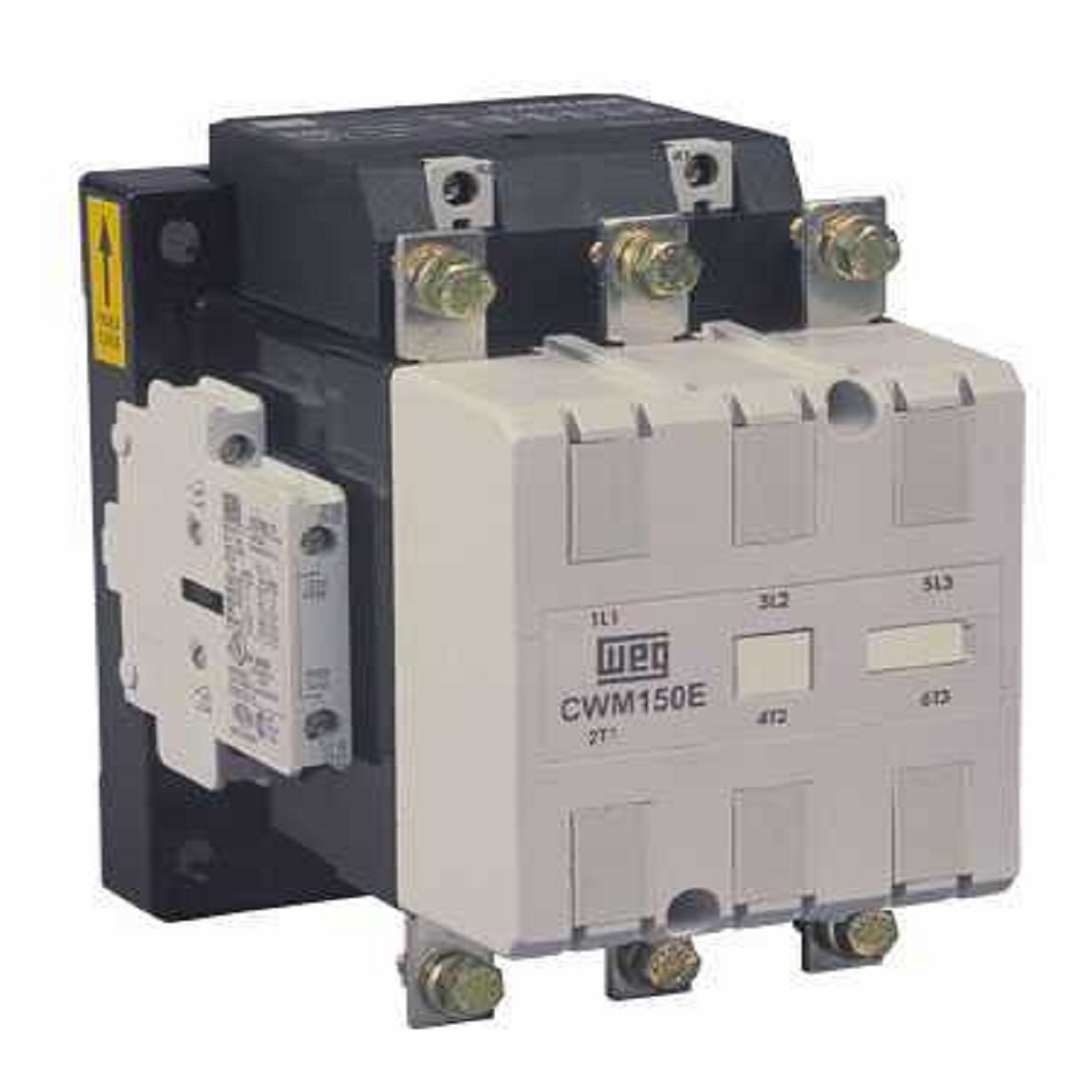

CWM150N-22-30E10 | 150A | 162.5 mm | 110-130V DC | 2 | 1000V | 225A | 25 Hz | 400 Hz | €945.83 | |
|

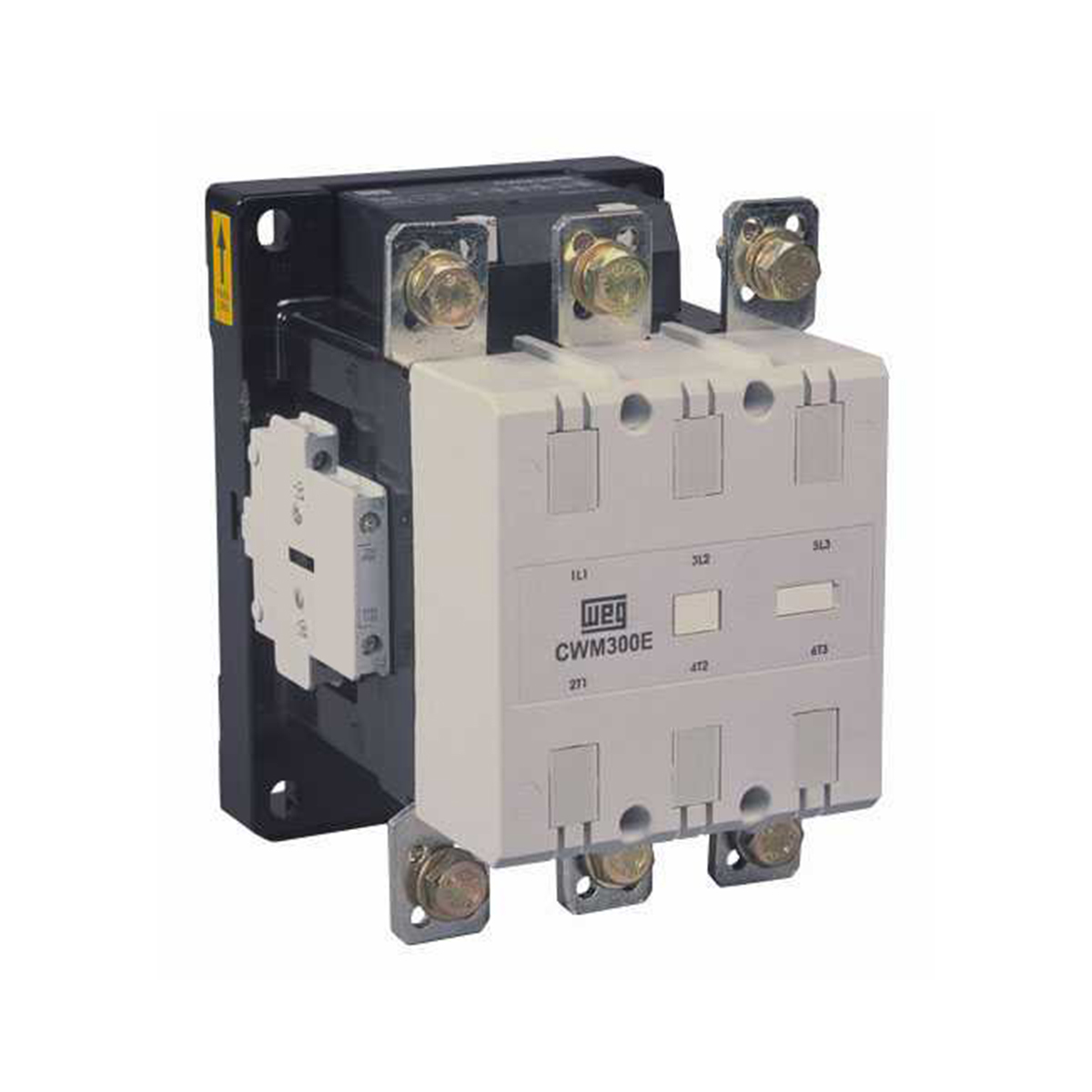

CWM300N-22-30E10 | 300A | 7.87" | 110-130V DC | 2 | 1000V | 410A | 400 Hz | 25 Hz | €1,496.32 | |
 |
CWM18N-10-30V18 | 18A | 3.19" | 110/120V | 2 | 690V | 32A | 400 Hz | 25 Hz | €114.42 | |
 |

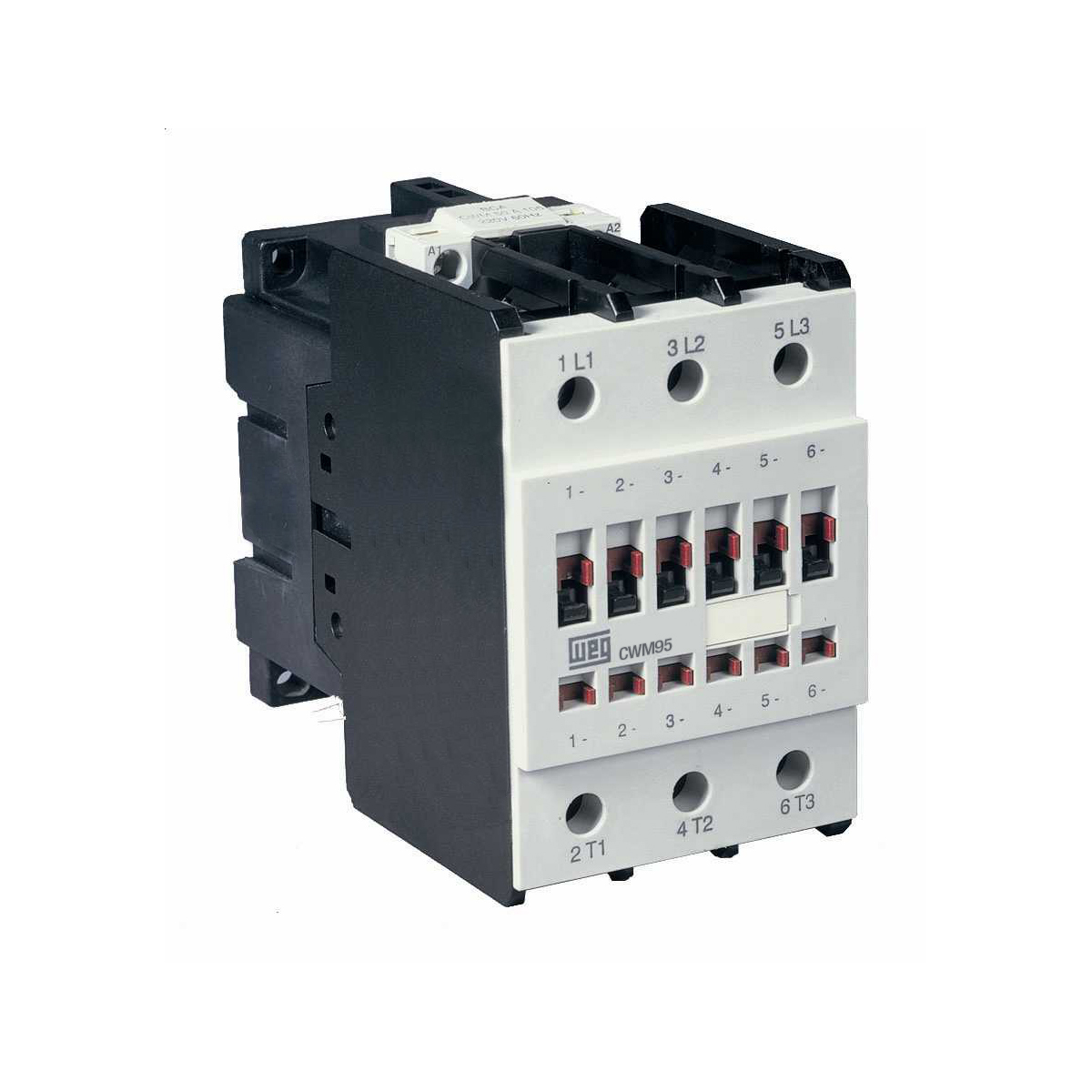

CWM95N-00-30V18 | 95A | 4.61" | 110/120V | 2 | 1000V | 140A | 400 Hz | 25 Hz | €291.46 | |
 |

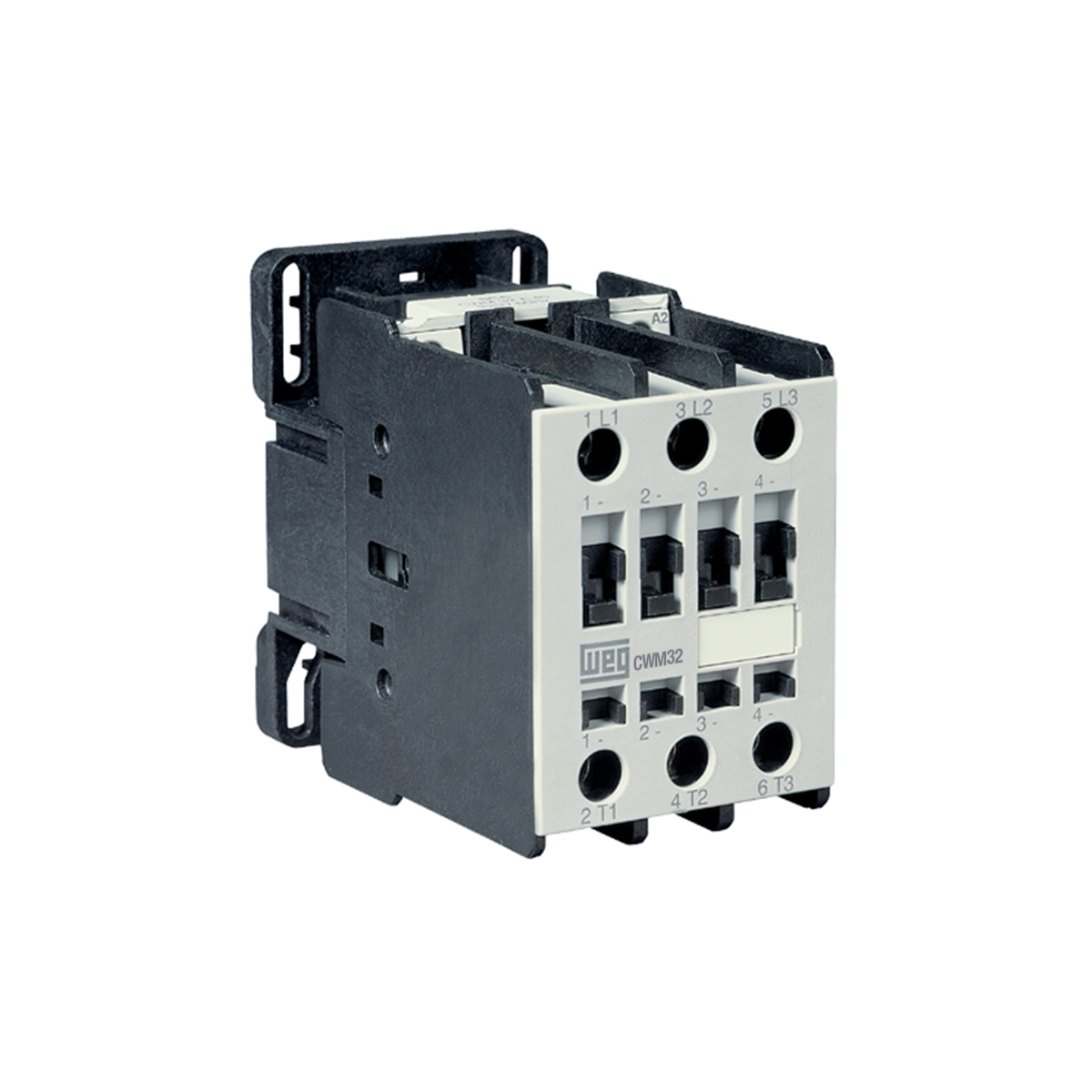

CWM32N-11-30V18 | 32A | 3 1/2" | 110/120V | 2 | 690V | 60A | 400 Hz | 25 Hz | €136.06 | |
|
CWM50N-00-30V30 | 50A | 4.59" | 208/240V | 2 | 1000V | 90A | 400 Hz | 25 Hz | €176.84 |
