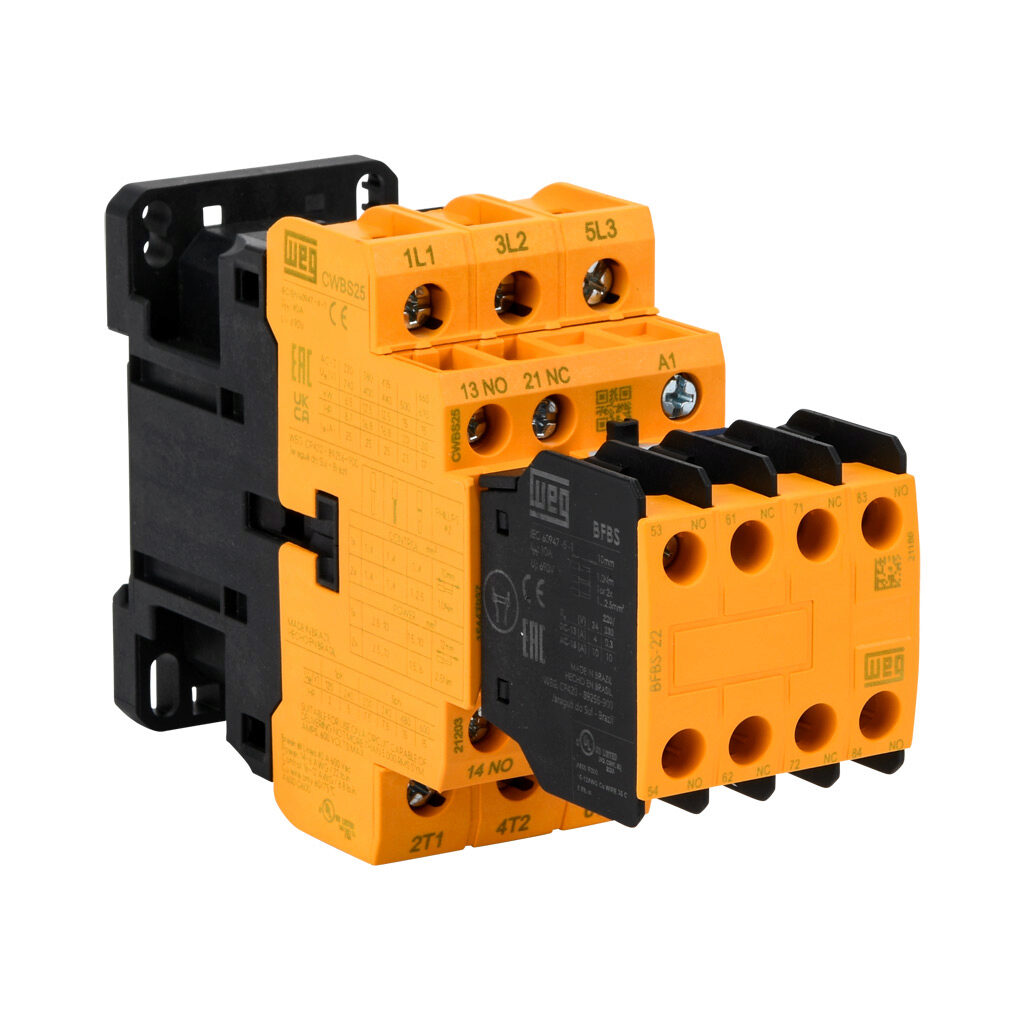

WEG CWBS25-33-30D15 15447937 Contactor, 25 A Rated, 3 NO Main Contact, 3-NO, 3-NC Aux Contact, 120V 50/60Hz
Item: CV6NTFModel: CWBS25-33-30D15Cross Ref: 15447937
7 In Stock
Ships within 2 days via
€202.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Actuator Type | Magnetic |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Contact Type | NO |
| Contactor Type | IEC Safety |
| Control Voltage | 120V |
| Depth | 5.19" |
| Electrical Lifespan | 1.6 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 3.09" |
| Horsepower Rating | 15 hp |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | Din Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Aux Contacts | 6 |
| No. Of Contacts | 3 NO |
| Number Of Contacts | 2 |
| Number Of Poles | 3 |
| Power Poles | NO |
| Product Datasheet | weg-cwbs12-33-30c03.pdf |
| Rated Amps In-ac-3 | 25A |
| Rated Insulation Voltage | 690V |
| Rated Operational Amps Ie Ac-1 | 40A |
| Rated Operational Voltage | 690V |
| Sccr Rating | 5 kA |
| Series | CWBS Series |
| Terminal Type | Screw |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 7.85 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 4.5 |
| Country of Origin | BR |
