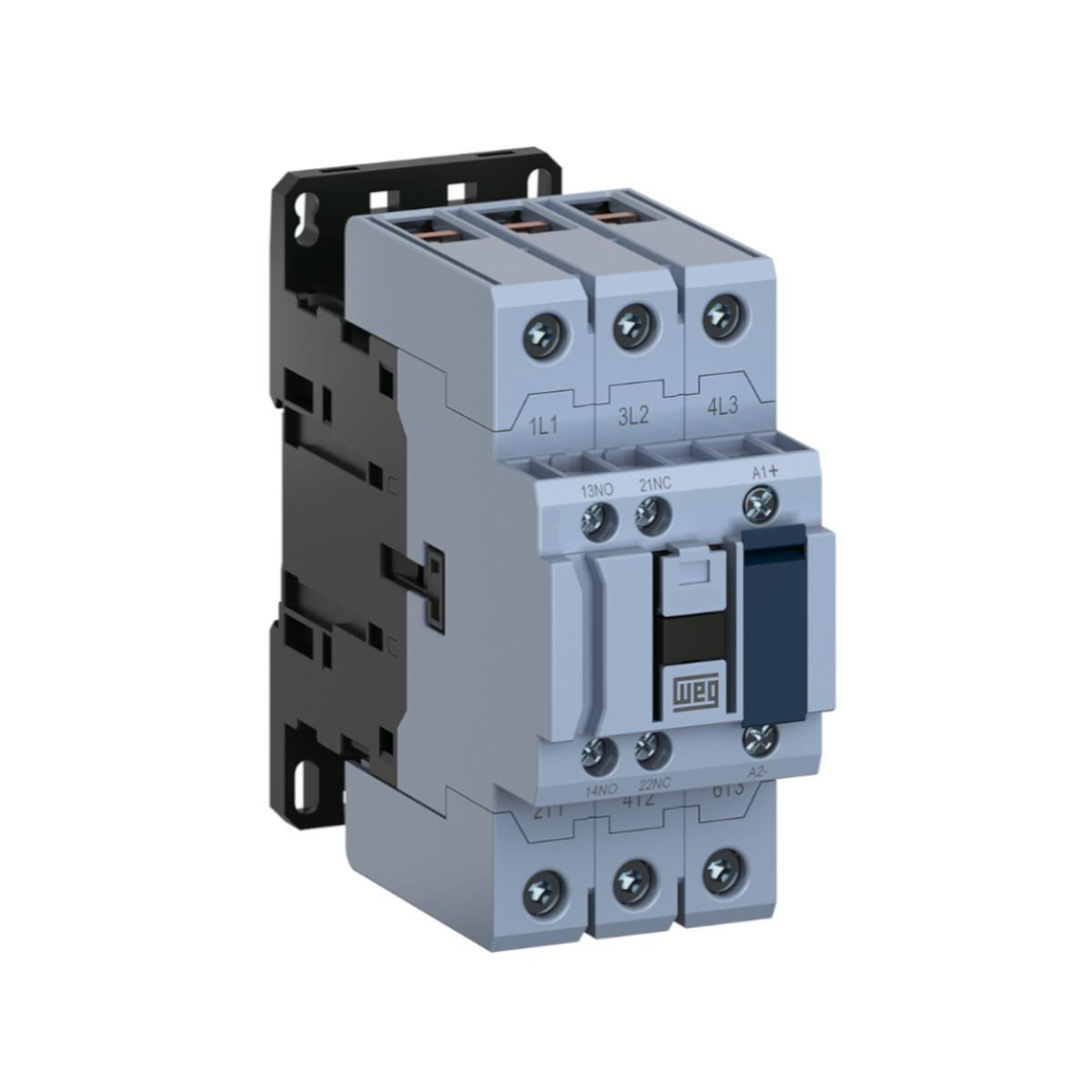

WEG CWB80-11-30D02 13860240 Contactor, 80 A, 3 No Contact, 24V, 50/60 Hz
Item: EC2FFMModel: CWB80-11-30D02Cross Ref: 13860240
7 In Stock
Ships within 2 days via
€188.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| All - Specific Ratings | UL508 |
| Amps | 80A |
| Coil Voltage | 24v Coil |
| Contact Rating | 24V @ 50/60 Hz |
| Degree Of Protection | IP20 |
| Degree Of Protection - Main Terminals | IP10 |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Depth | 120.7 mm , 4.75" |
| Electrical Lifespan | 1.2 Million |
| Height | 115 mm , 4.53" |
| Isolation Voltage Ui | 600/690V |
| Main Contact | 3 NO |
| Max. Rated Operational Frequency | 400 Hz |
| Mechanical Lifespan (ac) | 6 Million |
| Mechanical Lifespan (dc) | 6 Million |
| Min. Rated Operational Frequency | 25 Hz |
| Motor Control Type | IEC Contactors |
| Operation Temp. Ratings | -25°C to +55°C |
| Pole | 3 |
| Rated Amps In-ac-1 55 Deg C | 110A |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 1000V |
| Rated Operational Amps | 110A |
| Rated Operational Voltage | 1000V |
| Reference | CWB |
| Series | CWB Series |
| Storage Temperature Ratings | -55°C to +80°C |
| Terminal Type | Screw , Screw Terminals |
| Width | 54 mm , 54" |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 11.51 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 5.41 |
