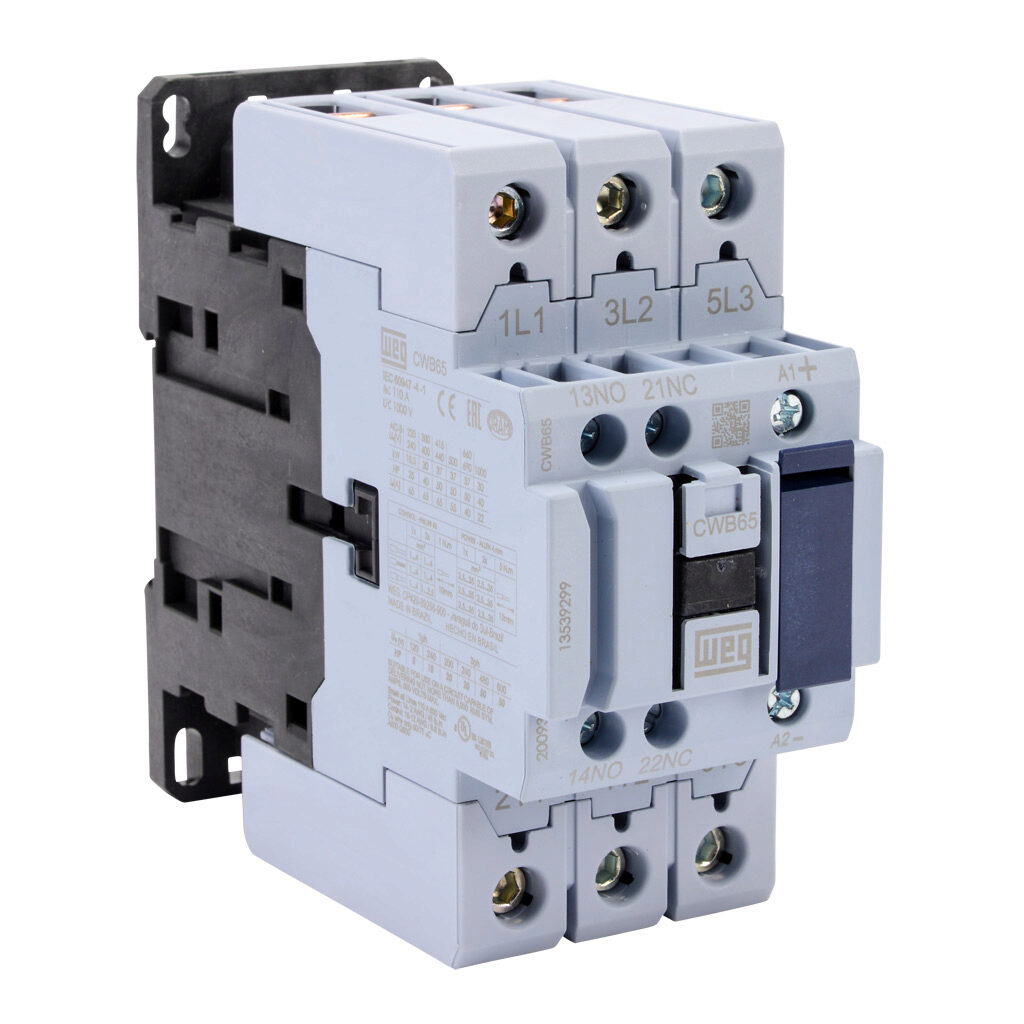

WEG CWB65-11-30C03 13539299 Contactor, 65 A Rated, 3 NO Main Contact, 1 NO, 1 NC Aux Contact, 24V DC
Get it by Tuesday, Sep 1
€293.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEC Magnetic Contactor |
| Actuator Type | Magnetic |
| Amps | 65A |
| Auxiliary Contacts | NO/NC |
| Coil Voltage | 24V DC |
| Contact Type | NO |
| Contactor Type | IEC |
| Control Voltage | 24V DC |
| Depth | 4 3/4" |
| Electrical Lifespan | 1.6 Million Cycles |
| Gross Weight | 2.125 lbs. |
| Height | 4.53" |
| Hp | 50 hp |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 6 Milion Cycles |
| Mechanical Lifespan (dc) | 6 Milion Cycles |
| Mechanically Interlocked | Yes |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | DIN Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 2 , 3 NO |
| No. Of Poles | 3 |
| Nominal Coil Voltage | 24V DC |
| Power Poles | NO |
| Product Datasheet | weg-cwbs12-33-30c03.pdf |
| Rated Insulation Voltage | 1000V |
| Rated Operational Amps | 110A |
| Rated Operational Voltage | 1000V |
| Reference | CWB |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 65A |
| Width | 2.13" |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 11.51 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 5.41 |
| Country of Origin | BR |
