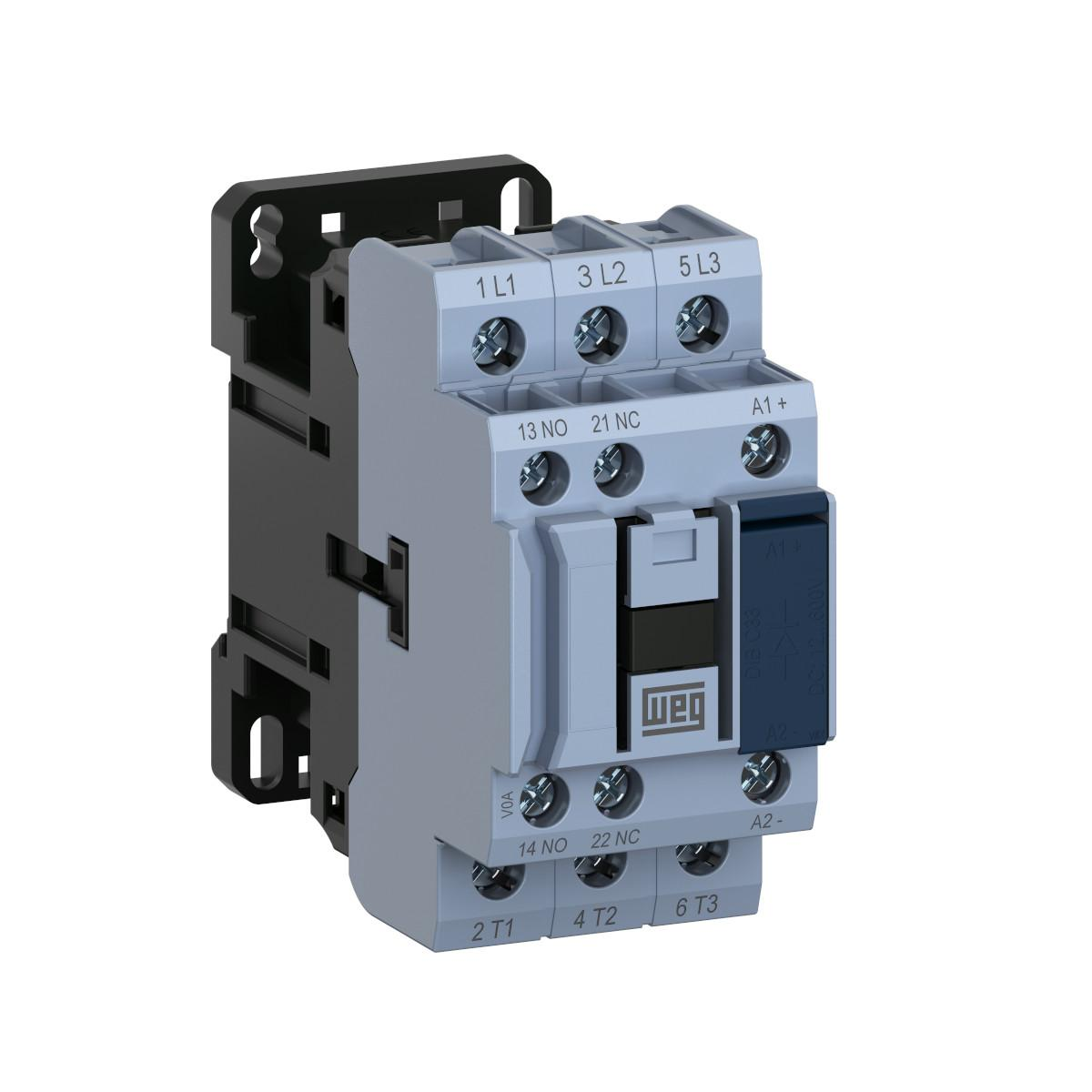

WEG CWB32-11-30C02 12686800 Contactor, 32 A, 3 No Contact, 12 VDC
Item: DH4ZFQModel: CWB32-11-30C02Cross Ref: 12686800
7 In Stock
Ships within 2 days via
€125.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Control Voltage | 12V DC |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Depth | 4.02" |
| Electrical Lifespan | 1.6 Million |
| Height | 85 mm |
| Item | 471751 |
| Main Contact | 3 NO |
| Max. Rated Operational Frequency | 400 Hz |
| Mechanical Lifespan (ac) | 10 Million |
| Mechanical Lifespan (dc) | 10 Million |
| Min. Rated Operational Frequency | 25 Hz |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 690V |
| Rated Operational Amps | 50A |
| Rated Operational Voltage | 690V |
| Reference | CWB |
| Terminal Type | Screw |
| Width | 45 mm |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 10.21 |
| Ship width (cm) | 4.5 |
