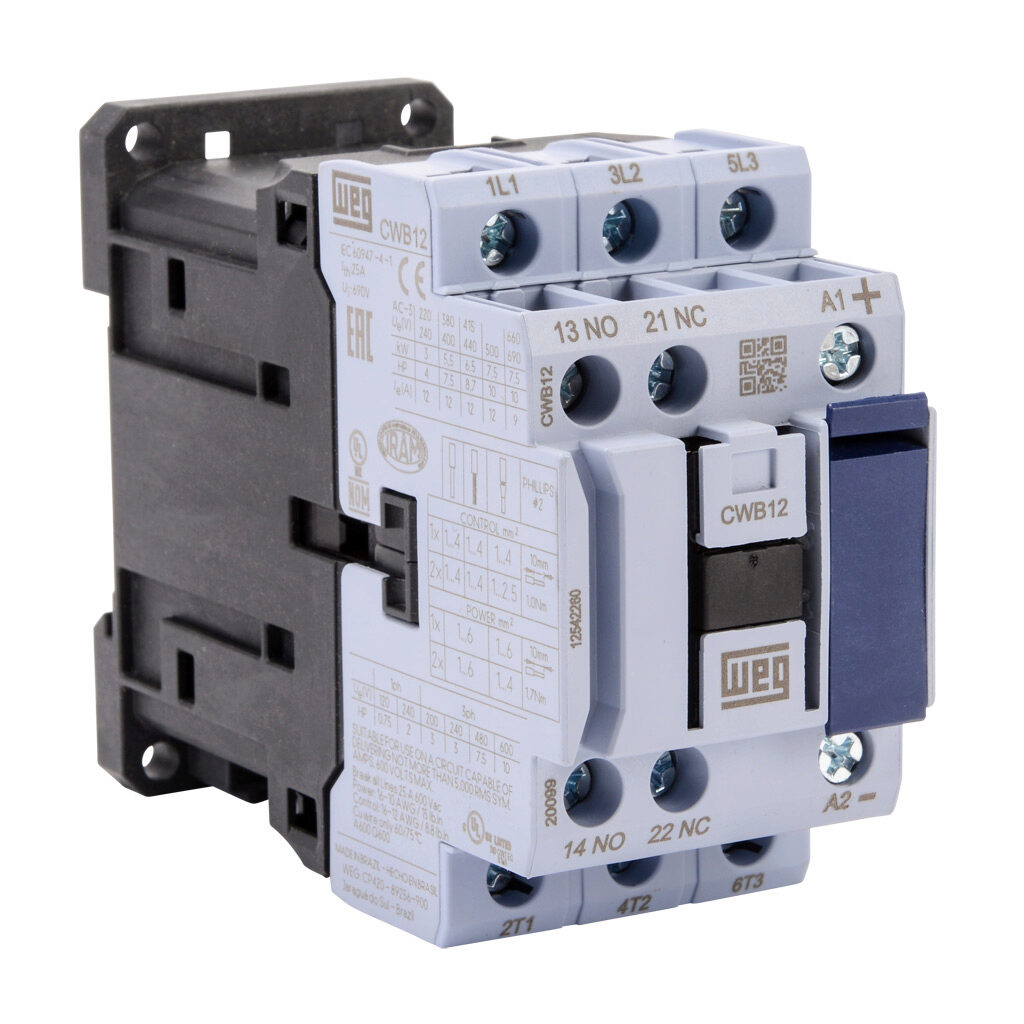

WEG CWB12-11-30C03 12542260 Contactor, 12 A Rated, 3 NO Main Contact, 1 NO, 1 NC Aux Contact, 24V DC
Get it by Tuesday, Sep 1
€87.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Actuator Type | Magnetic |
| Amps | 12A |
| Auxiliary Contacts | NO/NC |
| Coil Voltage | 24V DC |
| Contact Type | NO |
| Contactor Type | IEC |
| Control Voltage | 24V DC |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Depth | 3.77" |
| Electrical Lifespan | 2 Million Cycles |
| Gross Weight | 1.071 lbs. |
| Height | 3.09" |
| Hp | 7 1/2 hp |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | DIN Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 2 , 3 NO |
| No. Of Poles | 3 |
| Part/accessory Type | Contactor |
| Power Poles | NO |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 690V |
| Rated Operational Amps | 25A |
| Rated Operational Voltage | 690V |
| Reference | CWB |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.49 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 6.35 |
| Country of Origin | BR |
Product Variants
| Product | Model | Amps | Height | Control Voltage | No. Of Contacts | Rated Operational Amps | Min. Rated Operational Frequency | Max. Rated Operational Frequency | Mechanical Lifespan (ac) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CWB9-11-30C03 | 9A | 3.09" | 24V DC | 2 | 25A | 400 Hz | 25 Hz | 10 Milion Cycles | - | RFQ
|
 |
CWB18-11-30D15 | 18A | 3.09" | 120V | 2 | 32A | 400 Hz | 25 Hz | 10 Milion Cycles | €86.40 | |
 |
CWB32-11-30C03 | 32A | 3.35" | 24V DC | 2 | 50A | 400 Hz | 25 Hz | 10 Milion Cycles | €149.40 | |
 |
CWB12-11-30D15 | 12A | 3.09" | 120V | 2 | 25A | 400 Hz | 25 Hz | 10 Milion Cycles | €71.10 | |
 |
CWB25-11-30C03 | 25A | 3.35" | 24V DC | 2 | 40A | 400 Hz | 25 Hz | 10 Milion Cycles | €117.93 | |
 |
CWB18-11-30C03 | 18A | 3.09" | 24V DC | 2 | 32A | 400 Hz | 25 Hz | 10 Milion Cycles | €102.60 | |
 |
CWB25-11-30D02 | 25A | 3.35" | 24V | 2 | 40A | 400 Hz | 25 Hz | 10 Milion Cycles | €114.42 |
