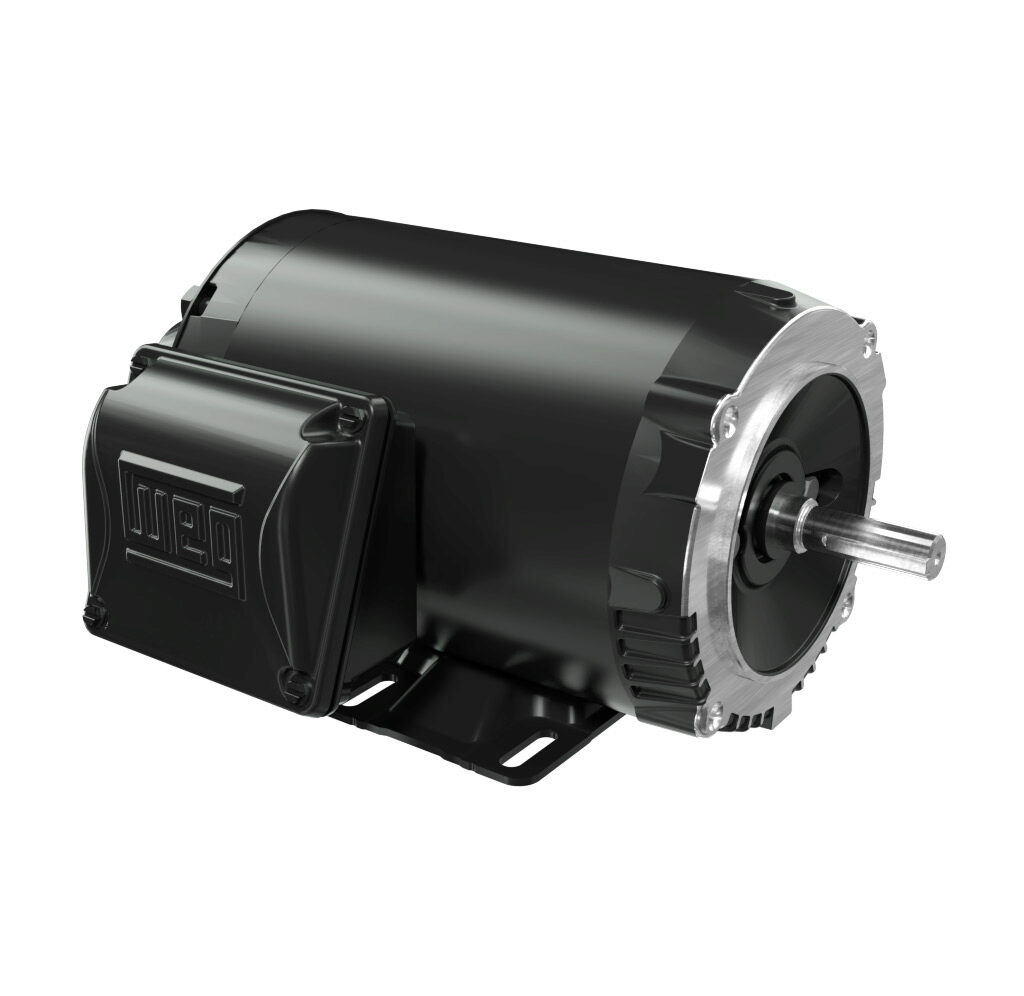

WEG .7518NT3FVD56C-S 15754025 AC Induction Motor, High-Performance Inverter Duty, 3/4Hp, 3-Phase, 230/460 VAC, 1800 rpm
Get it by Thursday, Dec 18
€1,038.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 450% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 81.5% |
| Efficiency At 1 % | 65% |
| Efficiency At 50 % | 43% |
| Efficiency At 75 % | 56% |
| Enclosure Type | Tenv |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 56CZ |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class H |
| Ip Rating | IP55 |
| L. R. Amps | 23.5/11.7A |
| Locked Rotor Torque | 350% |
| Lrc | 9.0X(Code N) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0906 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Speed | 1770 RPM |
| Motor Type | Induction |
| Mounting | Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1770 RPM |
| No Load Amps | 1.82/0.91A |
| No. Of Poles | 4 |
| Number Of Phases | 3 |
| Output Rating | 3/4 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Power Factor At 1 % | 81.5 |
| Power Factor At 50 % | 77 |
| Power Factor At 75 % | 77 |
| Product Datasheet | weg-5018nt3fvd56c-s.pdf |
| Rated Current | 2.61/1.3A |
| Rated Torque | 2.23 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 14.66 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 67.56 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Nameplate Rpm | Frequency | Service Factor | Voltage | Insulation Class | Efficiency | Break-down Torque | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

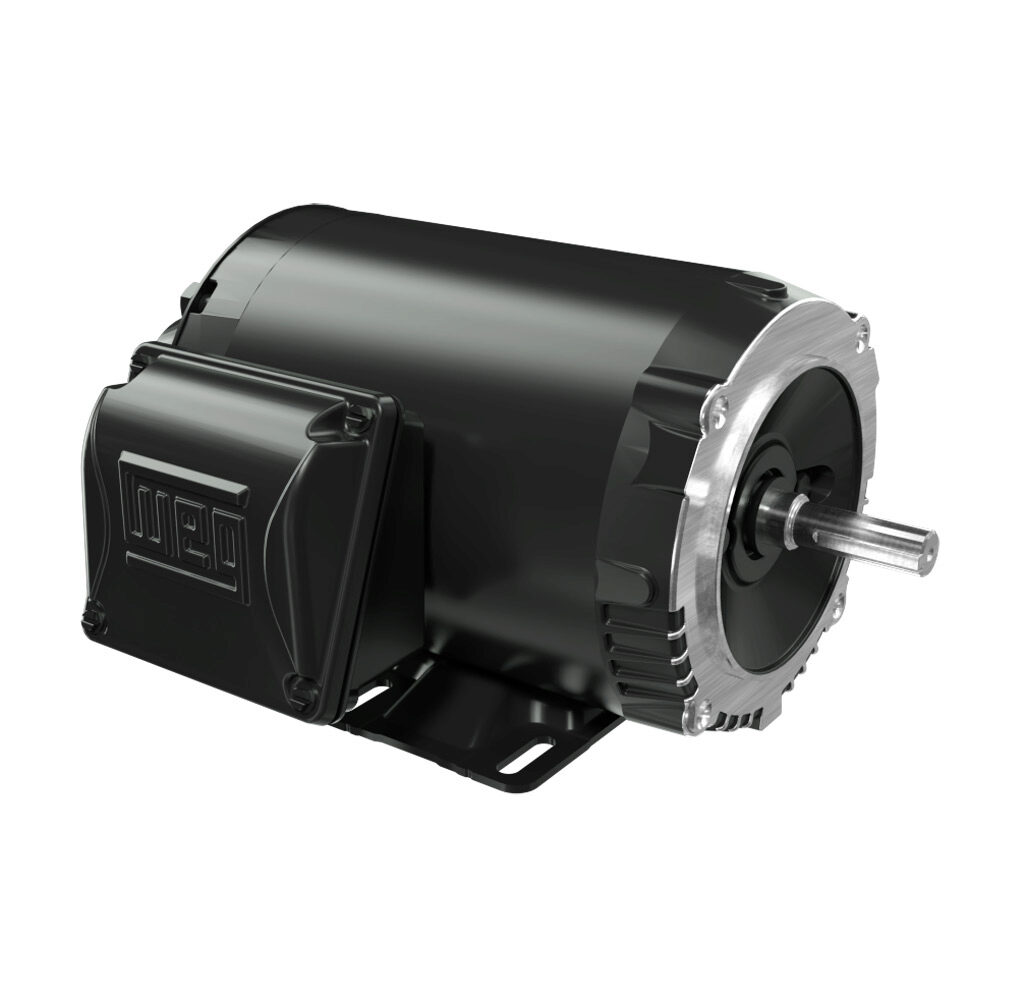

.5018NT3FVD56C-S | 1775 RPM | 60 Hz | 1 | - | Class H | 78.5% | 500% | 0.76/1.52A | €979.20 | |
 |

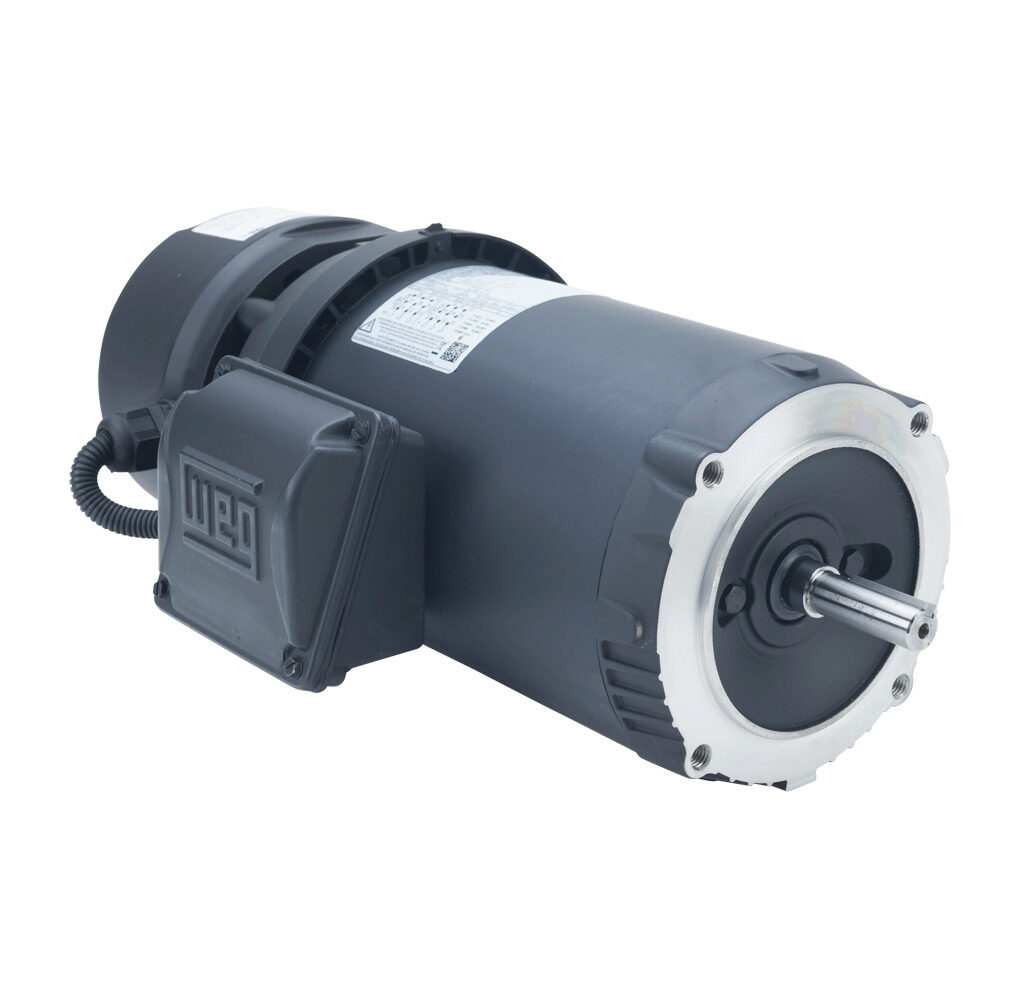

00118ET3EBM56CFL-S | 1765 RPM | 60 Hz | 1.15 | 230/460/190-220/380-415V AC | Class F | 85.5% | 300% | 1.78/0.89A | €2,516.40 | |
 |
00118ET3EBM56C-S | 1765 RPM | 50/60 Hz | 1.15 | 230/460/190-220/380-415V AC | Class F | 85.5% | 300% | 1.78/0.89A | - | RFQ
|
 |

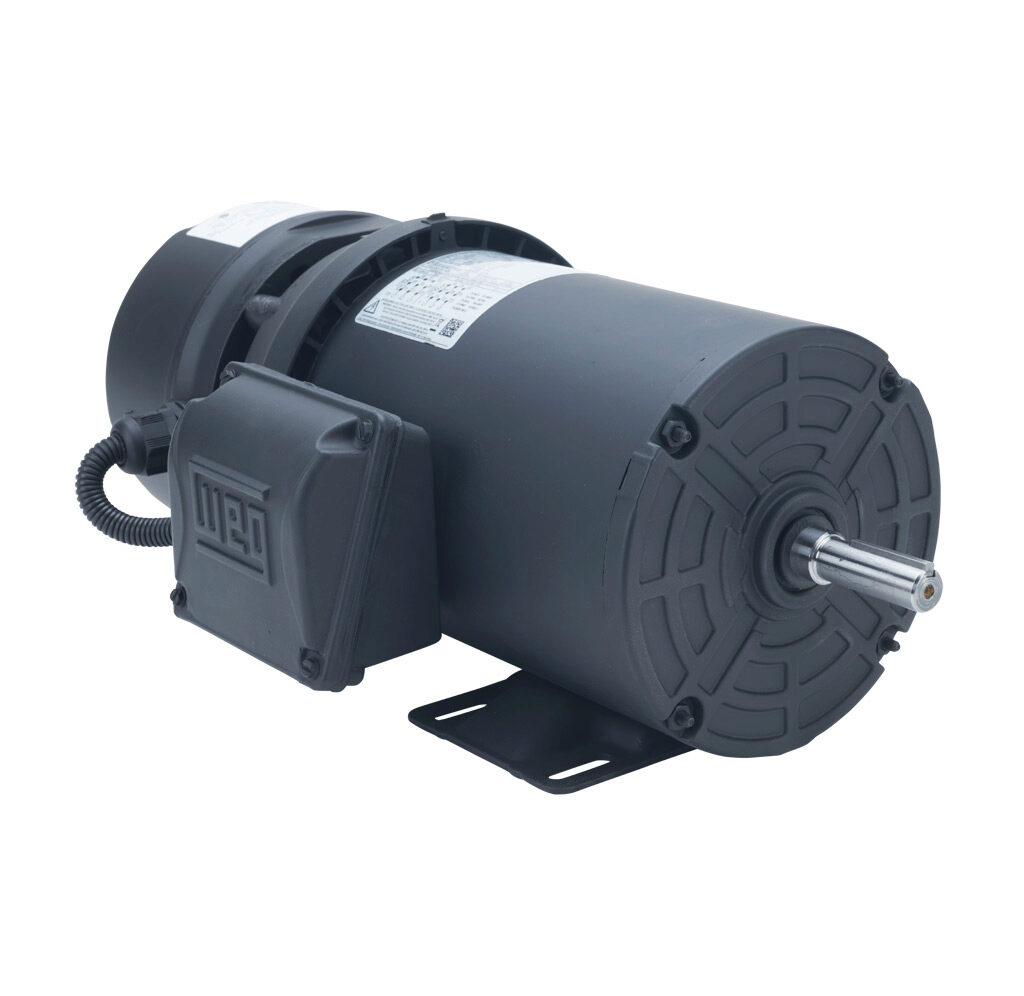

00118ET3EBM56-S | 1765 RPM | 60 Hz | 1.15 | 230/460/190-220/380-415V AC | Class F | 85.5% | 300% | 1.78/0.89A | €2,453.40 | |
 |

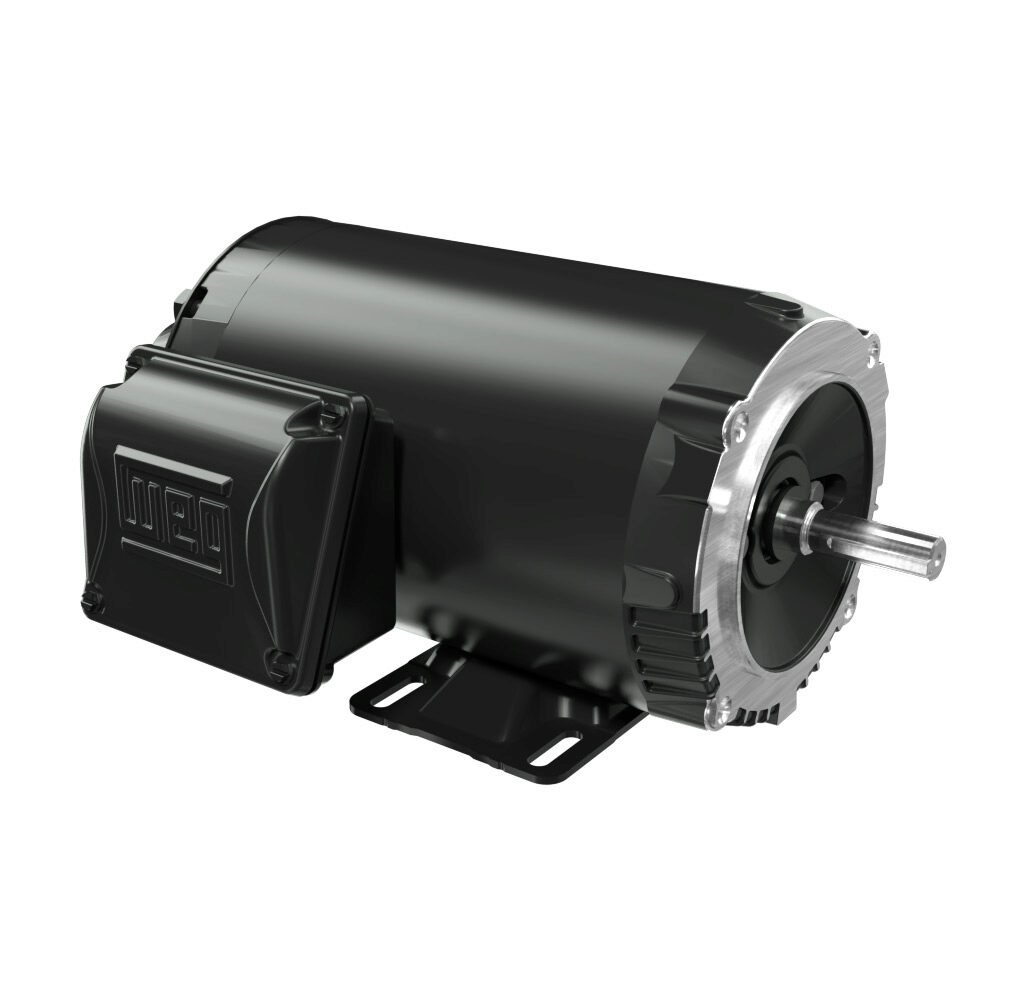

00118NT3FVD56C-S | 1765 RPM | 60 Hz | 1.15 | 230/460V AC | Class H | 85.5% | 300% | 1.78/0.89A | €1,112.40 | |
 |

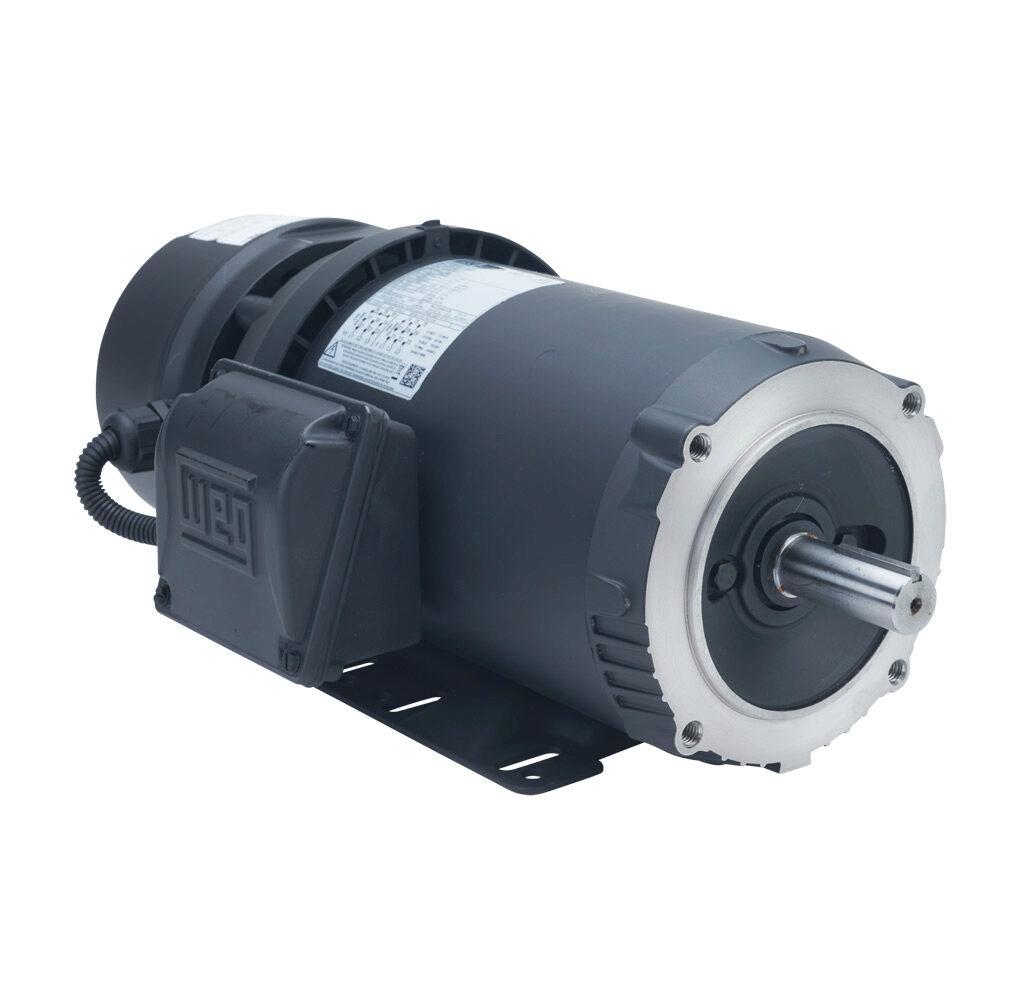

00158ET3EBM145TC-S | 1750 RPM | 50/60 Hz | 1.15 | 230/460/190-220/380-415V AC | Class F | 86.5% | 300% | 2.17/1.08A | - | RFQ
|
 |

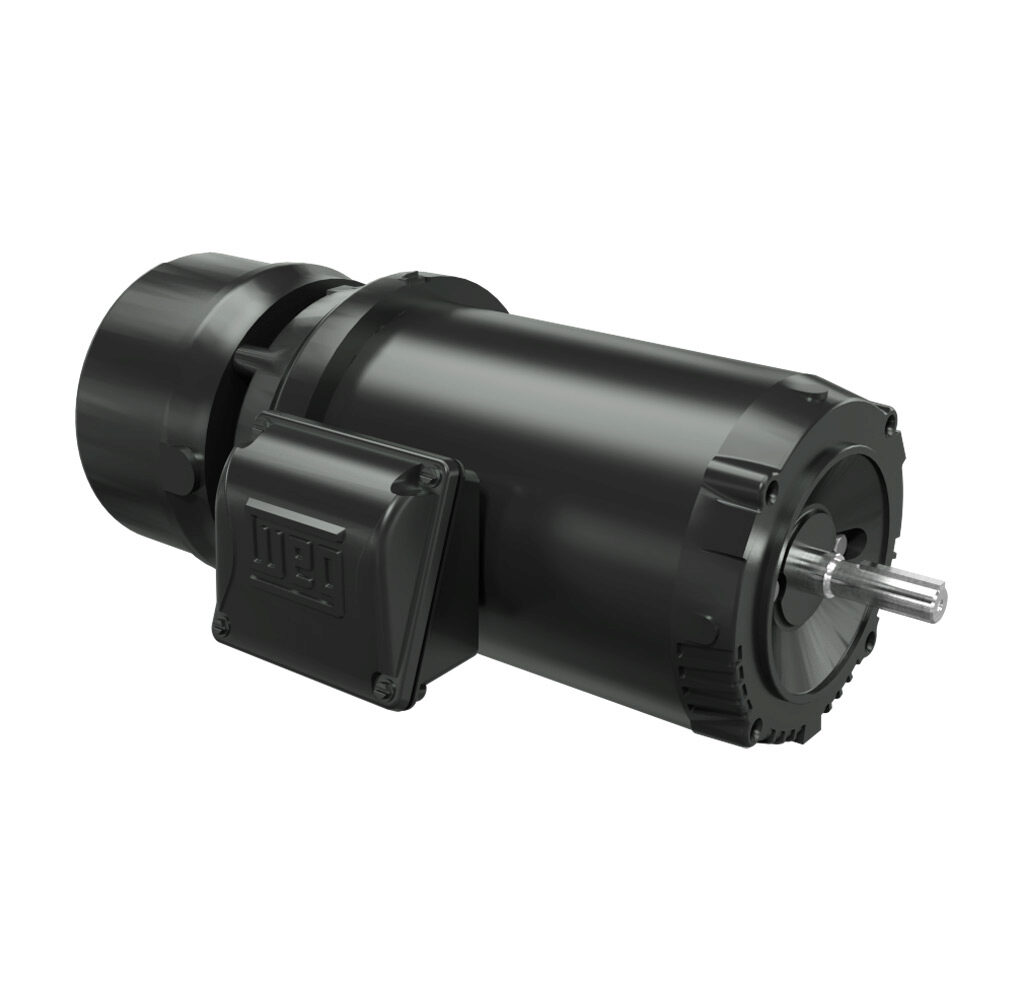

00158ET3EBM56CFL-S | 1750 RPM | 60 Hz | 1.15 | 230/460/190-220/380-415V AC | Class F | 85.5% | 300% | 2.17/1.08A | €2,158.99 |
