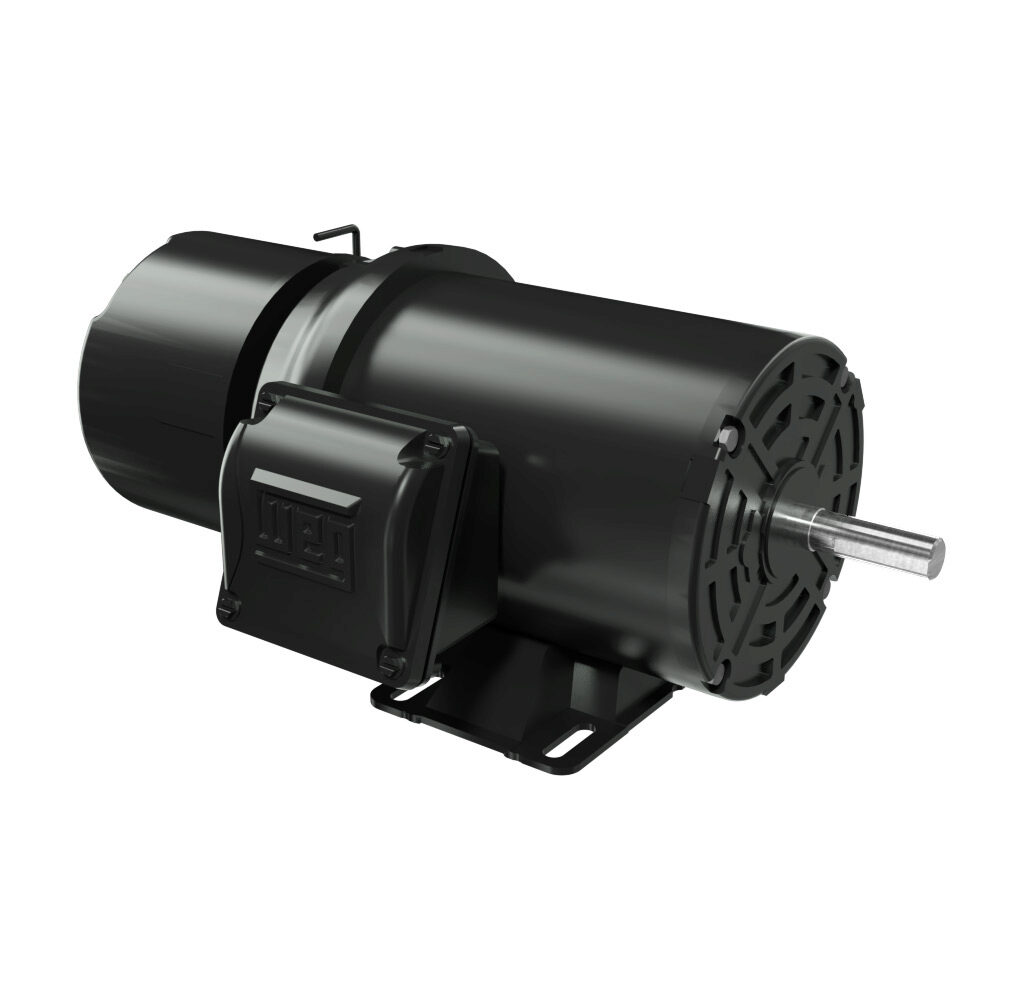

WEG .7518ES3EBMW56-S 14593617 Brake Motor, 0.75 HP, 1800 RPM, W56 Frame, 415 V Rated
Get it by Monday, Apr 6
€2,122.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Brake Input Voltage | 190/208-230/380/460V , 208-230/460/190/380V AC |
| Brake Ip Rating | IP23 |
| Brake Torque Rating | 5.9 lbs.-ft. |
| Brake Voltage Rating | 208-230/460V AC |
| Break-down Torque | 290% |
| Breakdown Torque | 290% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 10:1 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 75.5% |
| Efficiency @ 100% | 75.5% |
| Efficiency @ 50% | 68% |
| Efficiency @ 75% | 74% |
| Efficiency At 1 % | 75% |
| Efficiency At 50 % | 52% |
| Efficiency At 75 % | 65% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Aluminum |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | W56 |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 12 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Includes | Stearns 104817100KQ Brake Assembly |
| Insulation Class | Class F |
| Integrated Brake | Yes |
| Ip Rating | IP55 |
| L. R. Amps | 17.6-15.9/7.93A |
| L.r. Amperes | 7.93/15.9-17.6A |
| Locked Rotor Time (cold) | 21 sec. |
| Locked Rotor Time (hot) | 12 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 6.5X(Code K) |
| Main Terminal Box Hole | 1/2" |
| Main Terminal Box Hole Size | 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Manual Brake Release | Yes |
| Moment Of Inertia | 0.0479 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0479 lbs.-sq. ft. |
| Motor Application | General Purpose, Inverter Rated And Brake |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56 |
| Motor Speed | 1730 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal |
| Nameplate Rpm | 1730 RPM |
| No Load Amps | 0.892/1.54-1.78A , 1.54-1.78/0.892A |
| No. Of Poles | 4 |
| Noise Level | 50 dBA |
| Number Of Phases | 3 |
| Output | 3/4 hp |
| Output Rating | 3/4 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.52 |
| Power Factor 75% | 0.65 |
| Power Factor At 1 % | 75.5 |
| Power Factor At 50 % | 68 |
| Power Factor At 75 % | 74 |
| Power Factor_100% | 0.75 |
| Product Datasheet | weg-2518es3ebmw56cfl-s.pdf |
| Rated Current | 1.22/2.44-2.7A , 2.7-2.44/1.22A |
| Rated Speed | 1730 RPM |
| Rated Torque | 2.28 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 3.89% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/208-230/380-415/460V , 208-230/460/190-220/380-415V AC |
| Voltage Rating | 208-230/460V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 13.32 |
| Ship height (cm) | 26.97 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 26.31 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Nameplate Rpm | Frequency | Frame | Efficiency | Break-down Torque | No Load Amps | Mounting | Flange Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

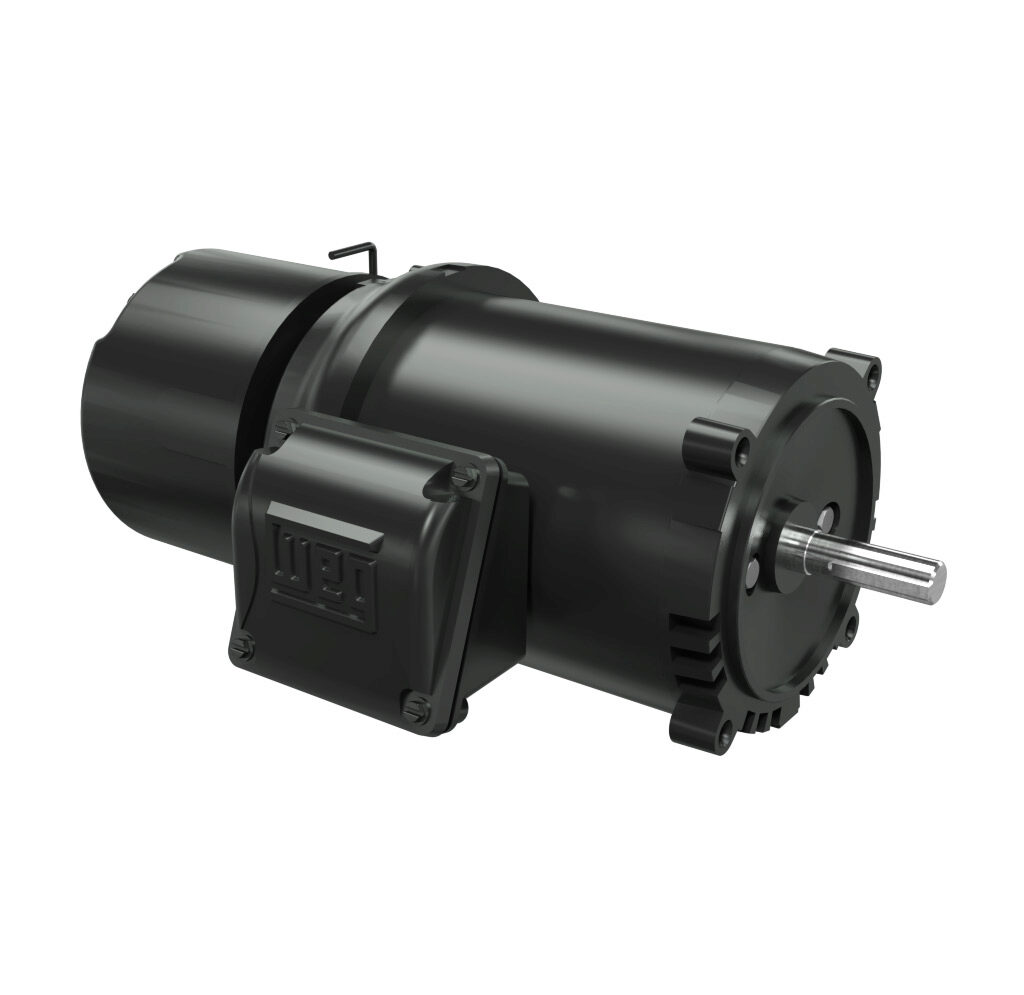

.2518ES3EBMW56CFL-S | 1735 RPM | 50/60 Hz | W56C | 66% | 290% | 0.716-0.83/0.415A | Footless | C | €1,575.00 | |
 |

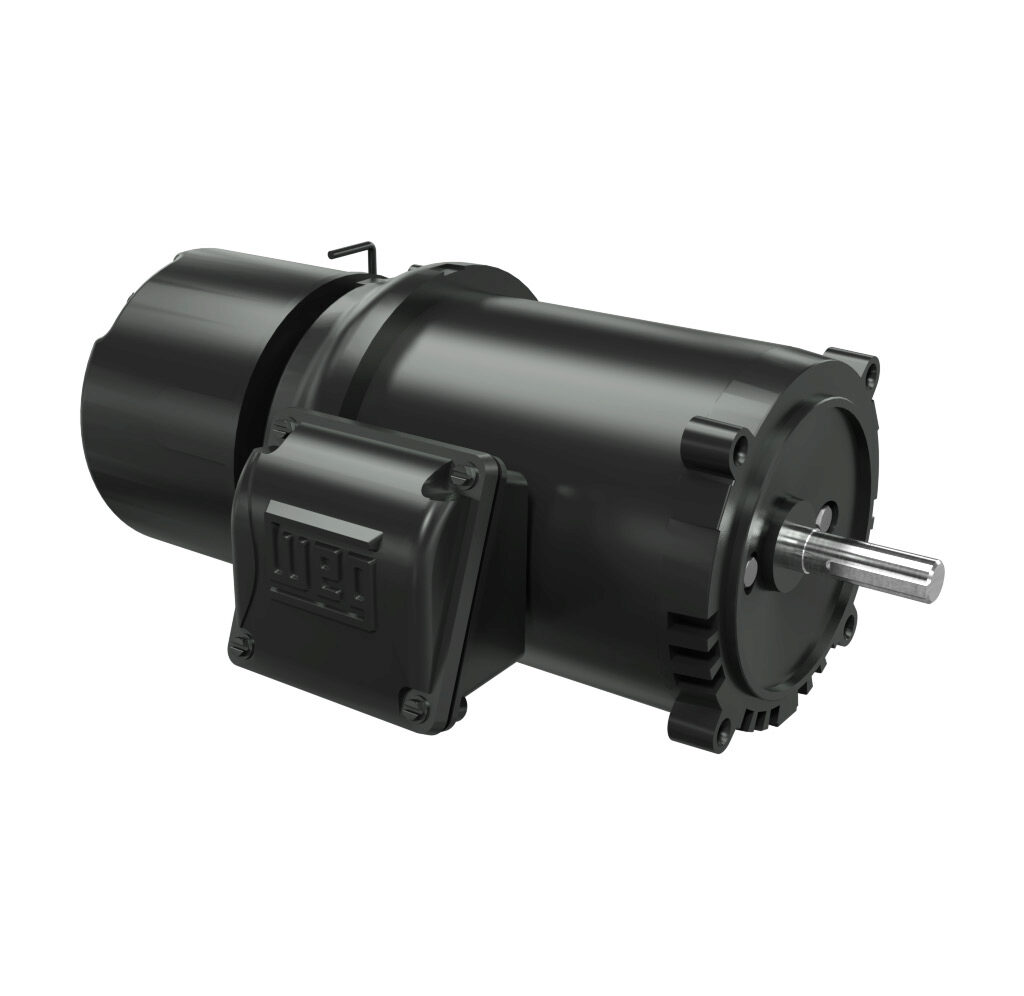

.3318ES3EBMW56CFL-S | 1730 RPM | 60 Hz | W56C | 68% | 270% | 0.919-1.07/0.533A | Footless | C | €1,210.97 | |
 |

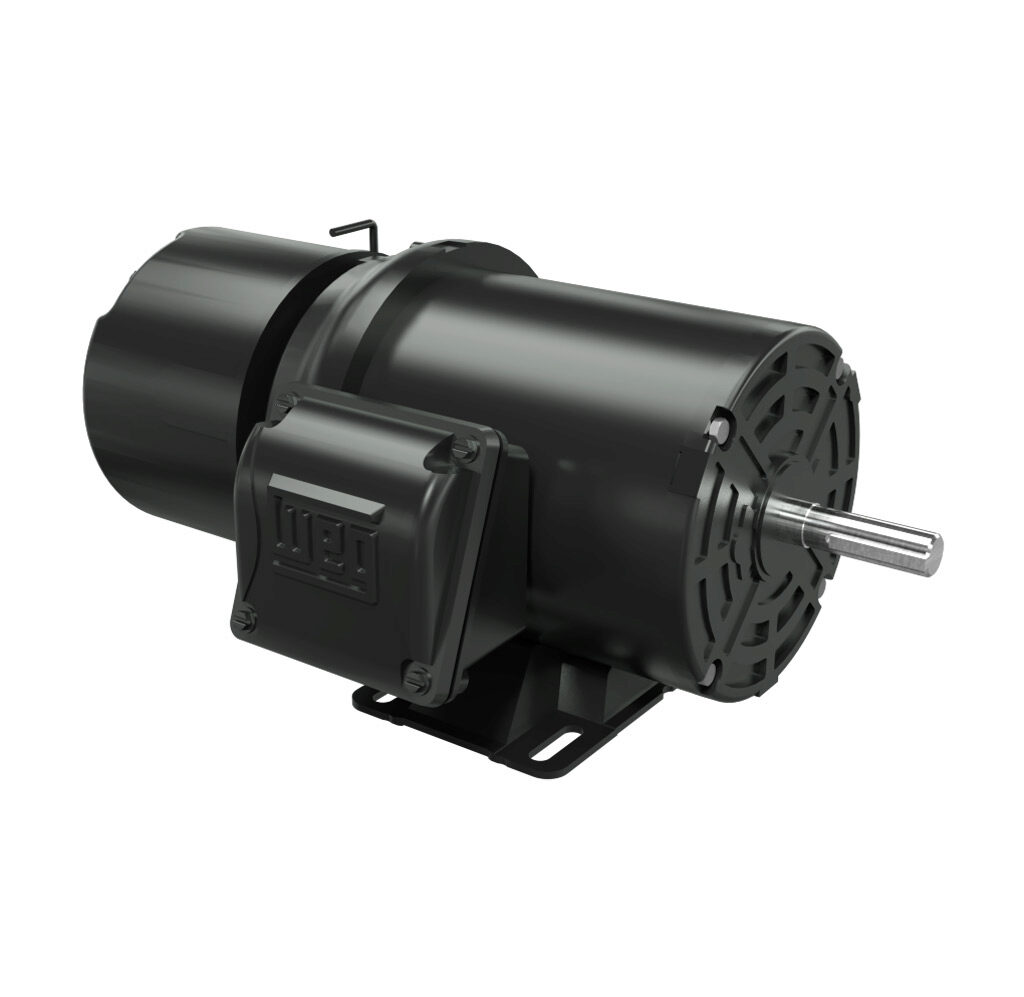

.3318ES3EBMW56-S | 1730 RPM | 50/60 Hz | W56 | 68% | 270% | 0.919-1.07/0.533A | Foot Mounted | Without | €1,594.80 | |
 |

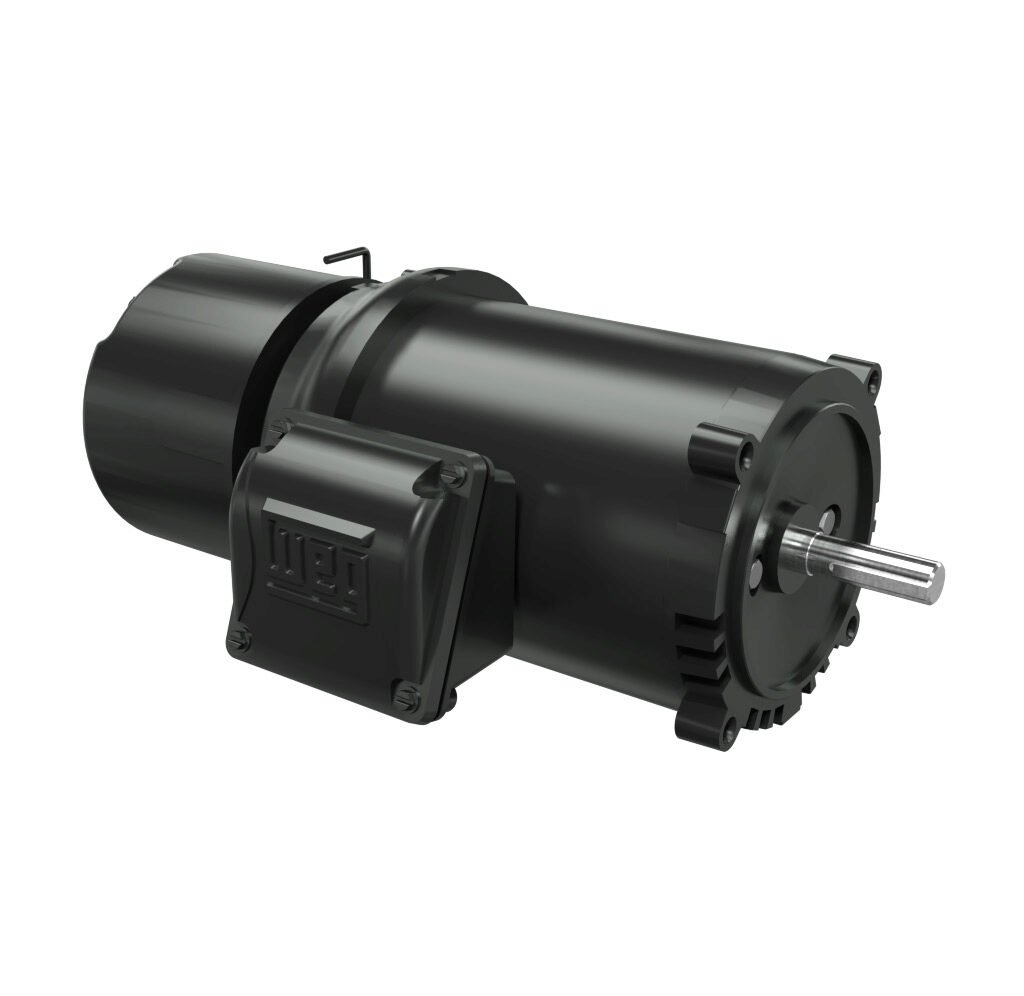

.5018ES3EBMW56CFL-S | 1730 RPM | 60 Hz | W56C | 72% | 280% | 1.2-1.4/0.698A | Footless | C | €1,864.80 | |
 |

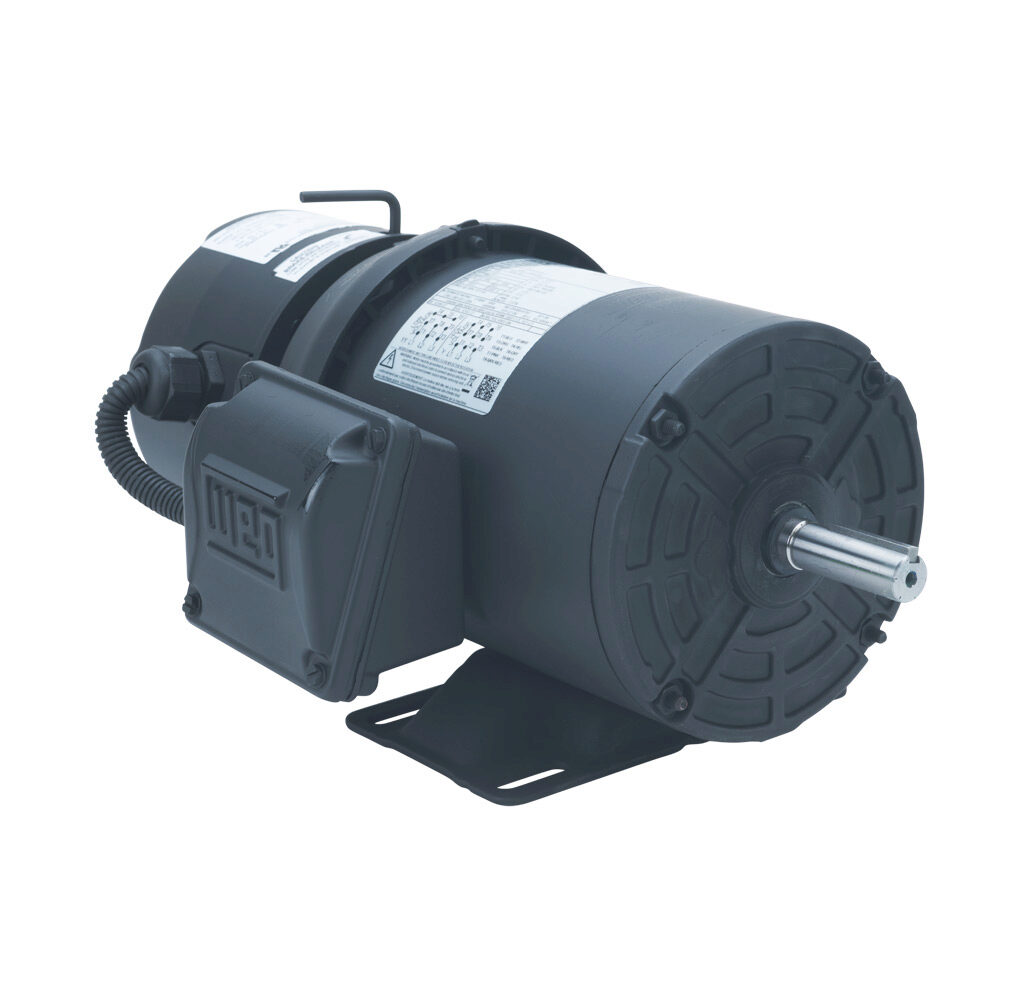

.5018ES3EBMW56-S | 1730 RPM | 60 Hz | W56 | 72% | 280% | 1.2-1.4/0.698A | Foot Mounted | Without | €1,318.35 | |
 |

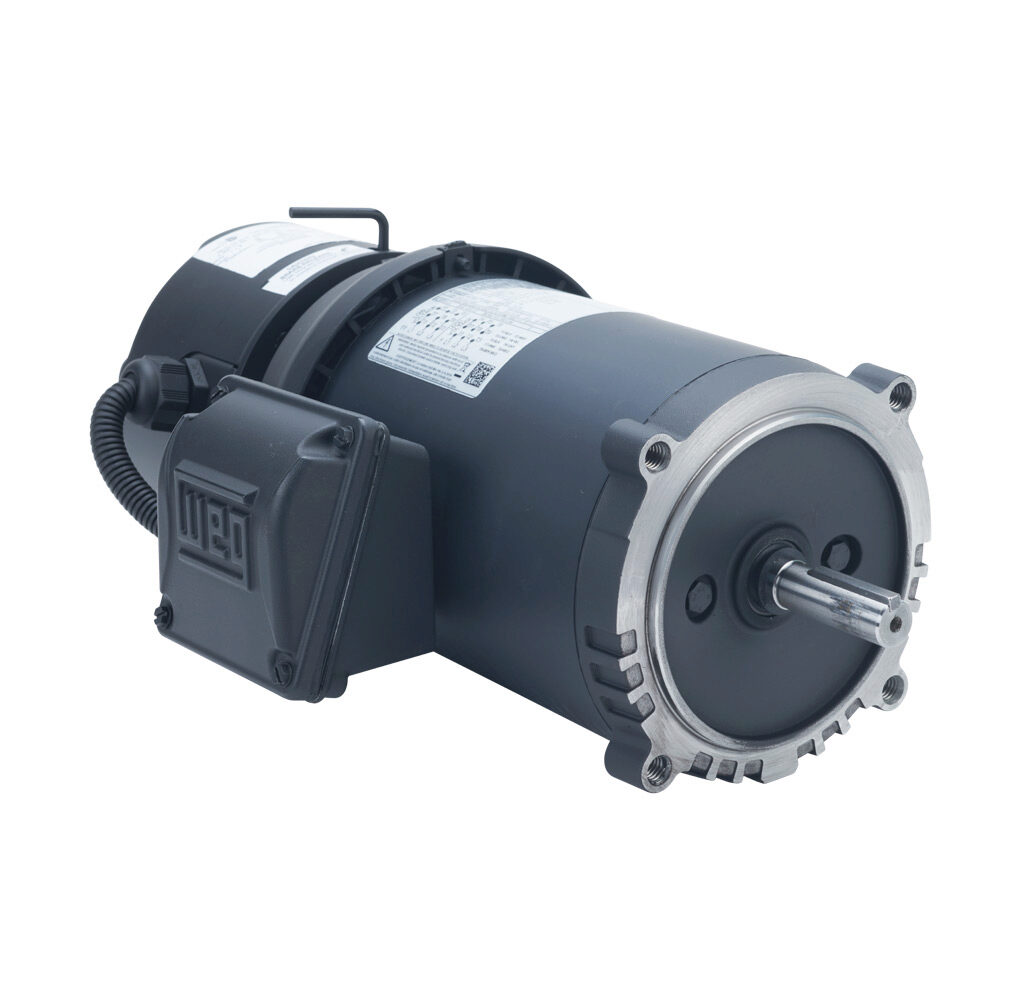

.7518ES3EBMW56CFL-S | 1730 RPM | 50/60 Hz | W56C | 75.5% | 290% | 1.54-1.78/0.892A | Footless | C | €2,183.40 |
