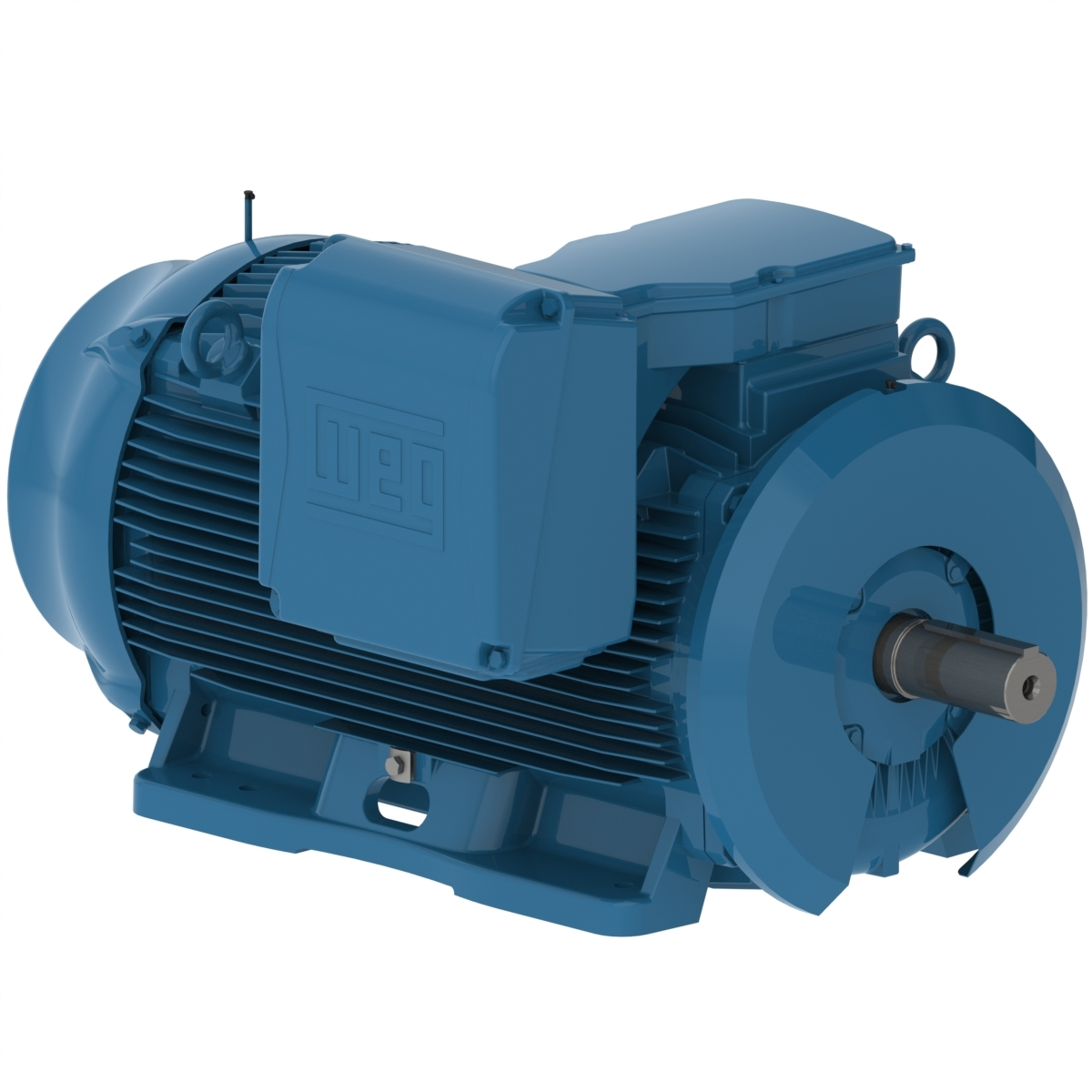

WEG 35009ET3GKD586/7-W22 Electric Motor, 350Hp, 60Hz, 900 Rpm | BB9KPV

WEG 35009ET3GKD586/7-W22 13500651 Electric Motor, 350Hp, 60Hz, 900 Rpm

Item: BB9KPVModel: 35009ET3GKD586/7-W22Cross Ref: 13500651
Check Availability
In Stock

Get it by Tuesday, Sep 1

€74,316.66 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 448A
Balancing Method 1/2" Key
Bearing Cap Yes
Cold Locked Rotor Time 61 sec.
Connection Cables Quantity 12
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 58% , 94.5%
Efficiency 75% 95.8%
Efficiency @ 1 % 76%
Efficiency @ 100% 95.8%
Efficiency @ 75 % 69%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Flange Type Without
Frame 586/7T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 34 sec.
Impregnation Method Constant Resin Flow
Insulation Class Class F
Locked Rotor Time (cold) 61 sec.
Locked Rotor Time(hot) 34 sec.
Locked Rotor Torque 200%
Lrc 7.9X(Code K)
Main Terminal Box Hole 2"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 484 lbs.-sq. ft.
Moment Of Inertia (j) 484 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 895 RPM
Mounting F-1 , Foot Mounted
No Load Amps 250A
No. Of Holes 2
No. Of Poles 8
Noise Level 75 dBA
Output 350 hp
Output Rating 350 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 203A (ISO 12944-C2)
Phase 3
Power Factor 100% 0.76
Power Factor 50% 0.58
Power Factor 75% 0.69
Power Factor @ 1 % 95.8
Power Factor @ 50 % 94.5
Power Factor @ 75 % 95.8
Regreasing System Extended, At Drive End And Non Drive End , Extended, At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1
Shaft Locking Device With
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 0.56%
Space Heater Voltage 200-240V , 200-240V AC
Speed 895 RPM , 900 RPM
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2050 lbs.-ft.
Tropicalized Painting Without

Shipping Info:

Ship weight (kg) 2158.65
Ship height (cm)25.4
Ship length (cm)50.8
Ship width (cm)25.4
Country of OriginUS
