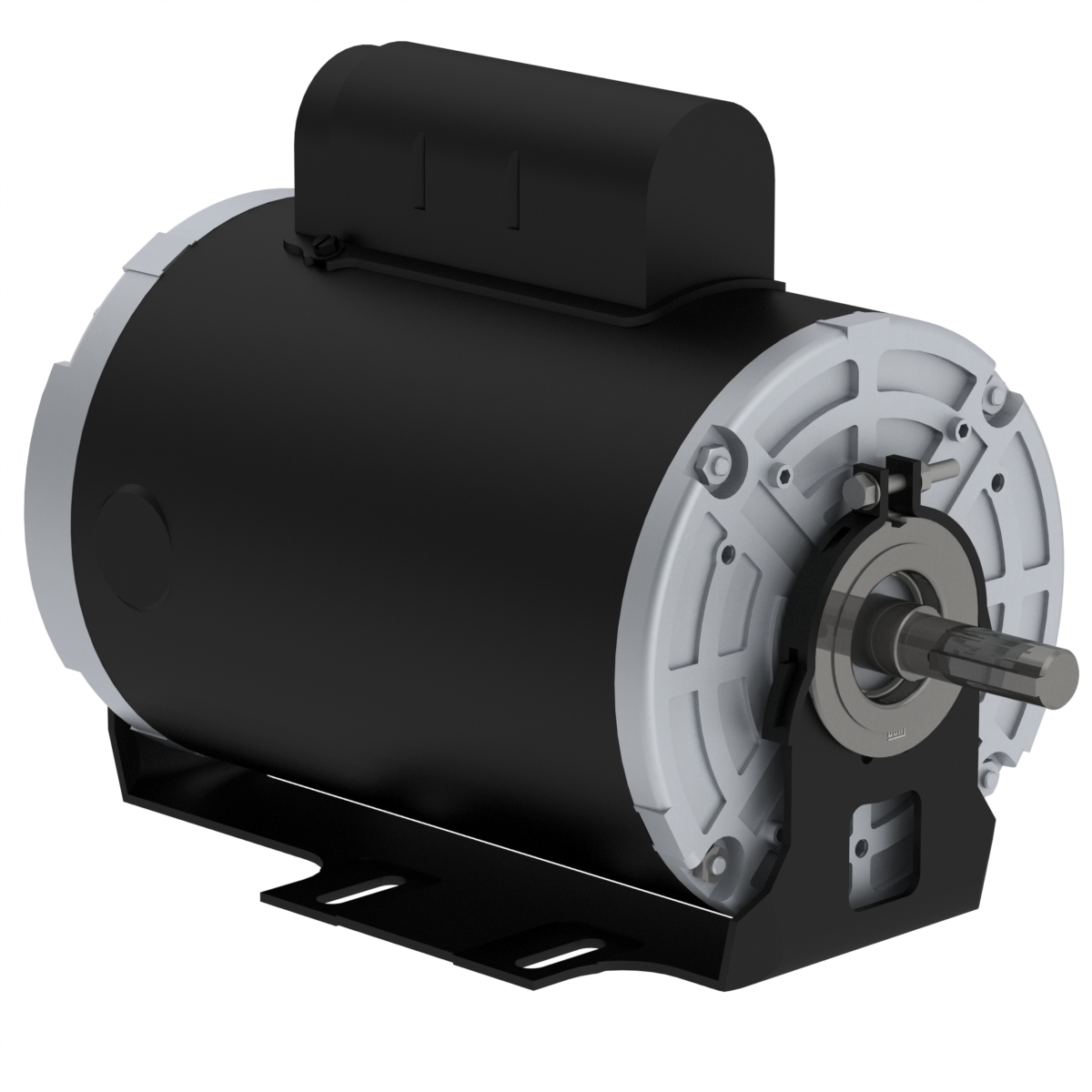

WEG .3318OS1PRBOW56-S 14421129 Air Handling Motor, Fan and Blower, 0.33 HP, 0.25 kW, 1800 RPM, W56 Frame, 277 V
Get it by Monday, Aug 24
€343.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.74A |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 320% |
| Cold Locked Rotor Time | 30 sec. |
| De Bearing Seal | No |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | W56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 13.9A |
| Locked Rotor Time(hot) | 17 sec. |
| Locked Rotor Torque | 320% |
| Lrc | 8x(Code N) |
| Moment Of Inertia | 0.0451 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 1.25A |
| No. Of Poles | 4 |
| Noise Level | 50 dBA |
| Output Rating | 0.25 kW |
| Overload Protector (phenolic) | Automatic |
| Painting | Only Primer |
| Rated Speed | 1745 RPM |
| Rated Torque | 0.993 lbs.-ft. |
| Rated Voltage | 277V |
| Resilient Base | With |
| Rotation | CW And CCW |
| Service Factor | 1.35 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 277V |
Shipping Info:
| Ship weight (kg) | 7.92 |
