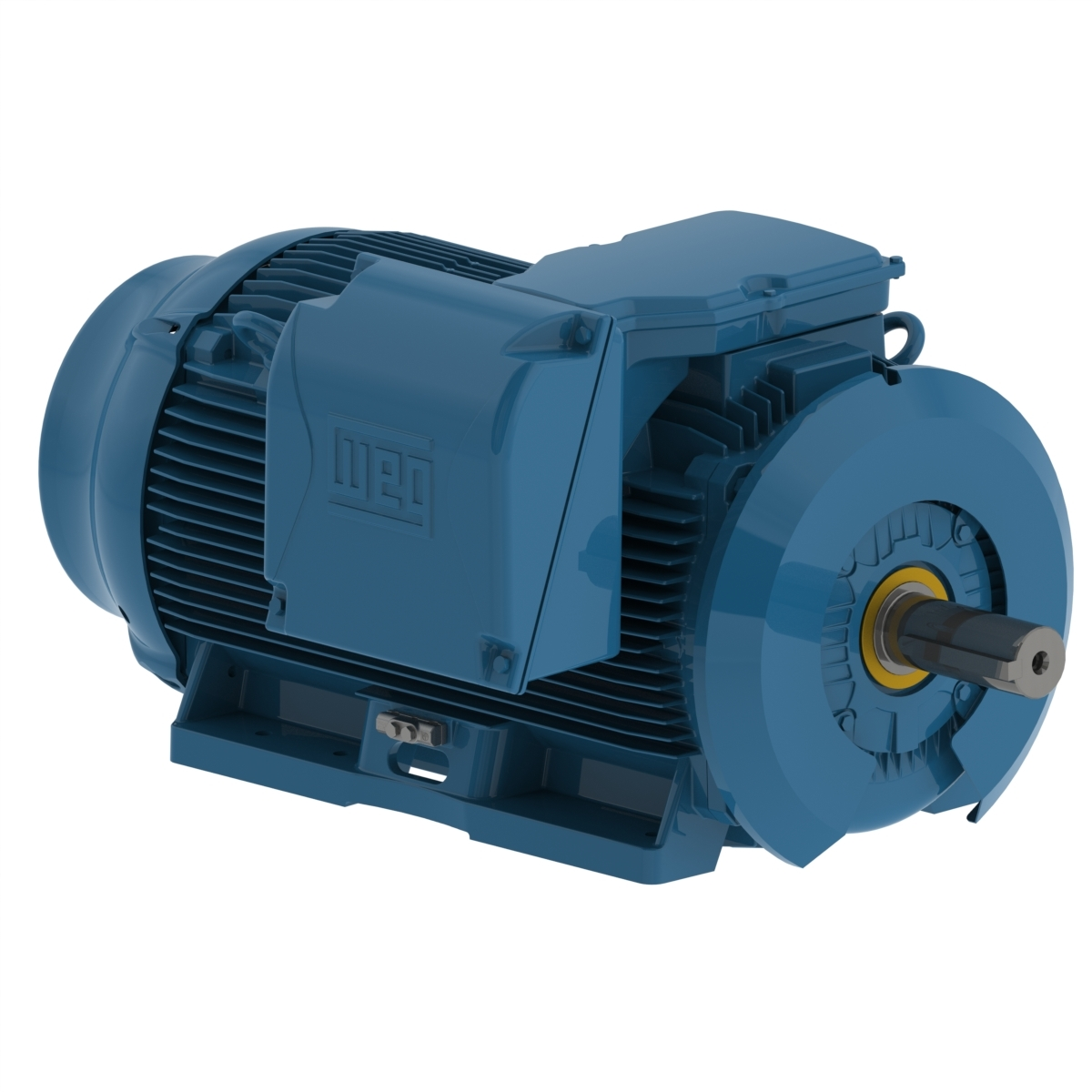

WEG 30018ST3HIERB449T-W2 15371907 AC Motor, 1800 rpm, 60 Hz, 575 V, 300 HP
Get it by Tuesday, Aug 25
€42,168.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 264A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 229% |
| Cold Locked Rotor Time | 28 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro, Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Cast Iron |
| Fan Material | Bronze |
| Flange | Without |
| Foot Flatness | 0.127 mm |
| Frame | 447/9t |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| Joints Seal | Molykote |
| L. R. Amps | 1716A |
| Locked Rotor Time(hot) | 16 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 6.5x(Code G) |
| Main Terminal Box Hole | 2 x NPT 3" |
| Material | Carbon Steel |
| Moment Of Inertia | 89.6 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | Inpro, Seal |
| No Load Amps | 76A |
| No. Of Poles | 4 |
| Noise Level | 75 dBA |
| Output Rating | 220 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1780 RPM |
| Rated Torque | 885 lbs.-ft. |
| Rated Voltage | 575V |
| Regreasing System | Extended In Stainless Steel, At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Locking Device | With |
| Shaft Material | SAE 4140 Carbon Steel |
| Slip | 1.11% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | According To IEEE-841 (96H) |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 1334.7 |
