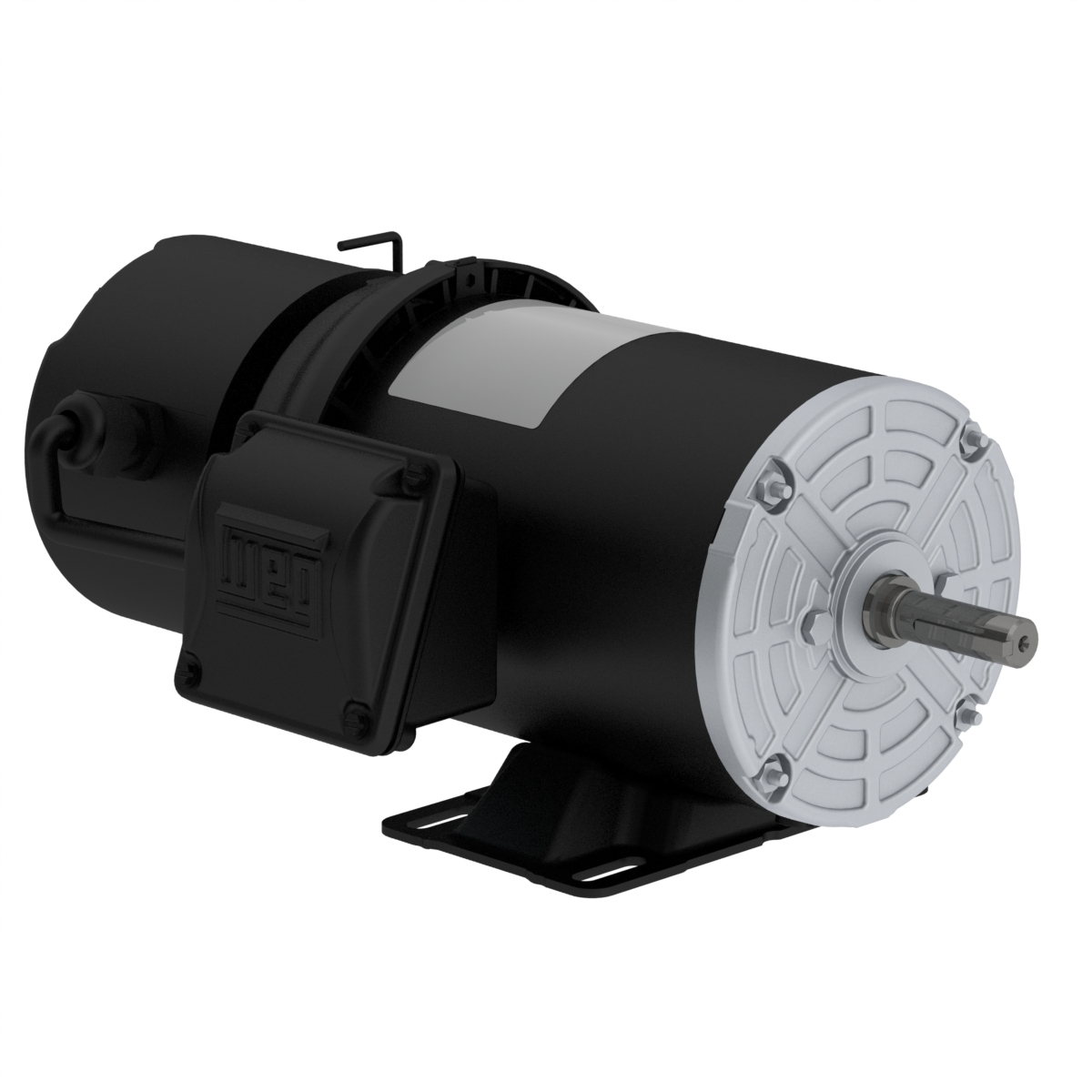

WEG .2518ES3EBMW56-S 14593011 Brake Motor, 0.25 HP, 1800 RPM, W56 Frame, 415 V Rated
Get it by Monday, Aug 24
€1,107.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 0.567A |
| Application | Brakemotor |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Body Design Material | Rolled Steel |
| Bolt Material | Carbon Steel |
| Brake | 3 lbs.-ft. |
| Brake Input Voltage | 208-230/460/190/380V |
| Break Down Torque | 270% |
| Cold Locked Rotor Time | 50 sec. |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 2:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 66% |
| Enclosure Iec | IP55 |
| Enclosure Nema | Tefc |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Aluminum |
| Fan Material | Plastic |
| Flange | Without |
| Frame | W56 |
| Frame Material | Rolled Steel |
| Frame Size Nema | W56 |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 2.66A |
| Locked Rotor Time(hot) | 28 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 4.7x(Code J) |
| Main Terminal Box Hole | 1/2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.028 lbs.-sq. ft. |
| Mount Arrangement | F1 |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 0.481A |
| No. Of Poles | 4 |
| Noise Level | 49 dBA |
| Output Rating | 0.18 kW |
| Output Speed | 1735/1410 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1430 RPM |
| Rated Torque | 0.918 lbs.-ft. |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15, 1.15 (1 @ 208V) |
| Shaft Grounded Sgr | Not Available |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 4.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460/190-220/380-415V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 10.44 |
