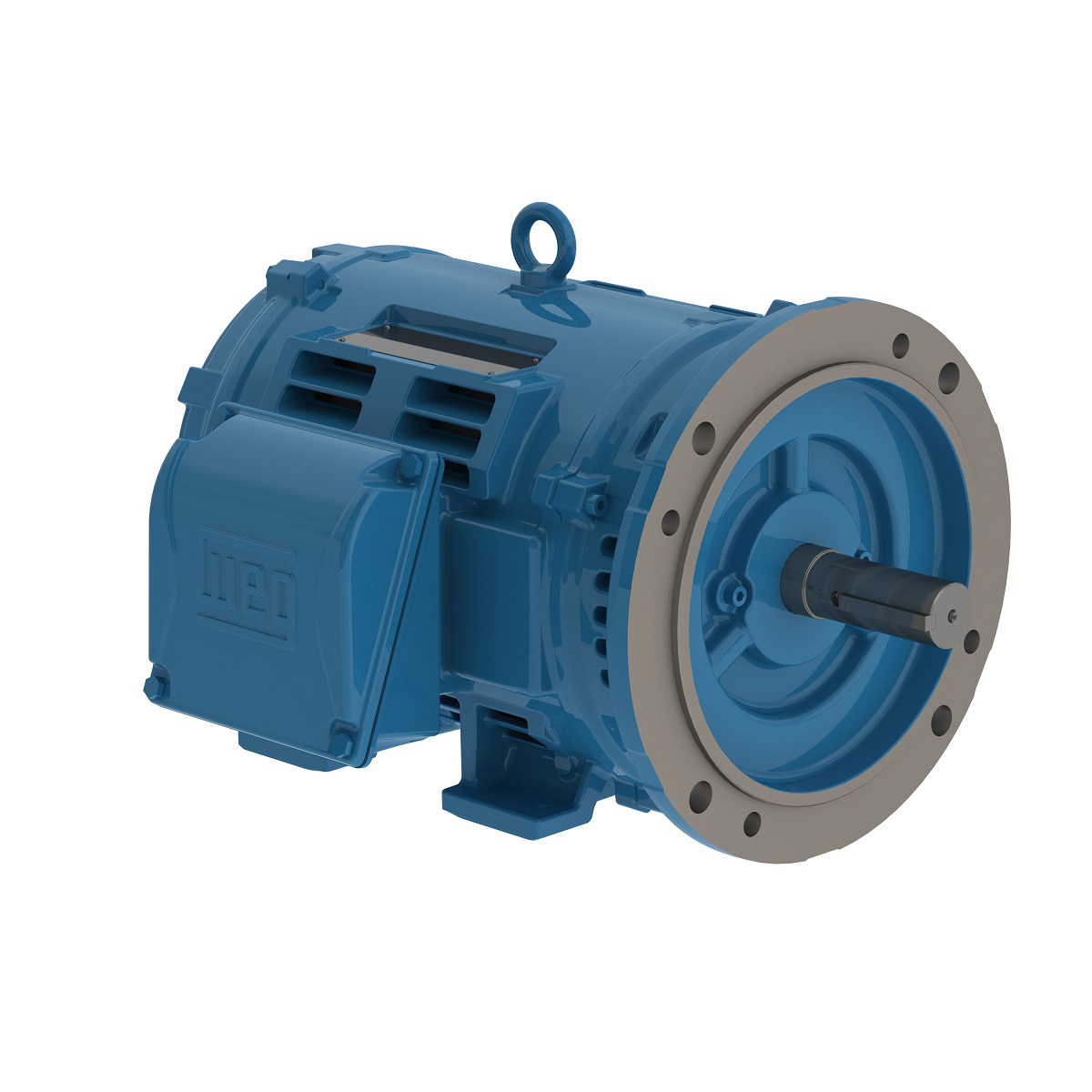

WEG 20018OT3G445TSDF2-W4 14285039 General Purpose Motor, ODP Cast Iron 444/5TSD Frame, 175 HP, 1485 RPM, 415V, F-2 Mounting
Get it by Friday, Aug 21
€15,876.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 234A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 270% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | D |
| Frame | 444/5tsd |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| L. R. Amps | 1568A |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 6.7x(Code H) |
| Main Terminal Box Hole | 2 x NPT 3" |
| Material | Carbon Steel |
| Moment Of Inertia | 46.4 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-2 |
| Nde Bearing Seal | No |
| No Load Amps | 101A |
| No. Of Poles | 4 |
| Noise Level | 78 dBA |
| Output Rating | 132 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1485 RPM |
| Rated Torque | 619 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Without |
| Voltage | 415V , 460/380V |
Shipping Info:
| Ship weight (kg) | 639.9 |
