WEG 15036OP3EFP405TS Electric Motor, 150Hp, 60Hz, 3600 Rpm | BC3JFE

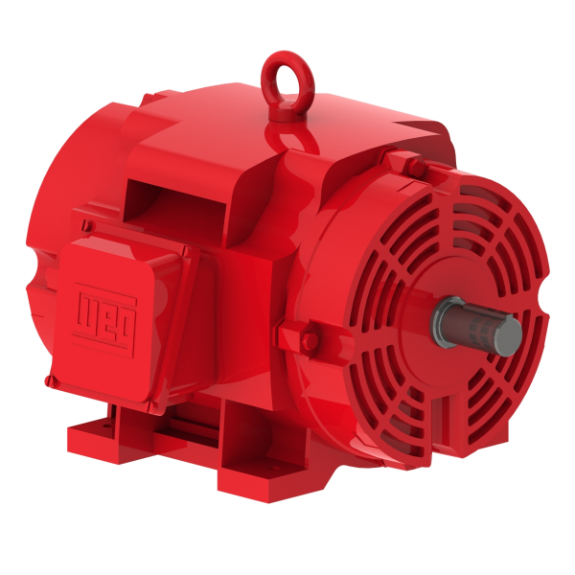

WEG 15036OP3EFP405TS-W40 12766997 Fire Pump Motor, 150 HP, 3600 RPM, 208-230/460 V, ODP, 404/5TS Frame

Item: BC3JFEModel: 15036OP3EFP405TS-W40Cross Ref: 12766997
Check Availability
In Stock

Get it by Friday, Aug 28

€9,606.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 168/336A , 336/168A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 250%
Cold Locked Rotor Time 18 sec.
Connection Cables Quantity 12
Design B
Drip Cover Without
Duty Cycle S1
Efficiency 50% 84% , 93.6%
Efficiency 75% 93.6%
Efficiency @ 1 % 88%
Efficiency @ 100% 93.6%
Efficiency @ 75 % 87%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Without
Flange Type Without
Frame 404/5TS
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 10 sec.
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 1075/2150A , 2150/1075A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time(hot) 10 sec.
Locked Rotor Torque 200%
Lrc 6.4X(Code G)
Main Terminal Box Hole 3"
Main Terminal Box Hole Size 3"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 11.9 lbs.-sq. ft.
Moment Of Inertia (j) 11.9 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3555 RPM
Mounting F-1 , Foot Mounted
No Load Amps 35/70A , 70/35A
No. Of Poles 2
Noise Level 84 dBA
Output 150 hp
Output Rating 150 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL3002 203A (ISO 12944-C2)
Phase 3
Power Factor 100% 0.88
Power Factor 50% 0.84
Power Factor 75% 0.87
Power Factor @ 1 % 93.6
Power Factor @ 50 % 93.6
Power Factor @ 75 % 93.6
Product Datasheet weg-15036op3efp405ts-w40.pdf
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.25%
Speed 3555 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 105 K
Terminal Block Without
Terminal Box Left Position
Torque 222 lbs.-ft.
Tropicalized Painting Without
Voltage 230/460V , 230/460V AC

Shipping Info:

Ship weight (kg) 461.25
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
