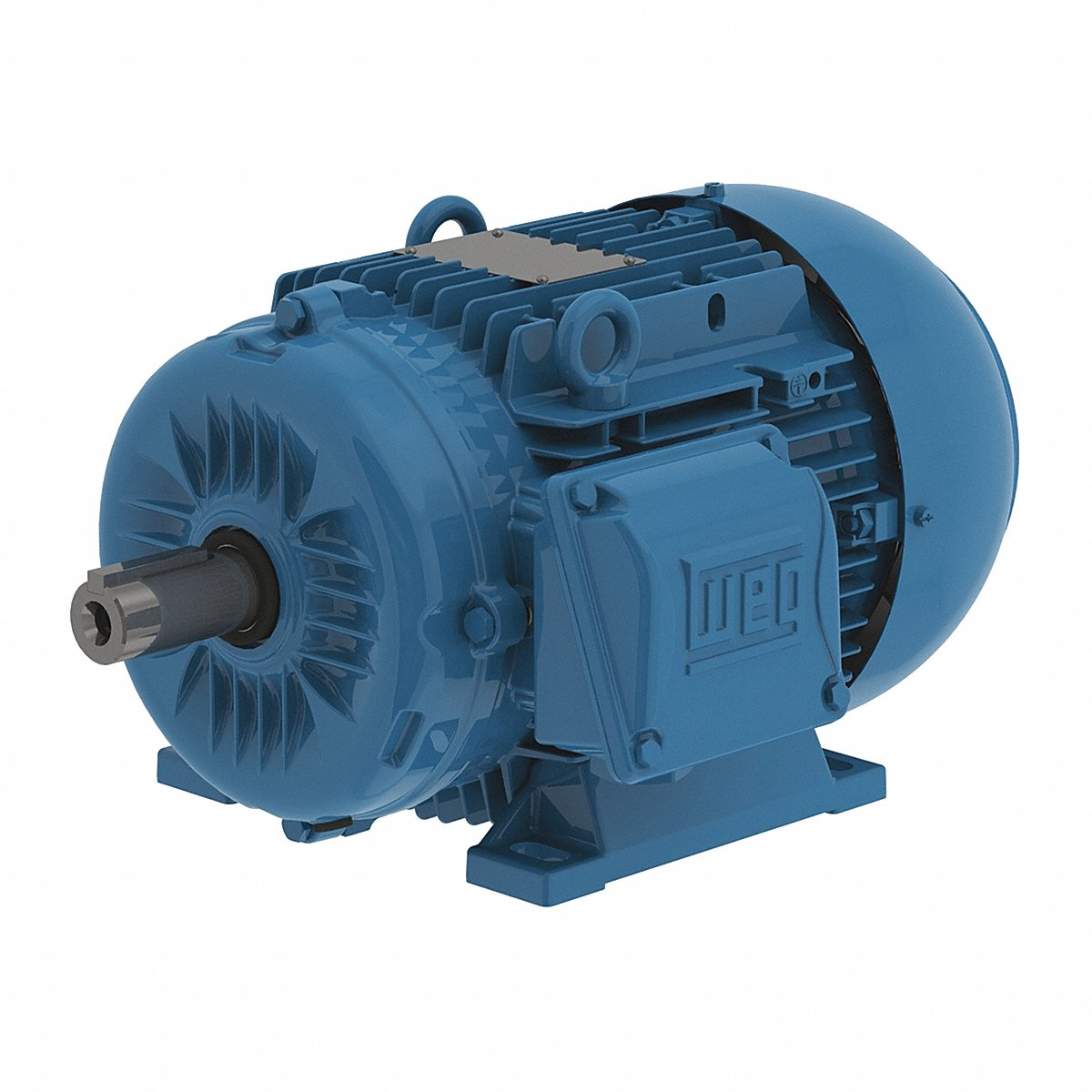

WEG 13984020 Metric Motor, Totally Enclosed Fan Cooled, Rigid Base Mount, 3 HP, 3480 RPM, 460V AC
Get it by Wednesday, Dec 24
10.00% off
€1,068.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Duty Cycle | Continuous |
| Frame | 90L |
| Frame Material | Aluminum |
| Full Load Amps | 3.9A |
| Full Load Amps @ 50hz | 4.4/7.56/4.37/7.81/4.52A |
| Hp | 3 hp |
| Hp @ 50hz | 3 hp |
| Hz | 60 Hz |
| Includes | Eye Bolt |
| Ins. Class | Class F |
| Length Less Shaft | 279 mm |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Aluminum |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3480 RPM |
| Nema Design | NEMA N |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 329 mm |
| Phase | 3 |
| Service Factor | 1.25 |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 44.6 lbs. |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 37.85 |
| Ship width (cm) | 124.46 |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Design | Motor Mounting Type | Shaft Dia. | Shaft Length | Full Load Amps @ 50hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

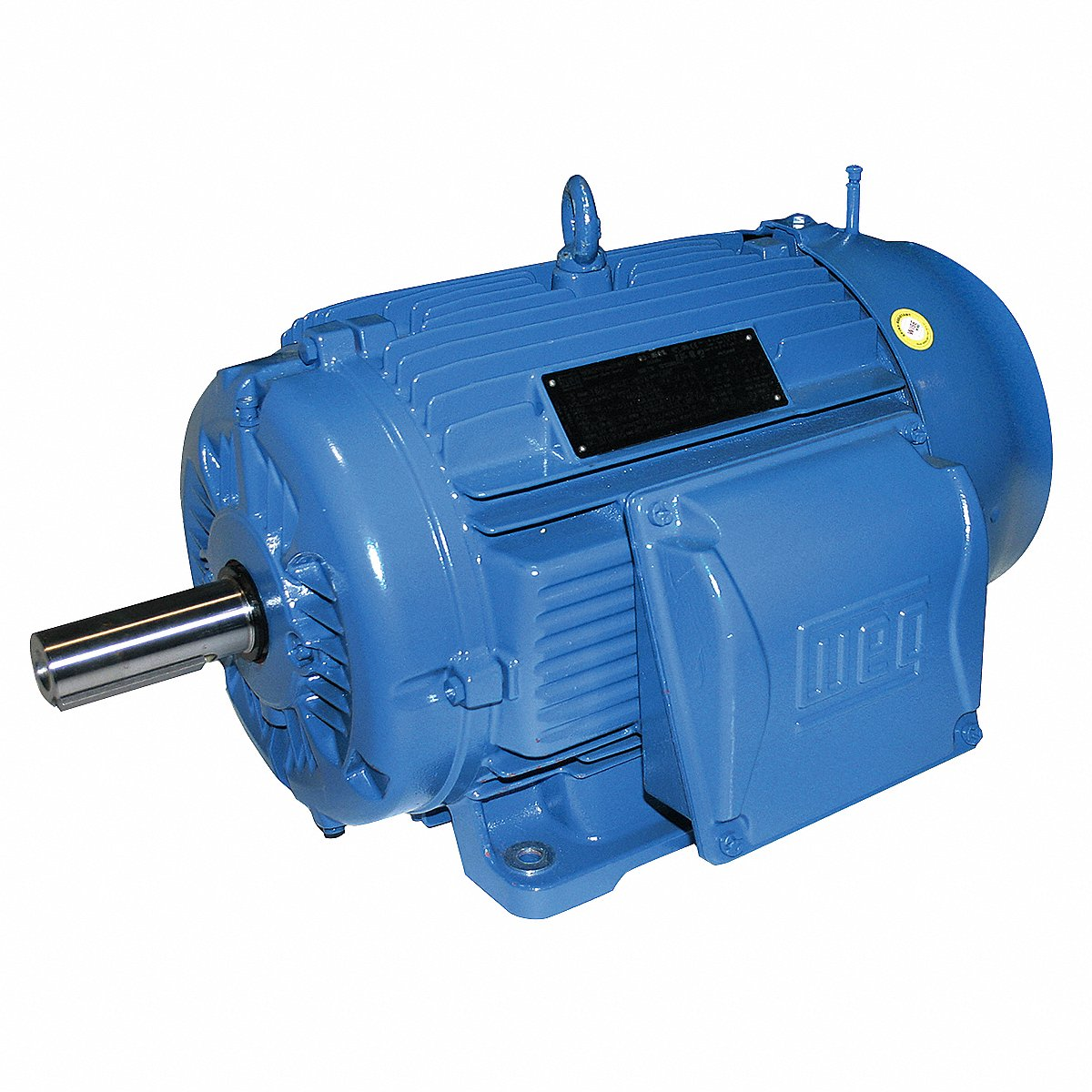

00418ET3Y112M-W22 | 380-415/460V | 5 1/2 hp | 112M | 3-Phase | Rigid Base | 28 mm | 60 mm | 8.09/8.2/8.47A | €1,177.86 | |
 |

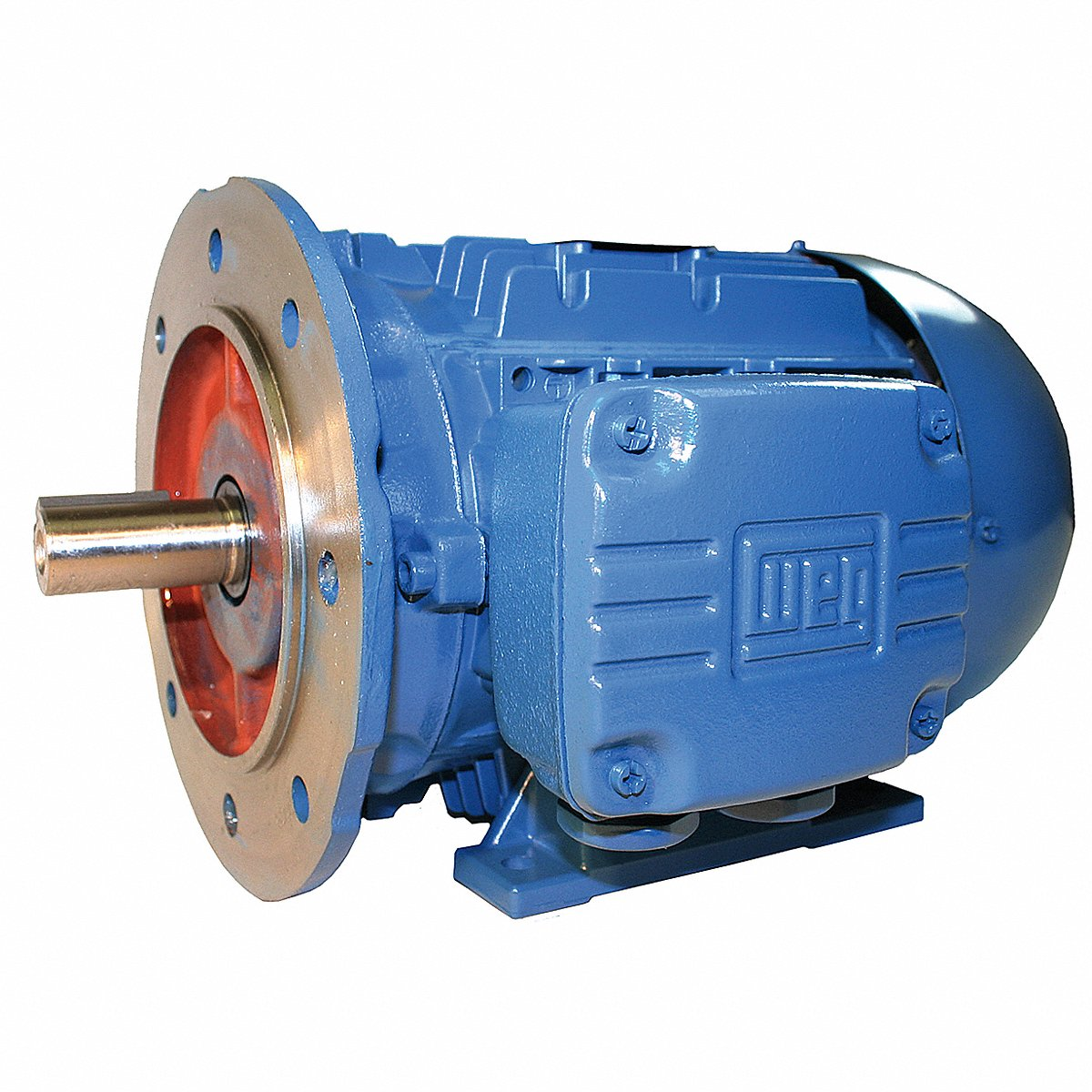

01818ET3Y180MFF-W22 | 460V AC | 25 hp | 180M | 3-Phase | Face, Base | 42 mm | 110 mm | 30.6A | €4,486.20 | |
|
01836ET3Y160LFF-W22 | 380-415/460V | 25 hp | 160L | 3-Phase | Face, Base | 42 mm | 110 mm | 32.8/33.3/34.3A | €5,367.05 | |
|
05536ET3Y250S/MFF-W2 | 460V AC | 75 hp | 250S/M | 3-Phase | Face, Base | 60 mm | 140 mm | 100/94.4/96.9A | €16,526.29 | |
 |
13984006 | 460V AC | 1 1/2 hp | 80 | - | - | 19 mm | 40 mm | 2.3/4/4.1/2.4A | €615.43 | |
 |

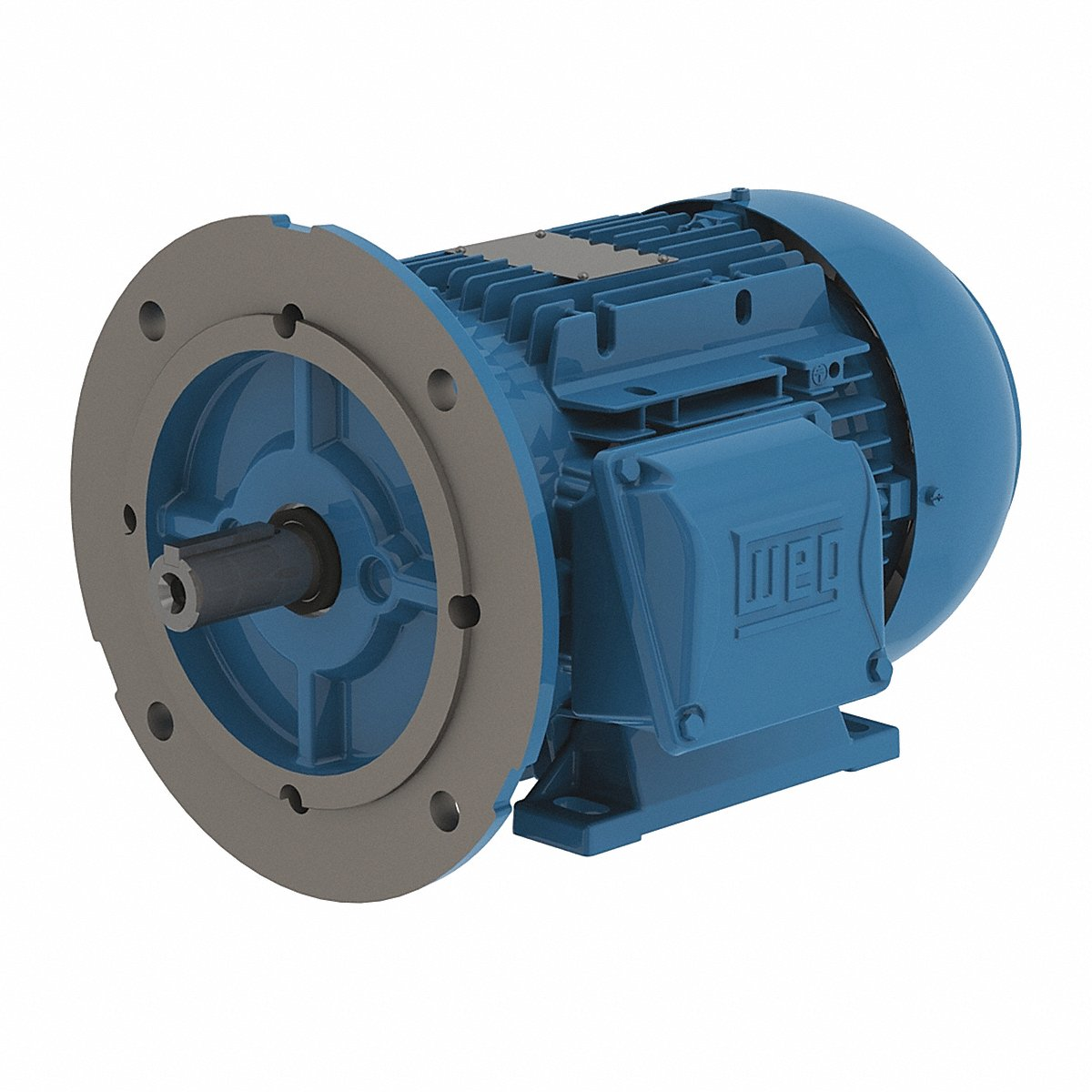

13984012 | 460V AC | 2 hp | 90L | 3-Phase | Face, Base | 24 mm | 50 mm | 3.2/5.5/3.2/5.6/3.2A | €983.45 | |
 |

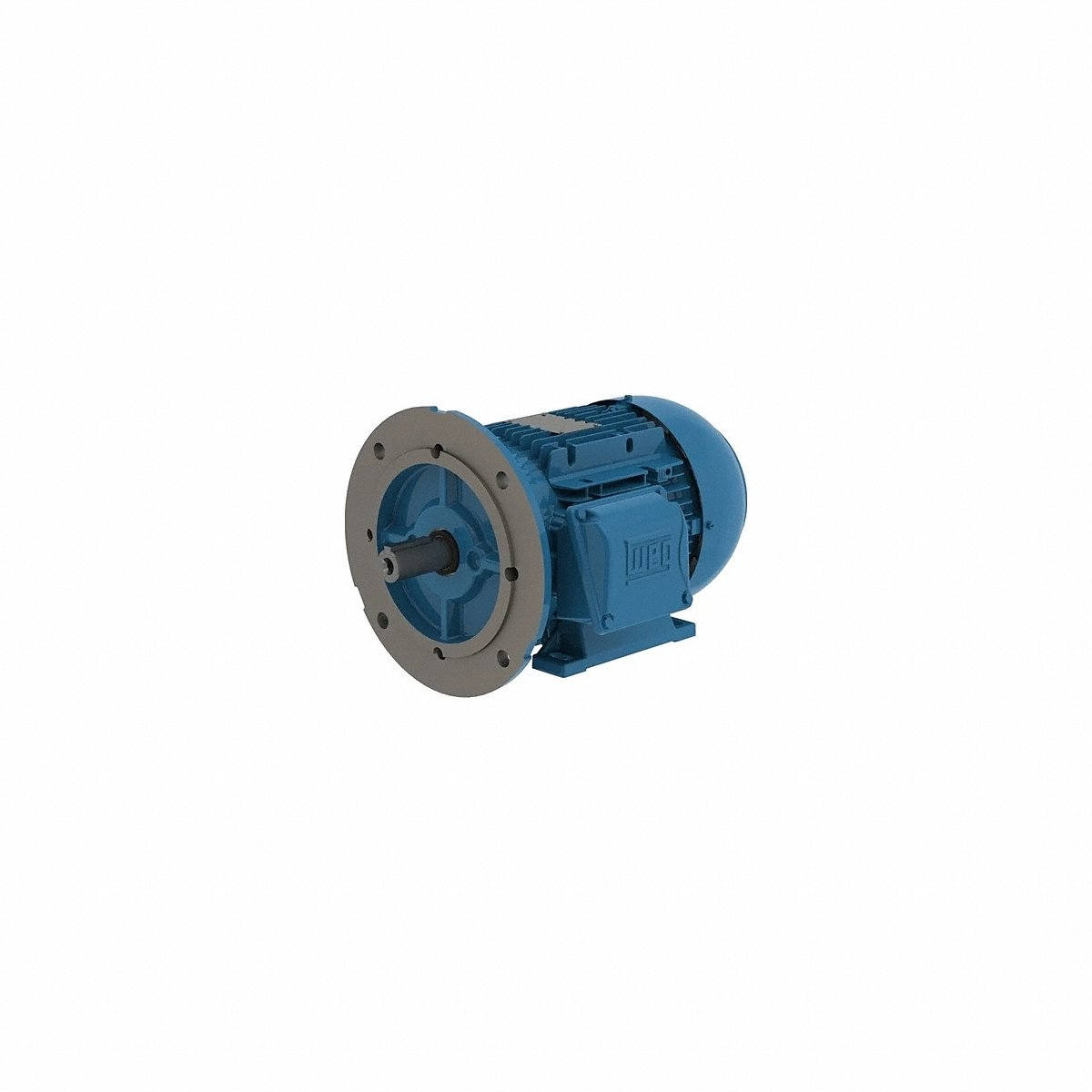

13984008 | 460V AC | 2 hp | 90S | 3-Phase | Face, Base | 24 mm | 50 mm | 3.1/5.3/3.1/5.5/3.2A | €931.59 |
