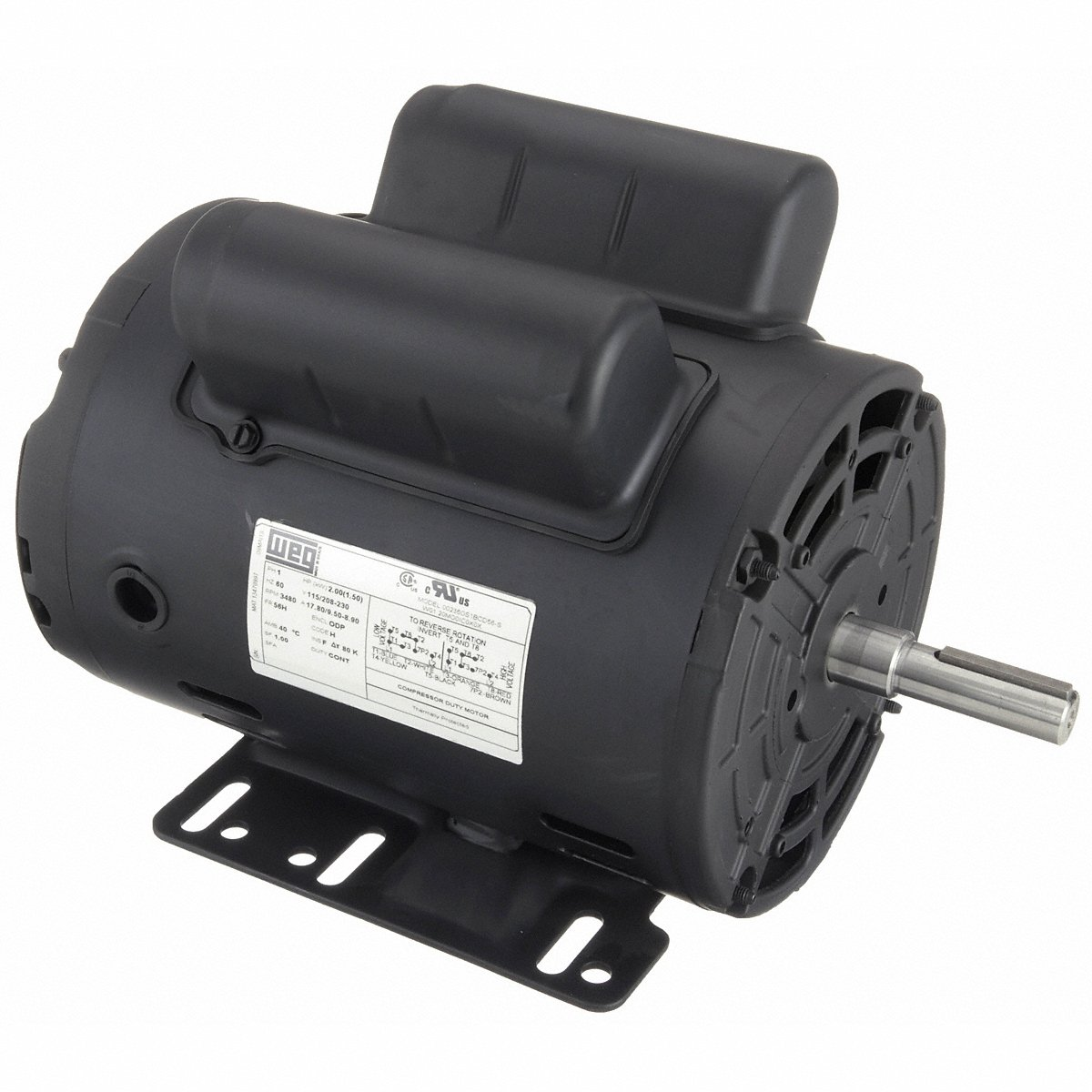

WEG 13488375 Air Compressor Motor, Capacitor-Start, 1Hp, 3400 Nameplate RPM
Get it by Tuesday, Dec 23
10.00% off
€380.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Commercial Duty Air Compressor Motor |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Included | Yes |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.2/6.6-6.5A |
| Hp | 1 hp |
| Includes | Capacitor |
| Insulation Class | Class F |
| Length Less Shaft | 9 1/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Rear/Foot |
| Nameplate Rpm | 3485 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 65.2% |
| Number Of Speeds | 1 |
| Overall Length | 11 1/8" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Voltage | 115/208-230V AC |
| Weight | 25.6 lbs. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
