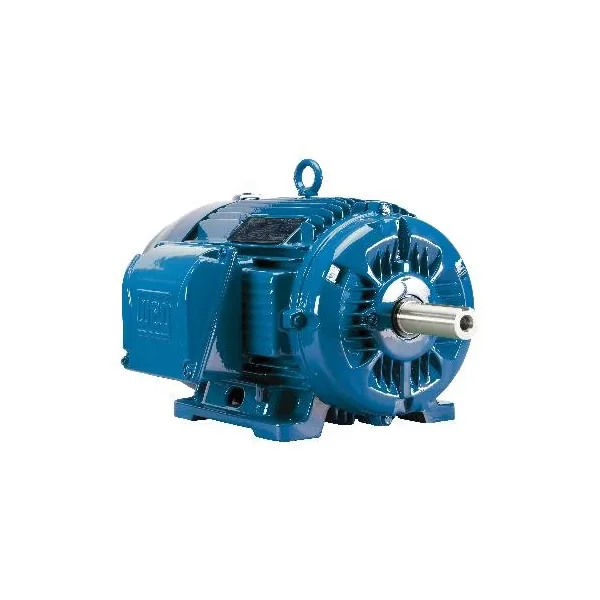

WEG 12512ET3ERB445T-W22 11165651 General Purpose Motor, TEFC Cast Iron 444/5T Frame, 125 HP, 1200 RPM, 208/230/460V, Footed, Crusher Duty
Get it by Tuesday, May 19
€20,559.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 240% |
| Breakdown Torque | 240% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 34 sec. |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 95% |
| Efficiency @ 50% | 95% |
| Efficiency @ 75% | 95.4% |
| Efficiency At 1 % | 83% |
| Efficiency At 50 % | 70% |
| Efficiency At 75 % | 79% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 444/5T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 143/286-316A |
| Grounding Lugs | Double |
| Horsepower | 125 hp |
| Hot Locked Rotor Time | 19 sec. |
| Hz | 60 Hz |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 1006A , 1830/915A |
| L.r. Amperes | 928/1856A |
| Locked Rotor Time (cold) | 34 sec. |
| Locked Rotor Time (hot) | 19 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 6.4X(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 104 lbs.-sq. ft. |
| Moment Of Inertia (j) | 104 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1185 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 112/56A , 58/116A |
| No. Of Holes | 2 |
| No. Of Poles | 6 |
| Noise | 69 dBA |
| Noise Level | 69 dBA |
| Output | 125 hp |
| Output Rating | 125 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.7 |
| Power Factor 75% | 0.79 |
| Power Factor At 1 % | 95 |
| Power Factor At 50 % | 95 |
| Power Factor At 75 % | 95.4 |
| Power Factor_100% | 0.82 |
| Product Datasheet | weg-12512et3erb445t-w22.pdf |
| Rated Current | 145/290A , 286/143A |
| Rated Speed | 1188 RPM |
| Rated Torque | 554 lbs.-ft. |
| Rated Voltage | 230/460V AC , 415V |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1% , 1.25% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 547 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460/380V AC |
Shipping Info:
| Ship weight (kg) | 896.85 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 114.7 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Full Load Amps | Service Factor | Hp | Frame | Duty Cycle | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20018ET3GRB447T-W22 | 460V AC | 60 Hz | 230A | 1.15 | 200 hp | 445/7T | S1 | 4 | €24,169.27 | |
 |
12518ET3GRB444T-W22 | 460V AC | 60 Hz | 139A | 1.15 | - | 444/5T | S1 | 4 | €16,894.88 | |
|
15018ET3GRB445T-W22 | 460V AC | 60 Hz | 170A | 1.15 | - | 444/5T | S1 | 4 | €19,955.86 | |
|
12518ET3ERB444T-W22 | 230/460/380V AC | 50/60 Hz | 139/278-307A | 1 | - | 444/5T | Continuous | 4 | €16,894.88 | |
 |
20012ET3GRB447T-W22 | 460V | 60 Hz | 237A | 1 | - | 445/7T | Continuous | 6 | €28,791.65 | |
|
10012ET3ERB444T-W22 | 230/460/380V AC | 50/60 Hz | 121/242-268A | 1.25 | - | 444/5T | S1 | 6 | €17,906.43 | |
|
10018ET3ERB405T-W22 | 230/460/380V AC | 50/60 Hz | 111/222-245A | 1 | 100 hp | 404/5T | Continuous | 4 | €13,390.58 |
