WEG 11661300 Metric Motor, Totally Enclosed Fan Cooled, Rigid Base Mount, 10 HP, 880 RPM, 460V AC
Get it by Wednesday, Dec 24
10.00% off
€3,782.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Breakdown Torque | 210% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 39 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Automatic, Rubber |
| Drip Cover | Without Drip Cover |
| Duty Cycle | Continuous |
| Enclosure | IC411 - TEFC |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without Flange |
| Frame | 160L |
| Frame Material | Cast Iron |
| Frame Size | 160L |
| Frequency | 60 Hz |
| Full Load Amps | 15A |
| Full Load Amps @ 50hz | 17/17.2/17.4A |
| Grade | Grade 1040/45 |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 22 sec. |
| Hp | 10 hp |
| Hp @ 50hz | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| Includes | Eye Bolt |
| Ins. Class | Class F |
| L. R. Amperes | 85.3A |
| Length Less Shaft | 532 mm |
| Locked Rotor Torque | 190% |
| Lrc | 4.9A |
| Main Terminal Box Hole | M40 x 1.5 |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 3.75 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 880 RPM |
| Nde Bearing Seal | V Ring |
| Nema Design | NEMA N |
| No Load Current | 9.5A |
| No. Of Speeds | 1 |
| Noise Level | 51 dBA |
| Nominal Efficiency | 89.5% |
| Number Of Main Terminal Box Holes | 2 |
| Number Of Poles | 8 |
| Output Hp | 10 hp |
| Output Kw | 7.5 kW |
| Overall Length | 642 mm |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | RAL 5009 203A (ISO 12944-C3) |
| Phase | 3 |
| Rated Amps | 17.4A |
| Rated Speed | 720 RPM |
| Rated Torque | 72.9 lbs.-ft. |
| Rated Voltage | 380V |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | Clockwise, Counter Clockwise |
| Screw Cap Grade | Grade 316L |
| Screw Cap Material | Stainless Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 42 mm |
| Shaft Length | 110 mm |
| Shaft Locking Device | Without Shaft Locking Device |
| Shaft Material | Carbon Steel |
| Slip | 4% |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temperature Rise | 80 K |
| Terminal Block | BMC - 6 Pins |
| Thermal Protection | None |
| Tropicalized Painting | Without Shaft Locking Device |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 301 lbs. |
Shipping Info:
| Ship weight (kg) | 158.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 69.09 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Design | Motor Mounting Type | Shaft Dia. | Shaft Length | Full Load Amps @ 50hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00418ET3Y112M-W22 | 380-415/460V | 5 1/2 hp | 112M | 3-Phase | Rigid Base | 28 mm | 60 mm | 8.09/8.2/8.47A | €1,177.86 | |
 |
01818ET3Y180MFF-W22 | 460V AC | 25 hp | 180M | 3-Phase | Face, Base | 42 mm | 110 mm | 30.6A | €4,486.20 | |
|
01836ET3Y160LFF-W22 | 380-415/460V | 25 hp | 160L | 3-Phase | Face, Base | 42 mm | 110 mm | 32.8/33.3/34.3A | €5,367.05 | |
|
05536ET3Y250S/MFF-W2 | 460V AC | 75 hp | 250S/M | 3-Phase | Face, Base | 60 mm | 140 mm | 100/94.4/96.9A | €16,526.29 | |
 |

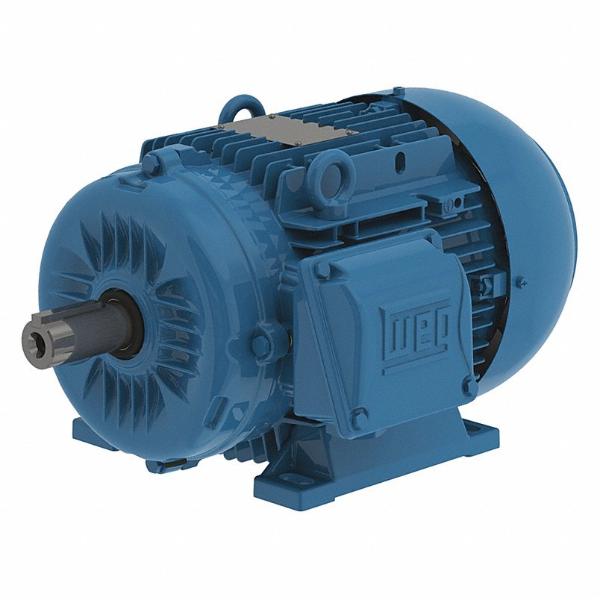

13984006 | 460V AC | 1 1/2 hp | 80 | - | - | 19 mm | 40 mm | 2.3/4/4.1/2.4A | €615.43 | |
 |

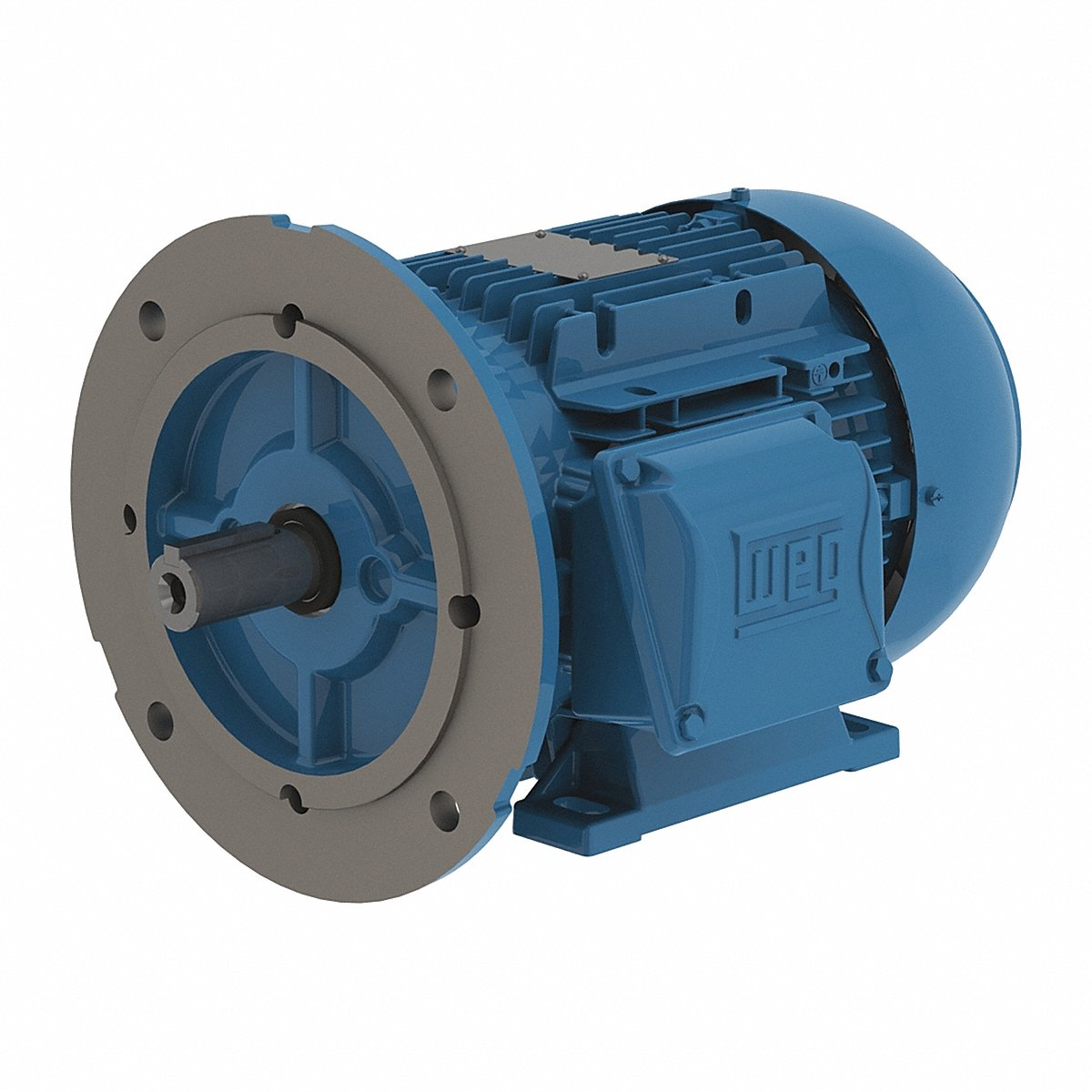

13984012 | 460V AC | 2 hp | 90L | 3-Phase | Face, Base | 24 mm | 50 mm | 3.2/5.5/3.2/5.6/3.2A | €983.45 | |
 |

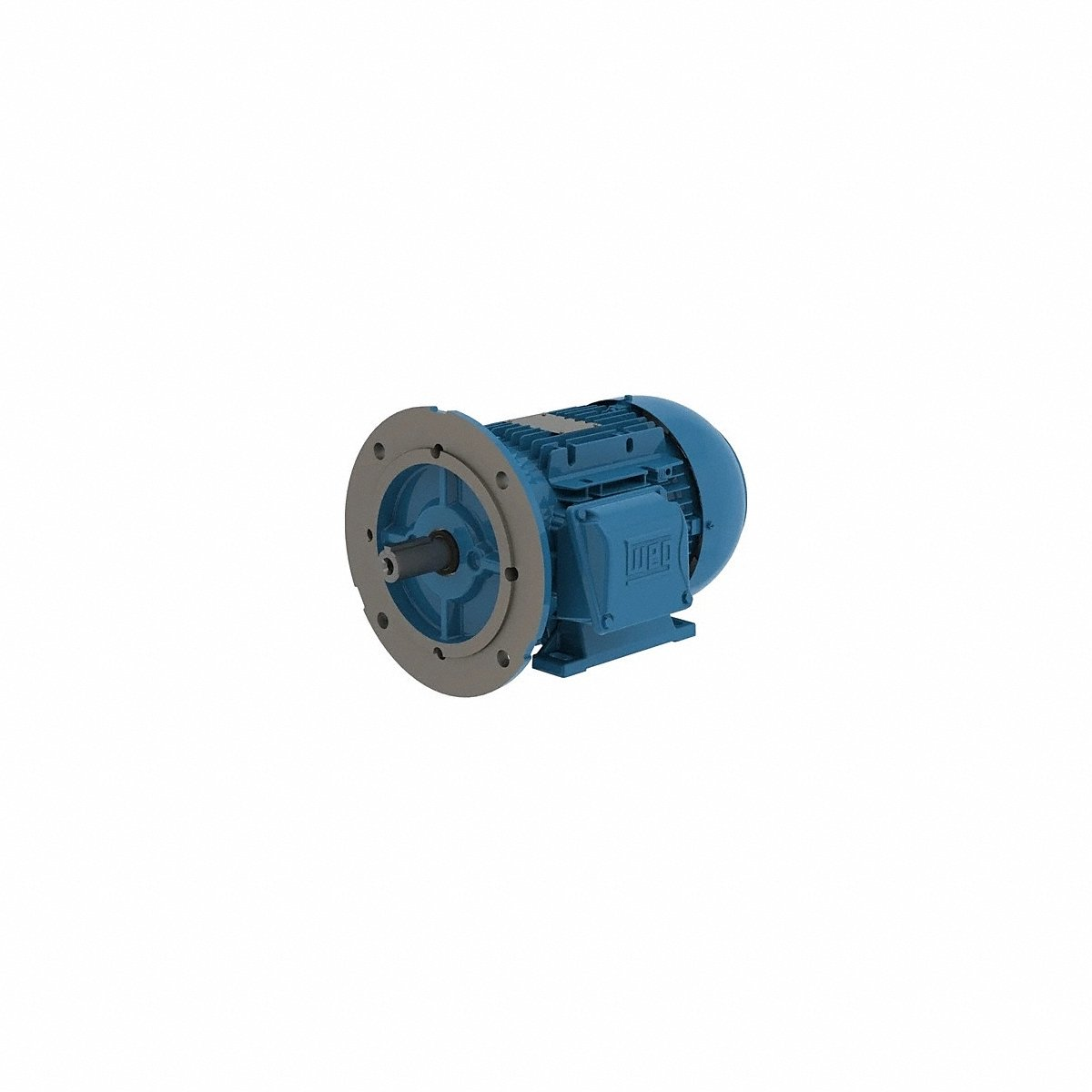

13984008 | 460V AC | 2 hp | 90S | 3-Phase | Face, Base | 24 mm | 50 mm | 3.1/5.3/3.1/5.5/3.2A | €931.59 |
