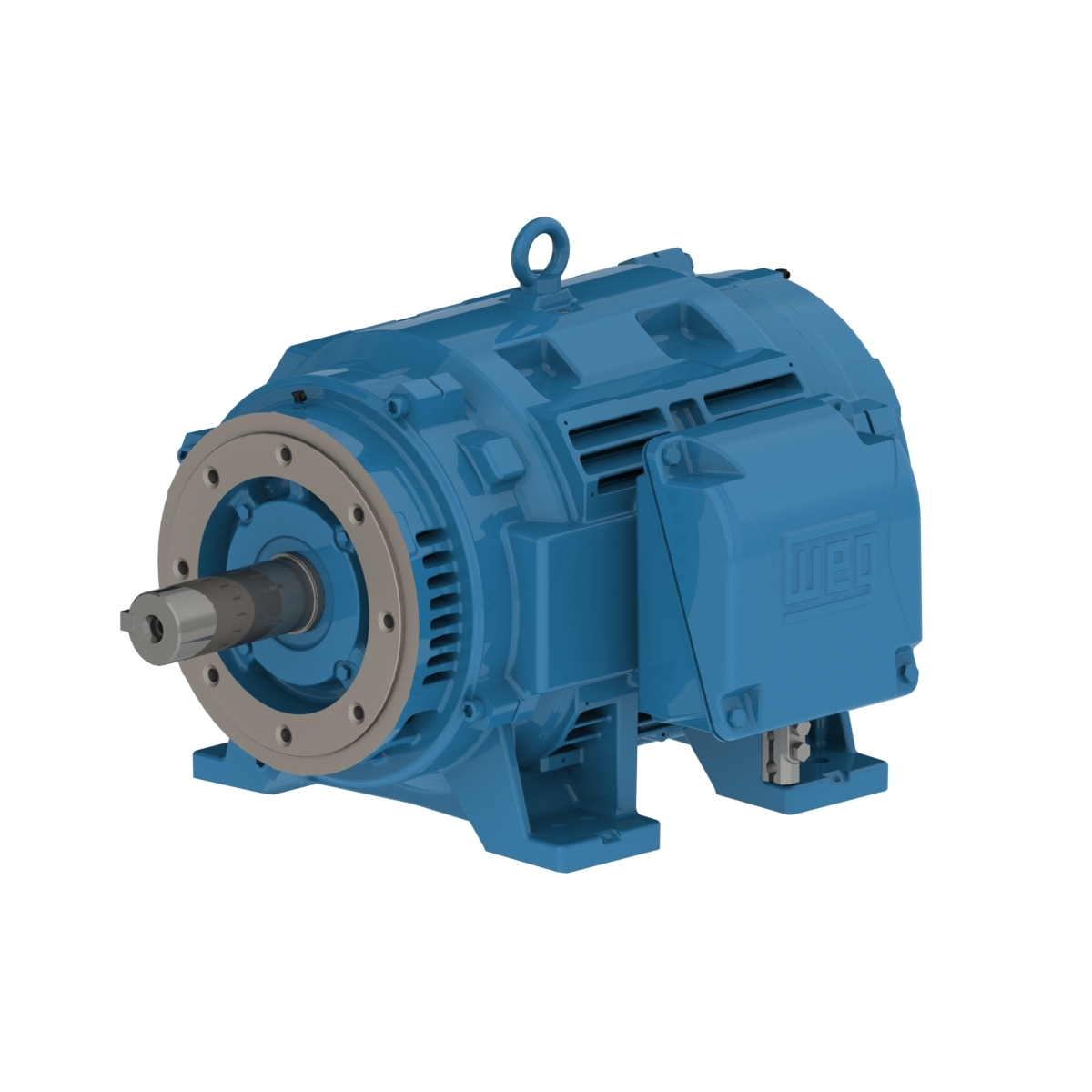

WEG 10018OT3E404TSCF2-W4 14284792 General Purpose Motor, ODP Cast Iron 404/5TSC Frame, 75 HP, 1485 RPM, 415V, F-2 Mounting
Get it by Monday, Aug 24
€8,691.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes , Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Break Down Torque | 2.5 , 300% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency 50% | 95% |
| Efficiency 75% | 95.4 |
| Efficiency @ 100% | 95.4% |
| Enclosure | IC01-ODP |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 404, 5TSC , 404/5TSC |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F, F |
| L. R. Amps | 1560/780A , 750A |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 2 , 270% |
| Lrc | 6.8 X (Code G) , 7.8x(Code J) |
| Main Terminal Box Hole | 3" , NPT 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 21.9 lbs.-sq. ft. |
| Mounting | F-2 , Foot-Mounted, F-2 |
| Nde Bearing Seal | No |
| No Load Amps | 41A , 74/37.A |
| No. Of Poles | 4 |
| Noise Level | 69 dBA |
| Output Rating | 100 Hp , 55 KW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Power Factor 100% | 0.86 |
| Power Factor 50 % | 0.75 |
| Power Factor 75 % | 0.83 |
| Product Datasheet | weg-10018ot3e404tscf2-w4.pdf |
| Rated Amps | 229/115A , 96.2A |
| Rated Speed | 1485 RPM , 1780 RPM |
| Rated Torque | 265 lbs.-ft. , 295 lbs.-ft. |
| Rated Voltage | 230/460V , 415V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Screw Cap | Carbon Steel Sae 1010/20 |
| Service Factor | 1 , 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1% , 1.11% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Terminal Box1 | Right Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V |
Shipping Info:
| Ship weight (kg) | 449.1 |
