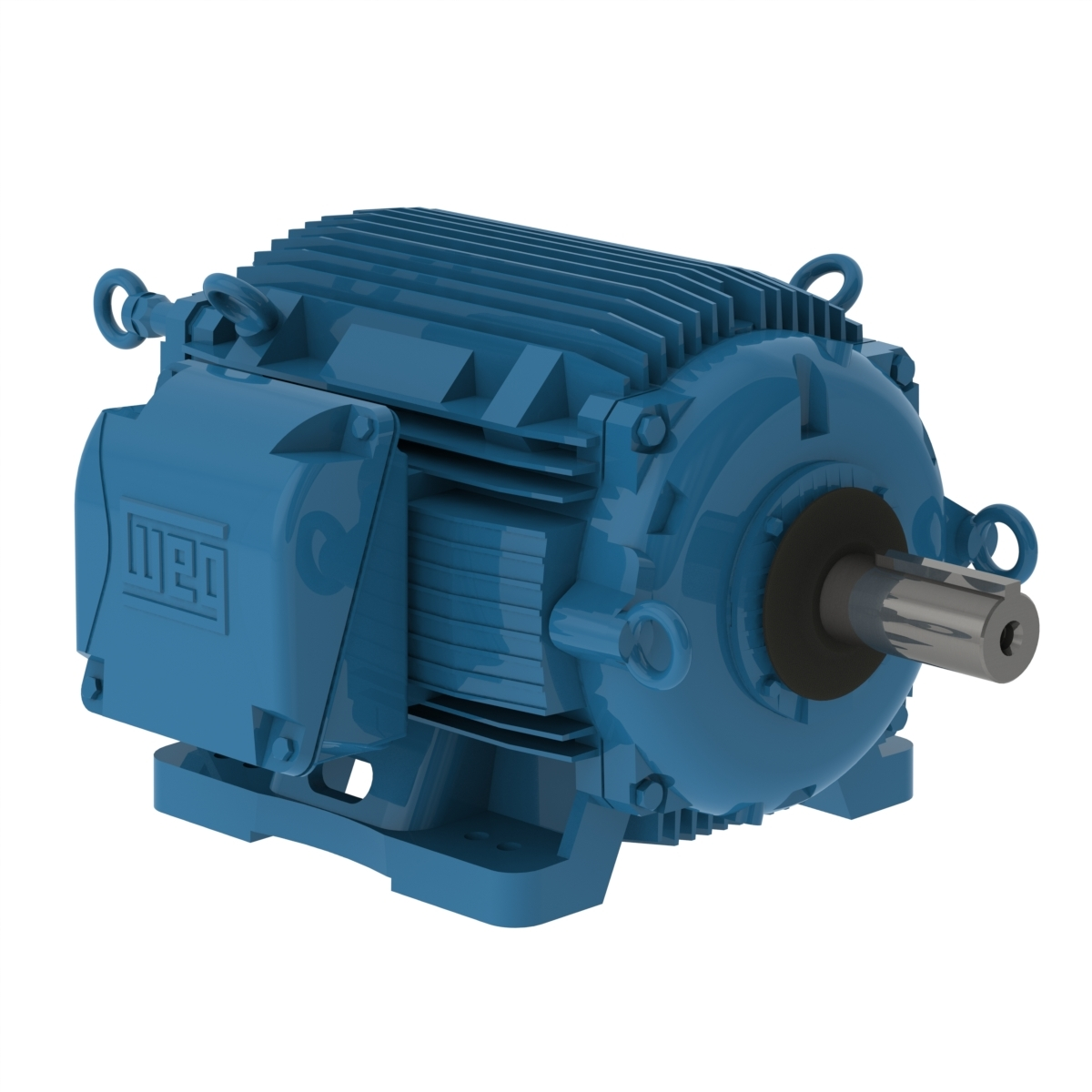

WEG 10018AT3ECT405TF1-W2 14409276 Cooling Tower Motor, 100 HP, 4 Poles, 404/5T Frame, 3 Phase, 208-230/460//380 V 60//50 Hz, IC418-TEAO, F-1 Foot Mounted
Get it by Friday, Aug 21
€13,073.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 127A |
| Application | Cooling Tower |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design Material | Cast Iron |
| Break Down Torque | 250% |
| Cold Locked Rotor Time | 16 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 20:1 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 95.4% |
| Enclosure Iec | IP55 |
| Enclosure Nema | Teao |
| Enclosure Rating | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 404/5t |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 404/5t |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| Joints Seal | Permatex |
| L. R. Amps | 902A |
| Locked Rotor Time(hot) | 9 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.1x(Code H) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 29.9 lbs.-sq. ft. |
| Mount Arrangement | F1/F2 Capable |
| Mount Orientation | Horizontal, Vertical |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | Yes |
| No Load Amps | 42A |
| No. Of Poles | 4 |
| Noise Level | 64 dBA |
| Output Rating | 75 kW |
| Output Speed | 1780/1470 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1475 RPM |
| Rated Torque | 356 lbs.-ft. |
| Rotation | CW And CCW |
| Service Factor | 1 , 1.25, 1 |
| Shaft Grounded Sgr | Not Available |
| Shaft Locking Device | Without |
| Shaft Material | SAE 4140 Carbon Steel |
| Slip | 1.67% |
| Space Heater | 110-127/200-240VAC |
| Space Heater Voltage | 110-127/200-240V |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | 200°C |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Complete (200H) |
| Voltage | 208-230/460/380V , 415V |
| Vt Speed Range | 1000:1 |
| Xp Atex Zone | Iic |
Shipping Info:
| Ship weight (kg) | 515.25 |
