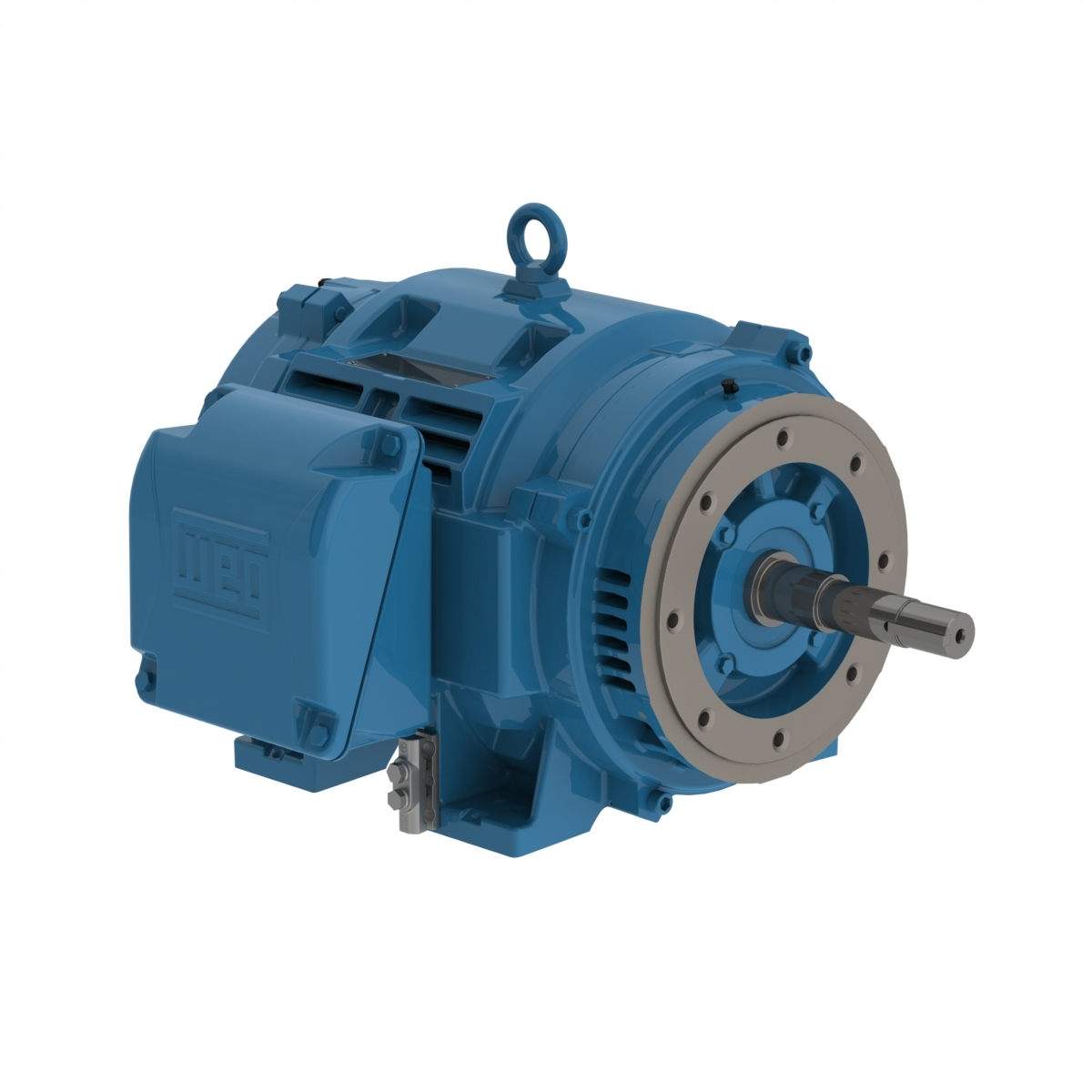

WEG 07536OT3H364JP-W40 14270479 Pump Motor, 75 HP, 3600 RPM, 575V, ODP, 364/5JP, Footed
Get it by Tuesday, Jul 14
€6,031.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Amps | 67.8A |
| Bolt Material | Carbon Steel |
| Duty Cycle | S1 |
| Enclosure Type | ODP |
| Frame | 364JP |
| Frame Material | Cast Iron |
| Frame Size | 364/5JP , 364JP |
| Frequency | 60 Hz |
| Hp | 75 hp |
| Insulation Class | Class F |
| L. R. Amps | 448A |
| No Load Amps | 17.2A |
| No. Of Poles | 2 |
| Noise Level | 84 dBA |
| Phase | 3 |
| Product Datasheet | weg-07536ot3h364jp-w40.pdf |
| Rotation | CW, CCW |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 388.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
