WEG 07536OT3G364JP Pump Motor, 3 Phase, 75 Hp, 3550 460V, 364jp
Get it by Friday, Aug 28
5.00% off
€10,711.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 21 1/5" |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 93.6% |
| Efficiency Group | Premium |
| Enclosure Type | ODP |
| Feet | Yes |
| Flange | JP |
| Frame Material | Cast Iron |
| Frame Size | 364JP |
| Frame Type | 364JP |
| Frequency | 60 Hz |
| Full Load Amps | 84.8A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Height | 21 1/4" |
| Hp | 75 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| Length Less Shaft | 23 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close Coupled Pump |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Speed | 3550 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 93.6% |
| Overall Height | 21 1/4" |
| Overall Length | 32 1/8" |
| Phase | 3 |
| Product Datasheet | weg-07536ot3g364jp.pdf |
| Regreasable Bearings | Regreasable Bearings |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 8 1/8" |
| Shaft Material | Carbon Steel |
| Speed | 3001-3600 RPM , 3400-3600 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 373.12 |
| Ship height (cm) | 75.21 |
| Ship length (cm) | 119 |
| Ship width (cm) | 82.19 |
| HS code | 8501528040 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Hp | Motor Design | Shaft Dia. | Service Factor | Motor Application | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

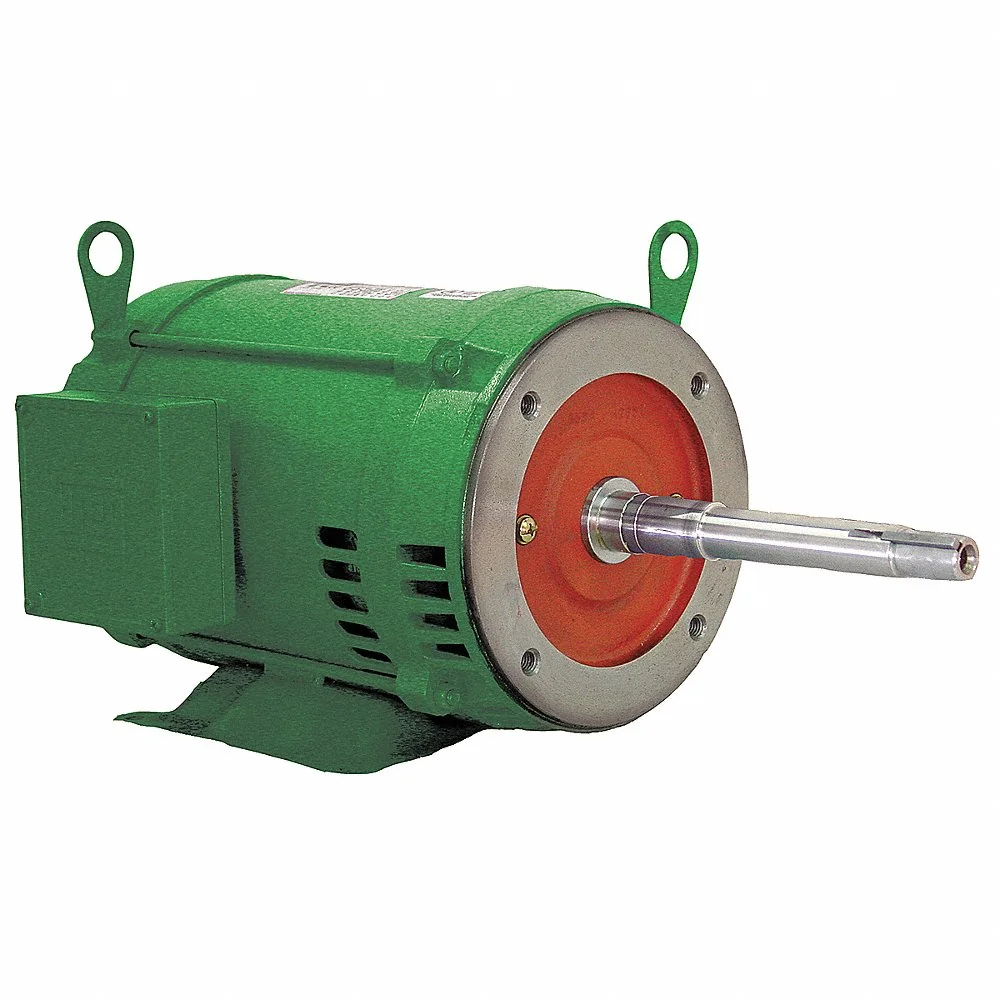

| 01518OT3E254JP-W40 | 230/460V | 15 hp | 3-Phase | 1 1/4" | 1.15 | Pump | - | S1 | €3,056.33 | |
| 02036OT3E254JP-W40 | 230/460V | 20 hp | 3-Phase | 1 1/4" | 1.15 | Pump | - | S1 | €3,284.16 | |
| 02018OT3E256JP-W40 | 230/460V | 20 hp | 3-Phase | 1 1/4" | 1.15 | Pump | - | S1 | €3,831.34 | |
| 02536OT3E256JP-W40 | 230/460V | 25 hp | 3-Phase | 1 1/4" | 1.25 | Pump | - | Continuous | €5,602.82 | |
| 02518OT3E284JP-W40 | 230/460V | 25 hp | 3-Phase | 1 1/4" | 1.15 | Pump | - | S1 | €6,366.61 | |
| 03036OT3E284JP-W40 | 230/460V | 30 hp | 3-Phase | 1 1/4" | 1.15 | Pump | - | S1 | €6,928.05 | |
| 03018OT3E286JP-W40 | 230/460V | 30 hp | 3-Phase | 1 1/4" | 1.15 | Pump | - | S1 | €5,101.96 |
