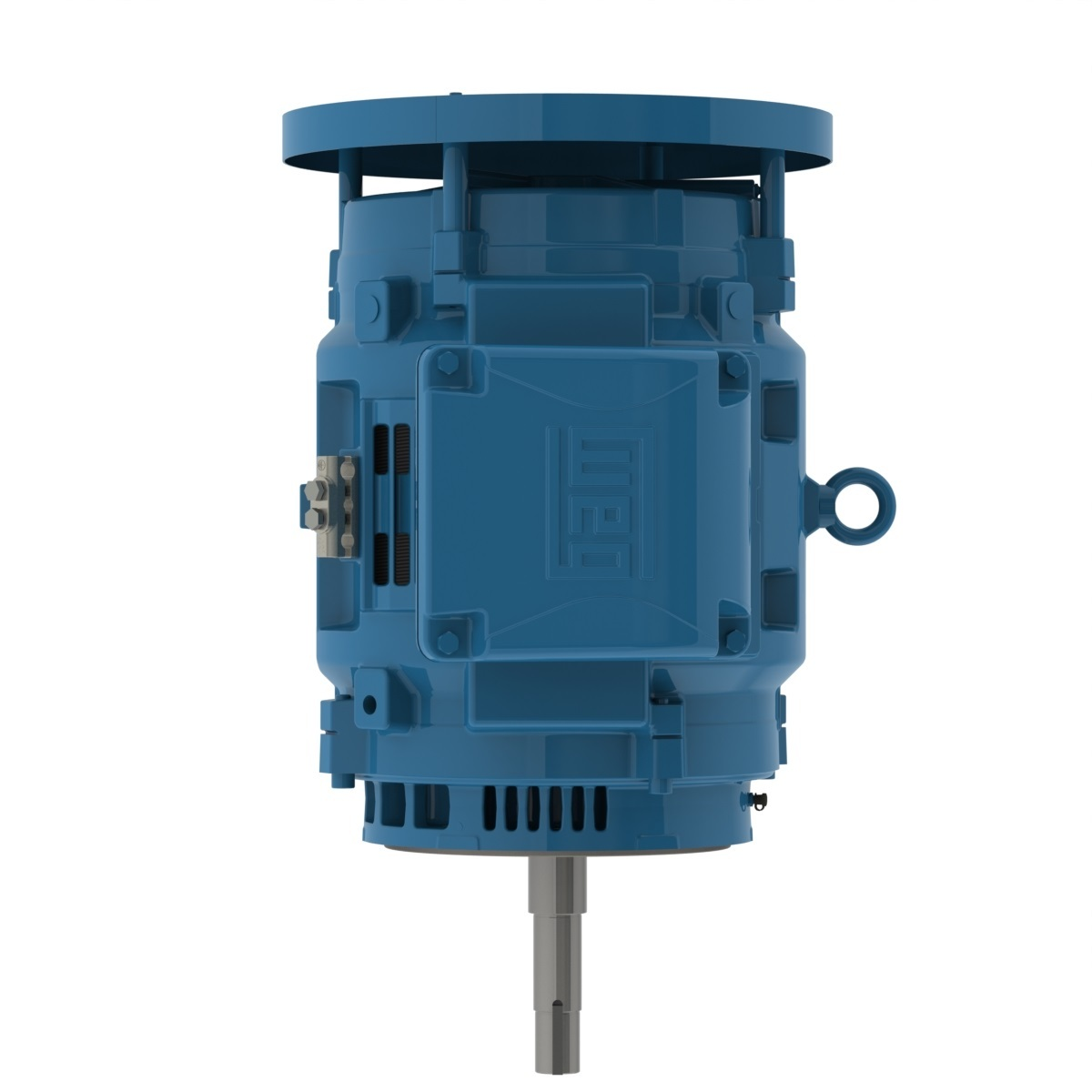

WEG 07518OT3E365JPV-W40 14836811 Pump Motor, 75 HP, 1800 RPM, 208-230/460V, ODP, 364/5JP, Footless
Get it by Monday, Aug 24
€8,398.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 23 sec. |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Duty Cycle | S1 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Frame Material | Cast Iron |
| Frame Size | 364/5JP |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Insulation Class | Class F |
| Item | 478227 |
| L. R. Amps | 609A |
| Locked Rotor Time(hot) | 13 sec. |
| Lrc | 7.6x(Code J) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-07518ot3e365jpv-w40.pdf |
| Rotation | CW, CCW |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Tropicalized Painting | Without |
| Voltage | 415V |
Shipping Info:
| Ship weight (kg) | 350.1 |
