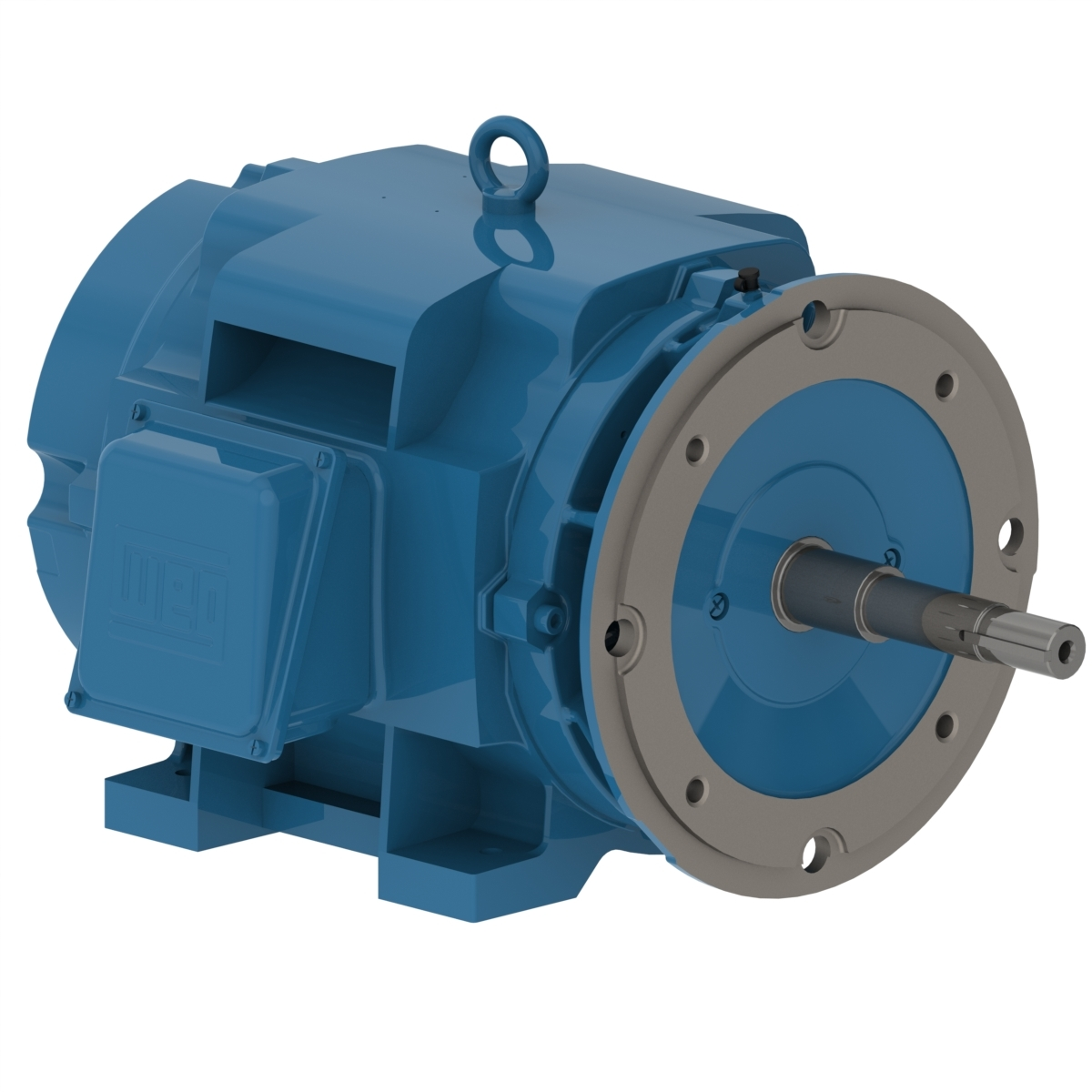

WEG 06036OT3Q326JP 11263059 Pump Motor, Close Coupled JM/JP, 60 HP, 2 Poles, 326JP Frame, 3 Phase, 460 V, 60 Hz, IC01-ODP, Foot Mounted
Get it by Friday, Aug 21
€5,915.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 71A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 229% |
| Cold Locked Rotor Time | 34 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 93% |
| Efficiency 75% | 93.6% |
| Efficiency @ 100% | 93.6% |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Material | Without Fan |
| Feet | Yes |
| Flange | C |
| Frame Material | Cast Iron |
| Frame Size | 326JP |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 426A , 481A |
| Locked Rotor Time (cold) | 43 sec. |
| Locked Rotor Time(hot) | 19 sec. , 24 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6x(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 4.36 lbs.-sq. ft. |
| Mounting | F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 21.5A |
| No. Of Poles | 2 |
| Noise Level | 75 dBA |
| Output Rating | 60 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.85 |
| Power Factor 50% | 0.77 |
| Power Factor 75% | 0.84 |
| Pump Seal | Gasket |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 1.11% |
| Speed | 3560 RPM , 3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 88.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 240.3 |
