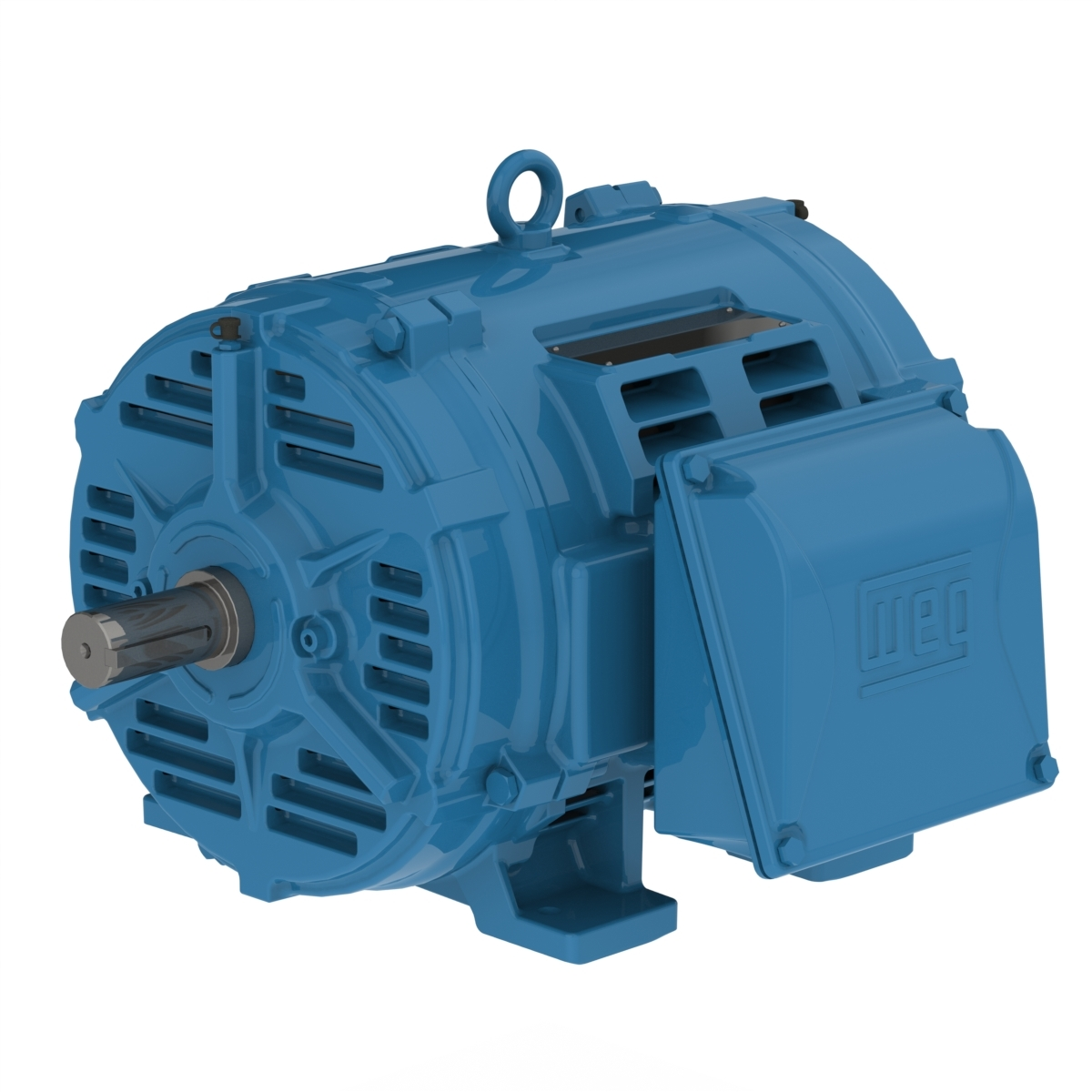

WEG 03036OT3E284TSF2-W40 14492696 General Purpose Motor, ODP Cast Iron 284TS Frame, 25 HP, 2955 RPM, 415 V
Get it by Tuesday, Aug 25
€2,875.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | No , No Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Break Down Torque | 2.6 , 270% |
| Cold Locked Rotor Time | 16 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency 50% | 90.2% |
| Efficiency 75% | 91.7 |
| Efficiency @ 100% | 91.7% |
| Enclosure | IC01-ODP |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 284TS |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F, F |
| L. R. Amps | 232A , 441/221A |
| Locked Rotor Time(hot) | 9 sec. |
| Locked Rotor Torque | 1.8 , 200% |
| Lrc | 6.3 X (Code G) , 6.9x(Code H) |
| Main Terminal Box Hole | 1 1/2" , NPT 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 1.59 lbs.-sq. ft. |
| Mounting | F-2 , Foot-Mounted, F-2 |
| Nde Bearing Seal | No |
| No Load Amps | 15.3A , 25/12.5A |
| No. Of Poles | 2 |
| Noise Level | 73 dBA |
| Output Rating | 18.5 KW , 30 Hp |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Power Factor 100% | 0.86 |
| Power Factor 50 % | 0.73 |
| Power Factor 75 % | 0.82 |
| Product Datasheet | weg-03036ot3e284tsf2-w40.pdf |
| Rated Amps | 33.6A , 70/35A |
| Rated Speed | 2955 RPM , 3545 RPM |
| Rated Torque | 44.4 lbs.-ft. |
| Rated Voltage | 230/460V , 415V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Screw Cap | Carbon Steel Sae 1010/20 |
| Service Factor | 1 , 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.5% , 1.53% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Terminal Box1 | Right Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V |
Shipping Info:
| Ship weight (kg) | 136.8 |
