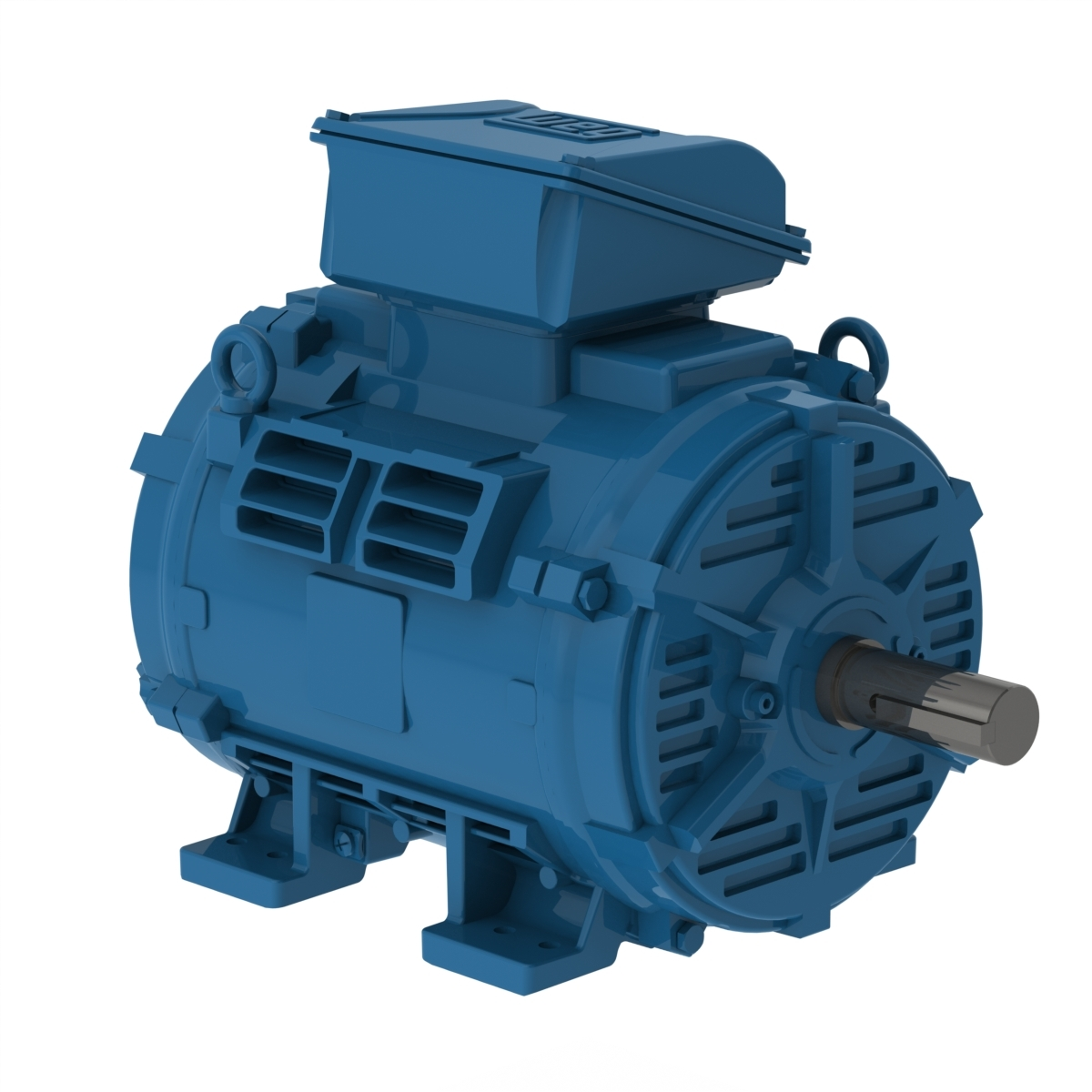

WEG 02518OT3E284TF3-W40 16102927 General Purpose Motor, ODP Cast Iron 284/6T Frame, 20 HP, 1475 RPM, 415 V
Get it by Monday, Aug 24
€2,512.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | No , No Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Break Down Torque | 2.7 , 300% |
| Cold Locked Rotor Time | 55 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency 50% | 93% |
| Efficiency 75% | 93.6 |
| Efficiency @ 100% | 93.6% |
| Enclosure | IC01-ODP |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 284, 6T , 284/6T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F, F |
| L. R. Amps | 199A , 372/186A |
| Locked Rotor Time(hot) | 31 sec. |
| Locked Rotor Torque | 2.29 , 270% |
| Lrc | 6.3 X (Code G) , 7.1x(Code J) |
| Main Terminal Box Hole | 1 1/2" , NPT 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 3.71 lbs.-sq. ft. |
| Mounting | F-3 , Foot-Mounted, F-3 |
| Nde Bearing Seal | No |
| No Load Amps | 11.6A , 20.8/10.4A |
| No. Of Poles | 4 |
| Noise Level | 64 dBA |
| Output Rating | 15 KW , 25 Hp |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Power Factor 100% | 0.84 |
| Power Factor 50 % | 0.69 |
| Power Factor 75 % | 0.8 |
| Rated Amps | 28A , 59/29.5A |
| Rated Speed | 1475 RPM , 1770 RPM |
| Rated Torque | 71.2 lbs.-ft. , 74.2 lbs.-ft. |
| Rated Voltage | 230/460V , 415V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Screw Cap | Carbon Steel Sae 1010/20 |
| Service Factor | 1 , 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Terminal Box1 | Top |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V |
Shipping Info:
| Ship weight (kg) | 161.55 |
