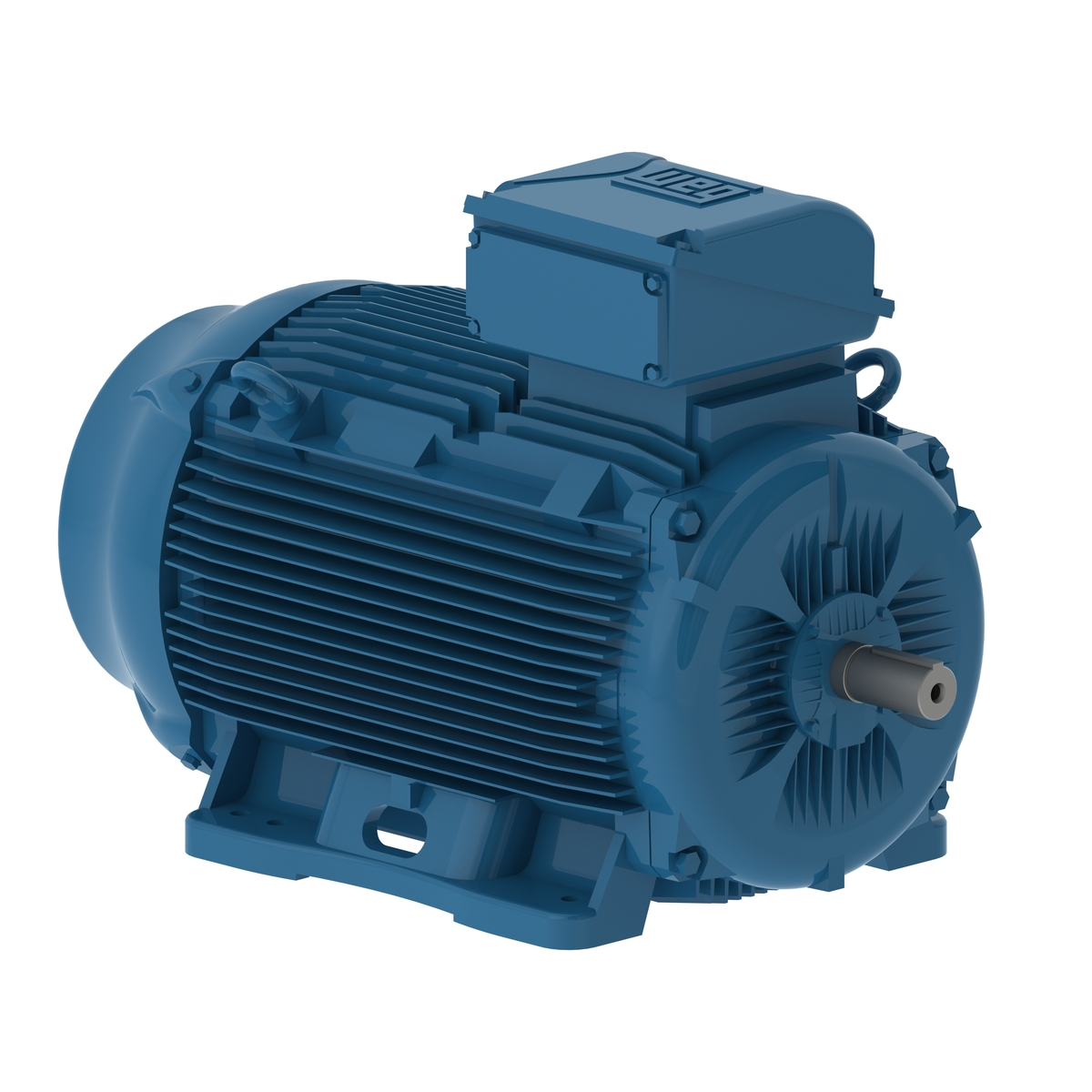

WEG 02212ET3E200LF3-W22 16993743 General Purpose Motor, Cast Iron 200L Frame, 30 HP, 1184 RPM, 230/460 V
Get it by Monday, Aug 24
€5,727.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 330% |
| Cold Locked Rotor Time | 41 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 200L |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 542/271A |
| Locked Rotor Time(hot) | 23 sec. |
| Locked Rotor Torque | 280% |
| Lrc | 7.3 |
| Main Terminal Box Hole | 2 x M50 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 10.8 lbs.-sq. ft. |
| Mounting | Foot-Mounted, B3T |
| Nde Bearing Seal | V Ring |
| No Load Amps | 36.8/18.4A |
| No. Of Poles | 6 |
| Noise Level | 62 dBA |
| Output Rating | 22 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Amps | 74.2/37.1A |
| Rated Speed | 1184 RPM |
| Rated Torque | 133 lbs.-ft. |
| Rated Voltage | 230/460V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Bmc 6 Pins |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 208-230/460/380-415V |
Shipping Info:
| Ship weight (kg) | 238.05 |
