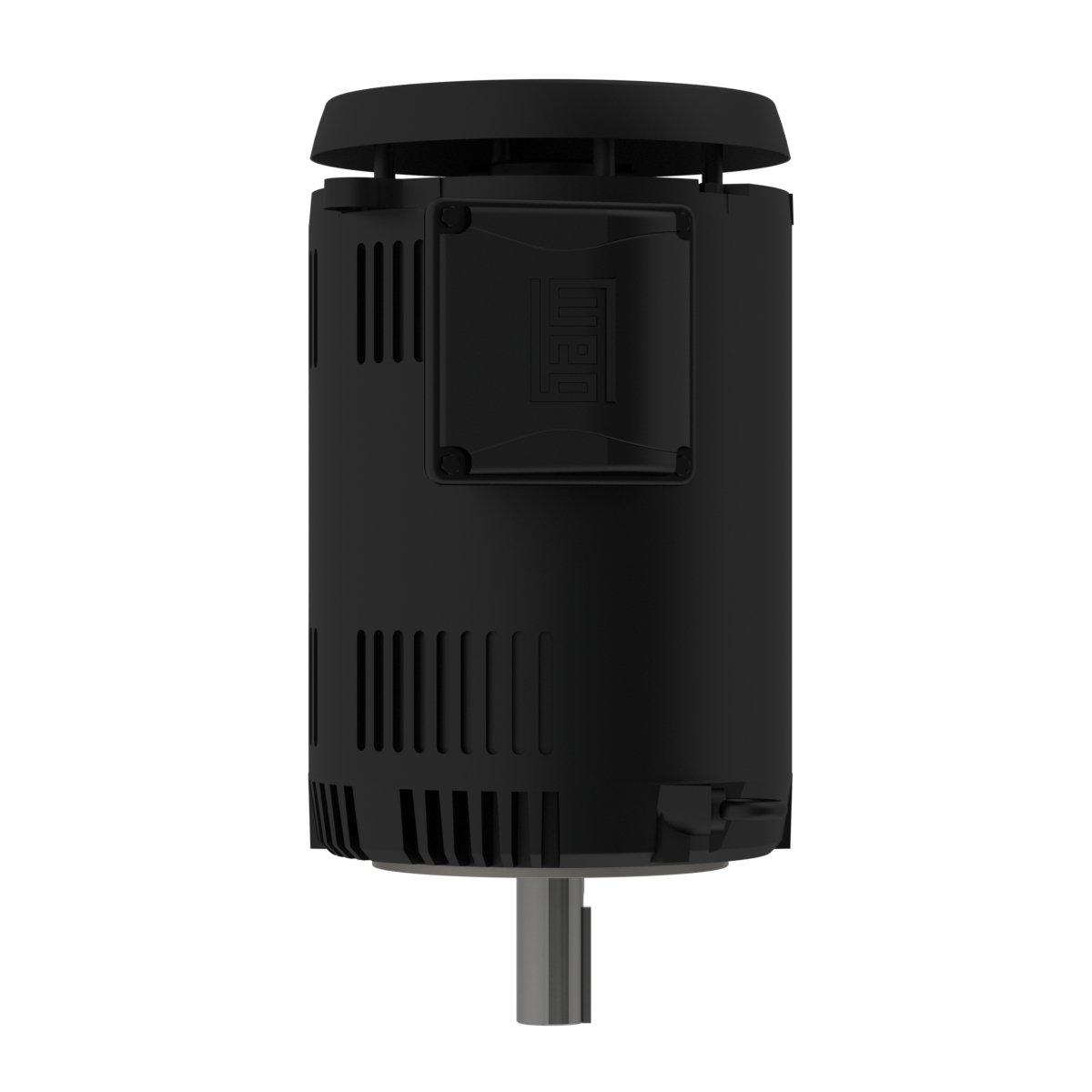

WEG 02036OT3ER254TC-S 14459479 General Purpose Motor, ODP RolLED Steel 254/6TC Frame, 20 HP, 2910 RPM, 415V, W-6 Mounting
Get it by Monday, Aug 24
€2,226.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 26.7A |
| Application | General Purpose |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design Material | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 229% |
| Cold Locked Rotor Time | 0 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 3:1 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | With |
| Duty Cycle | Cont.(S1) |
| Efficiency | 91% |
| Enclosure Iec | IP21 |
| Enclosure Nema | Odp |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 254/6tc |
| Frame Material | Rolled Steel |
| Frame Size Nema | NEMA 254/6tc |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Superior |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 144A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 150% |
| Lrc | 5.4x(Code F) |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.7848 lbs.-sq. ft. |
| Mount Arrangement | W6 |
| Mounting | Footless, W-6 |
| Nde Bearing Seal | No |
| No Load Amps | 9.87A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output Rating | 15 kW |
| Output Speed | 3525 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Torque | 36.1 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1 , 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 3% |
| Speed | 2910 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 81 |
