WEG 02018OT3E256JMV-S Electric Motor, 20Hp, 60Hz, 1800 Rpm | BC3HYY

WEG 02018OT3E256JMV-S 13912981 Pump Motor, 20 HP, 1800 RPM, 208/230/460V, ODP, 256JMV, RolLED Steel

Item: BC3HYYModel: 02018OT3E256JMV-SCross Ref: 13912981
Check Availability
In Stock

Get it by Tuesday, Apr 7

€2,982.54 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Breakdown Torque 290%
Cable Press Material Sem
Connection Cables Quantity 12
Ct Speed Range 2:1
Drip Cover With
Duty Cycle S1
Efficiency 93%
Efficiency @ 100% 93%
Efficiency @ 50% 92.4%
Efficiency @ 75% 92.4%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Frame 256JMV
Frame Material Rolled Steel
Frame Size 254/6JM
Frequency 60 Hz
Grounding Lugs Superior
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L.r. Amperes 158/315A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 240%
Main Terminal Box Hole 1.732"
Moment Of Inertia (j) 2.23 lbs.-sq. ft.
Mounting W-6
Mounting Arrangement W6
Mounting Orientation Vertical
Nema Frame NEMA 254-6JM
Nema Mount C Face No Base
No Load Amps 11.4/22.9A
Noise Level 64 dBA
Number Of Poles 4
Output Hp 20 hp
Output Kw 15 kW
Output Rating 20 hp
Output Rpm 1770 RPM
Overload Protection No
Phase 3
Power Factor 50% 0.63
Power Factor 75% 0.74
Power Factor_100% 0.81
Rated Current 25/50A
Rated Speed 1770 RPM
Rated Torque 59.3 lbs.-ft.
Regreasing System At Drive End And Non-Drive End
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 1.67%
Space Heater None
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 115.2
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageFrequencyFrameSynchronous SpeedMountingOutput RatingTerminal BoxRpmPrice

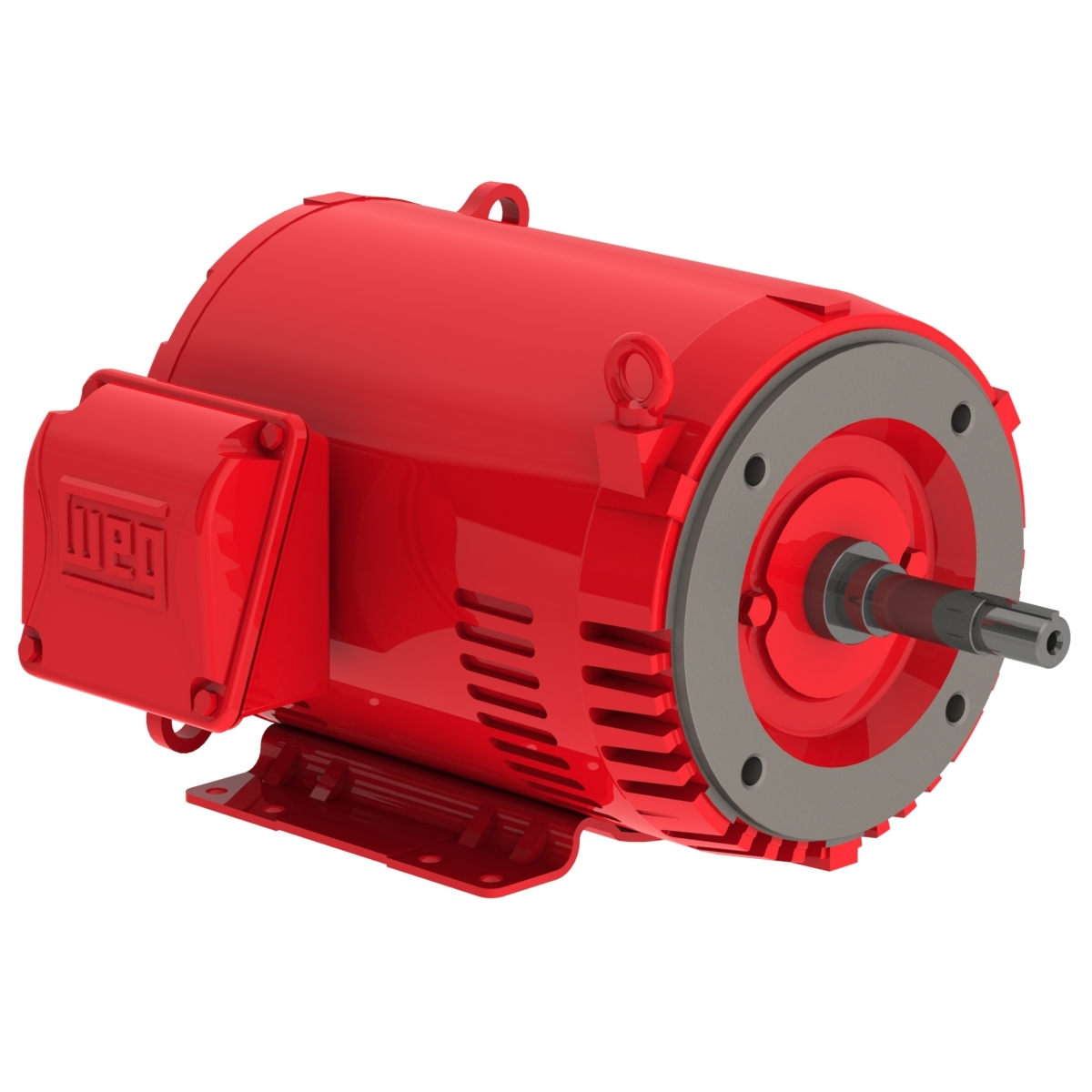

WEG 01036OP3EFP213JM-S Electric Motor, 10Hp, 60Hz, 3600 Rpm | BC3ETF 01036OP3EFP213JM-S230/460/190-220/380-415V AC50/60 Hz213/5JM3600 RPMFoot Mounted10 hpLeft Position3400-3600 RPM€1,323.13

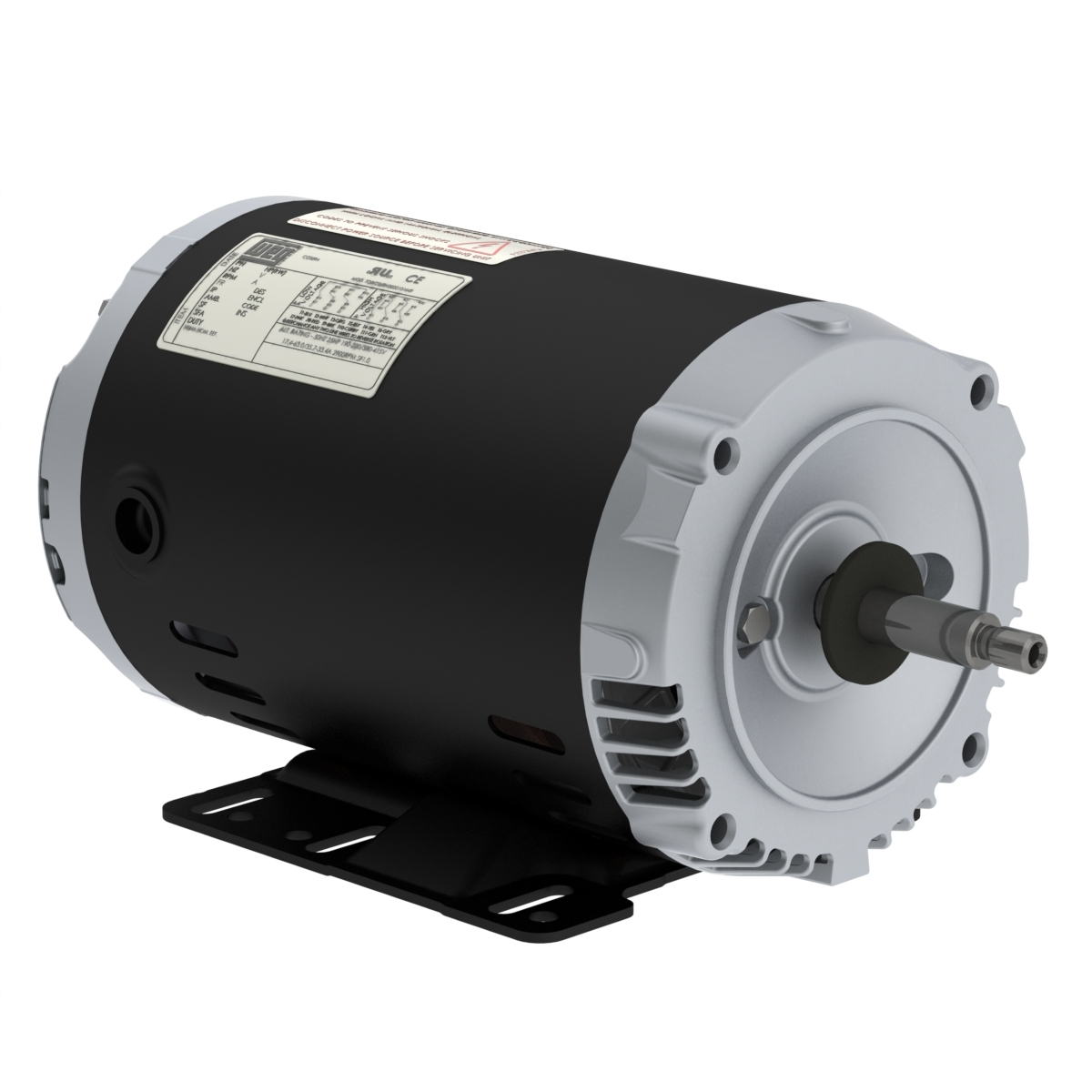

WEG 00536OT3EJP56J-S Electric Motor, 5Hp, 60Hz, 3600 Rpm | BC3HNV 00536OT3EJP56J-S208-230/460/190/380V AC60 Hz56HJ3600 RPMFoot Mounted5 hpWithout Terminal Box3400-3600 RPM€756.40
WEG 00718OT3J213T-S Electric Motor, 7.5Hp, 60Hz, 1800 Rpm | BC3HPV 00718OT3J213T-S380V AC60 Hz213/5T1800 RPMFoot Mounted7 1/2 hpLeft Position1700-1800 RPM€1,172.78
WEG 01518OT3E254JMV-S Electric Motor, 15Hp, 60Hz, 1800 Rpm | BC3HXQ 01518OT3E254JMV-S208/230/460V AC50/60 Hz254JMV1800 RPMW-615 hpLeft Position1700-1800 RPM€2,481.99
WEG 02018OT3V256JM-S Electric Motor, 20Hp, 60Hz, 1800 Rpm | BC3HZC 02018OT3V256JM-S200/400V60 Hz256JM1800 RPMF-120 hpLeft Position1700-1800 RPM€2,789.48

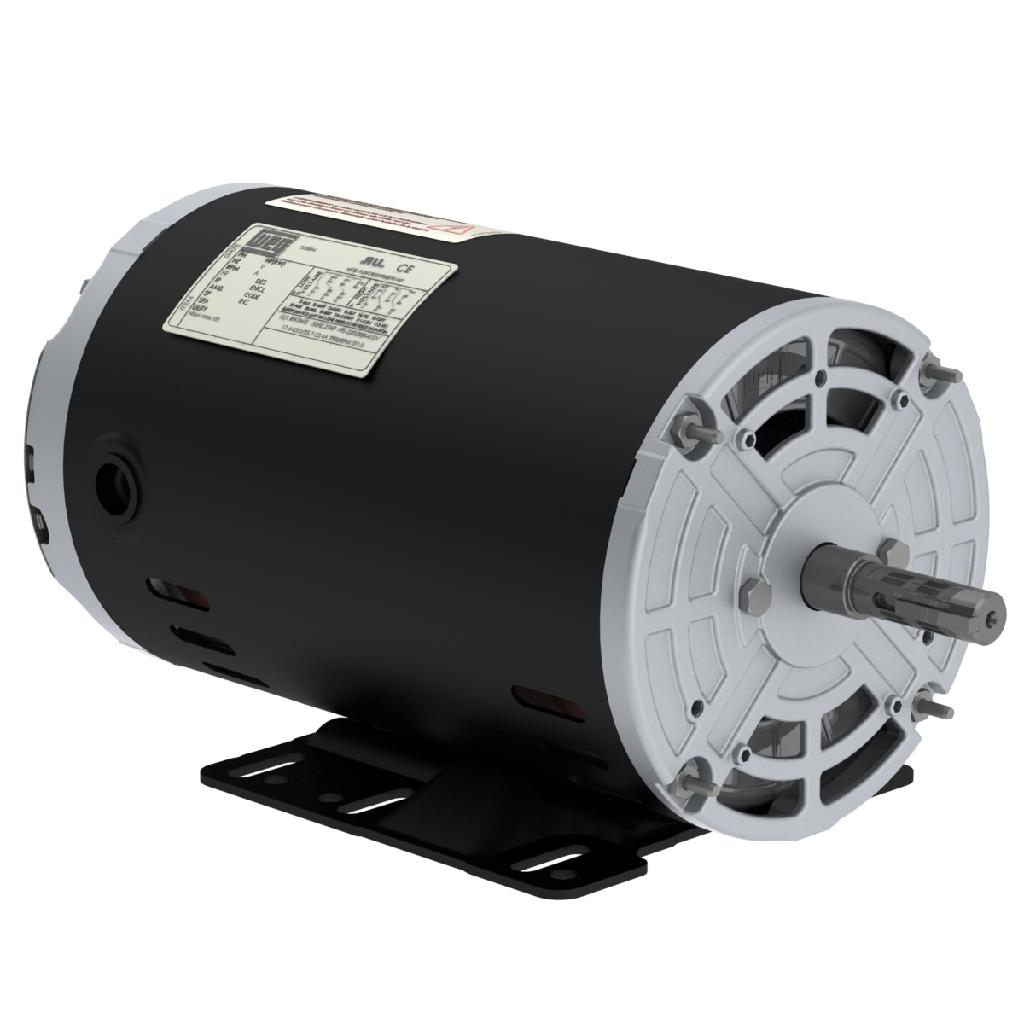

00218OT3E56Z-S--------€484.73
