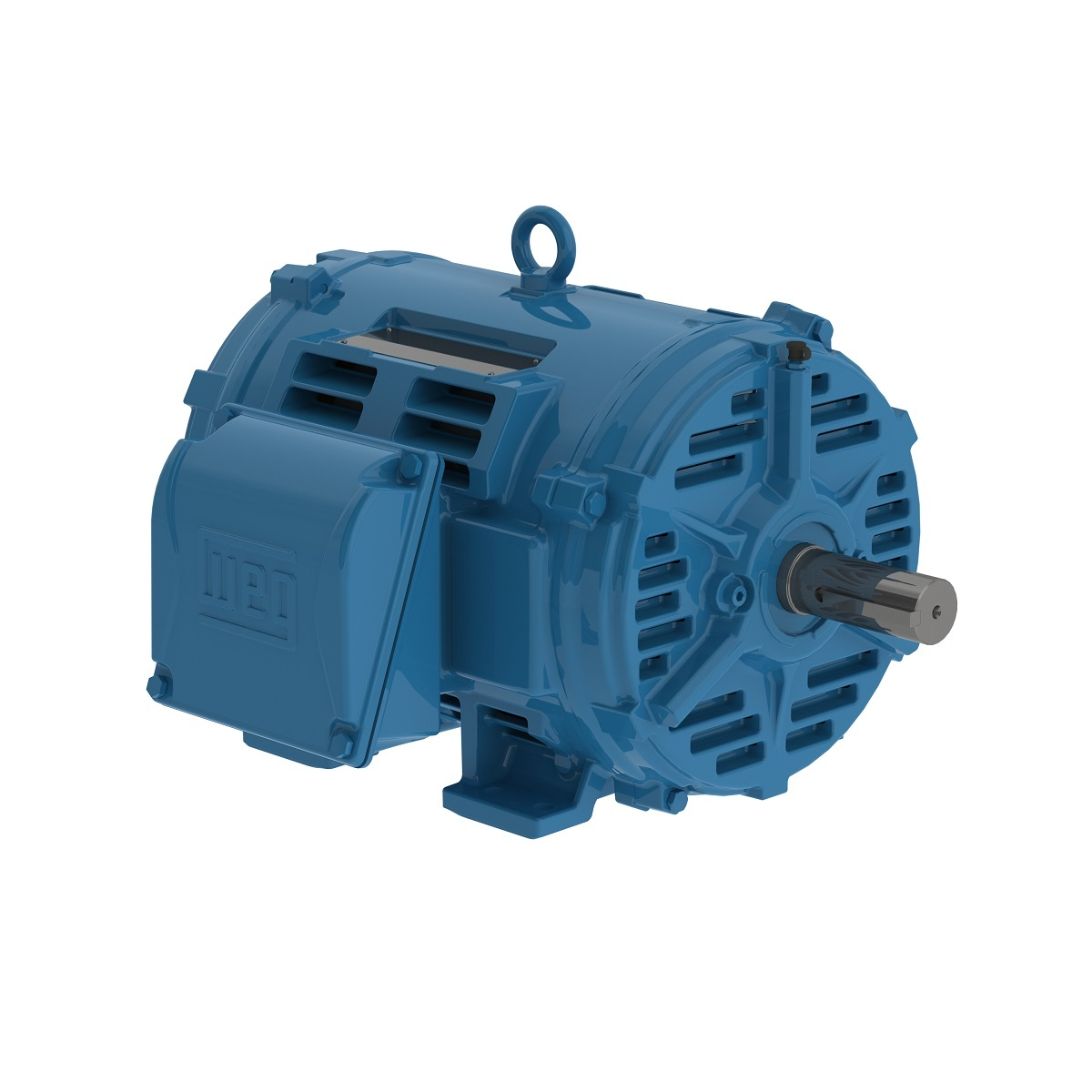

WEG 01518OT3E254T-W40 14366964 General Purpose Motor, ODP Cast Iron 254T Frame, 10 HP, 1480 RPM, 415V, F-1 Mounting
Get it by Monday, Aug 24
€1,762.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 14.7A |
| Application | General Purpose |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Body Design Material | Cast Iron |
| Bolt Material | Carbon Steel |
| Break Down Torque | 360% |
| Cold Locked Rotor Time | 54 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 3:1 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 93% |
| Enclosure Iec | IP23 |
| Enclosure Nema | Odp |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 254T |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 254t |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| L. R. Amps | 103A |
| Locked Rotor Time(hot) | 30 sec. |
| Locked Rotor Torque | 310% |
| Lrc | 7x(Code J) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 2.72 lbs.-sq. ft. |
| Mount Arrangement | F1 |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 7.8A |
| No. Of Poles | 4 |
| Noise Level | 62 dBA |
| Output Rating | 7.5 kW |
| Output Speed | 1775 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Product Datasheet | weg-01518ot3e254t-w40.pdf |
| Rated Speed | 1480 RPM |
| Rated Torque | 35.5 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 , 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 111.15 |
| Country of Origin | BR |
