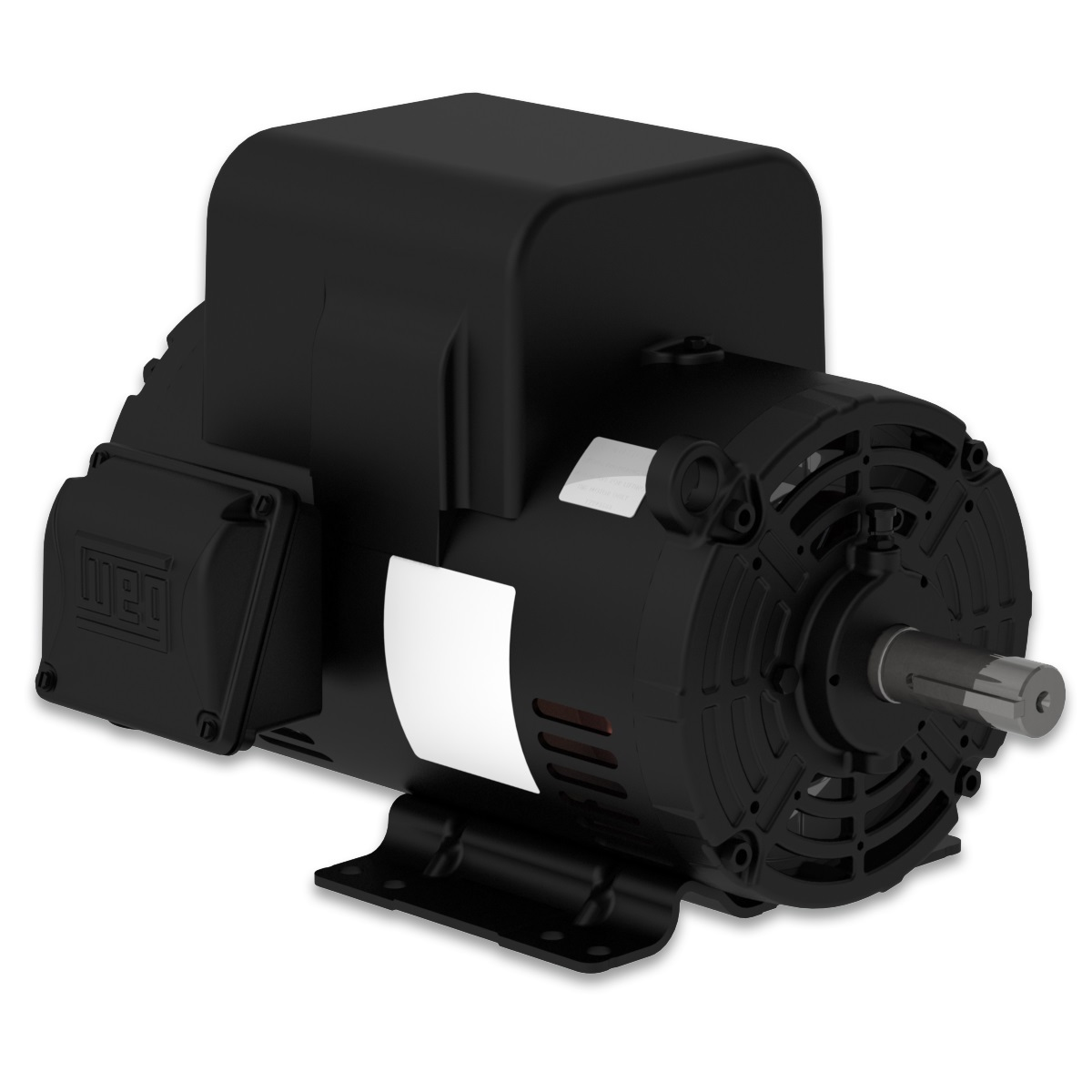

WEG 00736OS1C184T-S 15099745 General Purpose Motor, ODP RolLED Steel 182/4T Frame, 7.5 HP, 3500 RPM, 208-230 V
Get it by Monday, Aug 24
€1,146.55 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 10 sec. |
| De Bearing Seal | No |
| Design | L |
| Duty Cycle | S1 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Insulation Class | Class F |
| Item | 2229709 |
| L. R. Amps | 219-197A |
| Locked Rotor Time(hot) | 6 sec. |
| Lrc | 6.9x(Code G) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| No. Of Poles | 2 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Tropicalized Painting | Without |
| Voltage | 208-230V |
Shipping Info:
| Ship weight (kg) | 37.67 |
