WEG 00736OP3EFP184TC-S Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BB9ERK

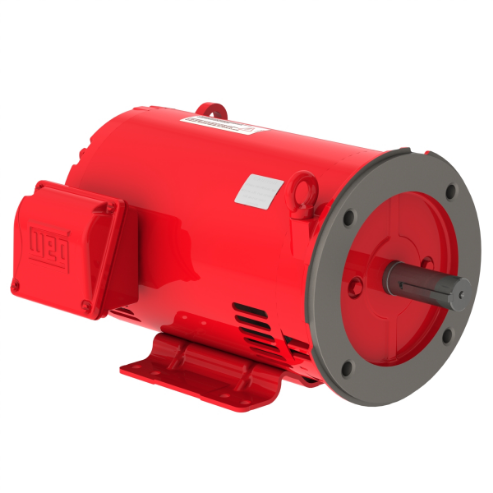

WEG 00736OP3EFP184TC-S 12736505 Fire Pump Motor, 7.5 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 184TC Frame, Footed

Item: BB9ERKModel: 00736OP3EFP184TC-SCross Ref: 12736505
Check Availability
In Stock

Get it by Tuesday, Aug 25

€819.82 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 17.7/8.86A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 280%
Cold Locked Rotor Time 14 sec.
Composition Steel
Connection Cables Quantity 12
Design B
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 74%
Efficiency @ 1 % 89%
Efficiency @ 75 % 84%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Type C
Frame 182/4TC
Frame Material Rolled Steel
Frame Size 184TC
Frequency 50/60 Hz , 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 8 sec.
Hp 7 1/2 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 124/62A
Locked Rotor Torque 180%
Lrc 7.0X(Code H)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.1559 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3500 RPM
Mounting Foot Mounted
No Load Amps 6.99/3.49A
No. Of Poles 2
Noise Level 65 dBA
Output 7 1/2 hp
Output Rating 7 1/2 hp
Overload Protector Without Overload Protector
Painting RAL3002 207N (ISO 12944-C2)
Phase 3
Power Factor @ 1 % 87.5
Power Factor @ 50 % 87.5
Power Factor @ 75 % 88.5
Product Datasheet weg-00736op3efp184tc-s.pdf
Resilient Base Without
Rotation CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 11.3 lbs.-ft.
Tropicalized Painting Without
Voltage 230/460V , 230/460V AC

Shipping Info:

Ship weight (kg) 31.5
Ship height (cm)25.4
Ship length (cm)50.8
Ship width (cm)25.4
Country of OriginUS
