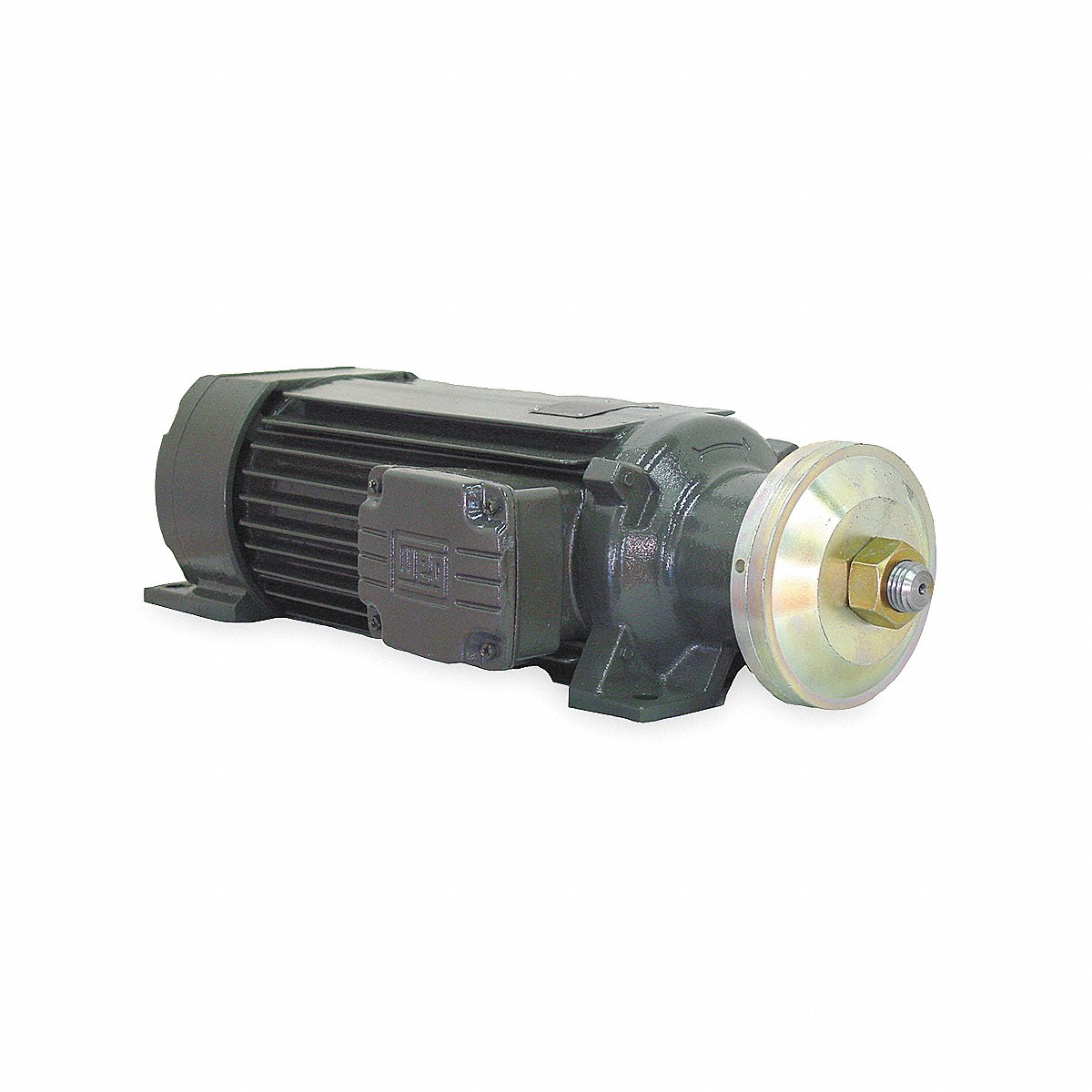

WEG 00736ES3ESA80LL 13574406 Saw Arbor Motor, 7.5 HP, 3490 RPM, 208-230/460v, CW Rotation
Get it by Wednesday, Aug 19
5.00% off
€2,164.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Saw Arbor Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 40°C |
| Amps | 9.76/19.5-21.6A |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Bearing Type | Ball |
| Break Down Torque | 459% |
| Cold Locked Rotor Time | 9 sec. |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Connection Cables Quantity | 9 |
| De Bearing Seal | No |
| Degree Of Protection | IP54 |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | Continuous , S6 |
| Efficiency | 50% |
| Efficiency 50% | 85.2% |
| Efficiency 75% | 87% |
| Efficiency @ 100% | 87.4% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 80L , 80L/MS |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 21.6-19.5/9.76A , 9.76/19.5-21.6A |
| Grade | Grade 316 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip and Bake Polyester |
| Included | Terminal Box |
| Ins. Class | Class F |
| Insulation Class | Class F |
| L. R. Amps | 199-179/89.8A , 89.8/179-199A |
| Length Less Shaft | 19 15/16" |
| Locked Rotor Time | 5 sec. |
| Locked Rotor Time (cold) | 9 sec. |
| Locked Rotor Time(hot) | 5 sec. |
| Locked Rotor Torque | 400% |
| Lrc | 9.2 |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Type | RWG |
| Material | Stainless Steel |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.1448 lbs.-sq. ft. |
| Motor Application | Power Tool |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting | B3R |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3490 RPM |
| Nde Bearing Seal | No |
| No Load Amps | 4.4/7.59-8.8A |
| No. Of Poles | 2 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Noise | 62 dBA |
| Noise Level | 62 dBA |
| Nominal Efficiency | 87.4% |
| Output Rating | 5.5 kW |
| Overall Length | 22 1/2" |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.64 |
| Power Factor 75% | 0.75 |
| Product Datasheet | weg-00736es3esa80ll.pdf |
| Rotation | CW |
| Screw Cap | Stainless Steel |
| Service Factor | 1 |
| Shaft Dia. | 1 3/16" |
| Shaft Length | 2 1/2" |
| Shaft Material | Carbon Steel |
| Slip | 3.06% |
| Speed | 3490 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 11.1 lbs.-ft. , 11.3 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 57.6 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 34.54 |
| HS code | 8501524000 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Nameplate Speed | Full Load Amps | Hp | Nominal Efficiency | No. Of Poles | Speed | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00336ES3ESA80SL | 208-230/460V AC | 3500 RPM | 9.49-8.58/4.29A | 3 hp | 80.5% | 2 | 3500 RPM | 4.5 lbs.-ft. | €1,485.15 | |
| 00536ES3ESA80ML | 208-230/460V AC | 3470 RPM | 13.3-14.7/6.7A | 5 hp | 80.5% | 2 | 3470 RPM | 7.47 lbs.-ft. | €1,733.47 | |
| 00518ES3ESA90LL | 208-230/460V AC | 1740 RPM | 14.1-15.5/7A | 5 hp | 84.5% | 4 | 1740 RPM | 14.9 lbs.-ft. | €2,444.71 | |
| 00736ES3HSA80LL | 575V | 3600 RPM | 7.8A | 7 1/2 hp | 87.4% | 2 | 3400-3600 RPM | 11.1 lbs.-ft. | - | RFQ
|
| 00718ES3ESA90LL | 208-230/460V AC | 1730 RPM | 22.4-20.3/10.1A | 7 1/2 hp | 85.3% | 4 | 1730 RPM | 22.5 lbs.-ft. | €2,654.92 | |
| 01036ES3ESA90LL | 208-230/460V AC | 3480 RPM | 27.2-24.6/12.3A | 10 hp | 85% | 2 | 3480 RPM | 14.9 lbs.-ft. | €2,747.83 | |
| 01036ES3HSA90LL | 575V | 3600 RPM | 9.83A | 10 hp | 85% | 2 | 3400-3600 RPM | 14.9 lbs.-ft. | - | RFQ
|
