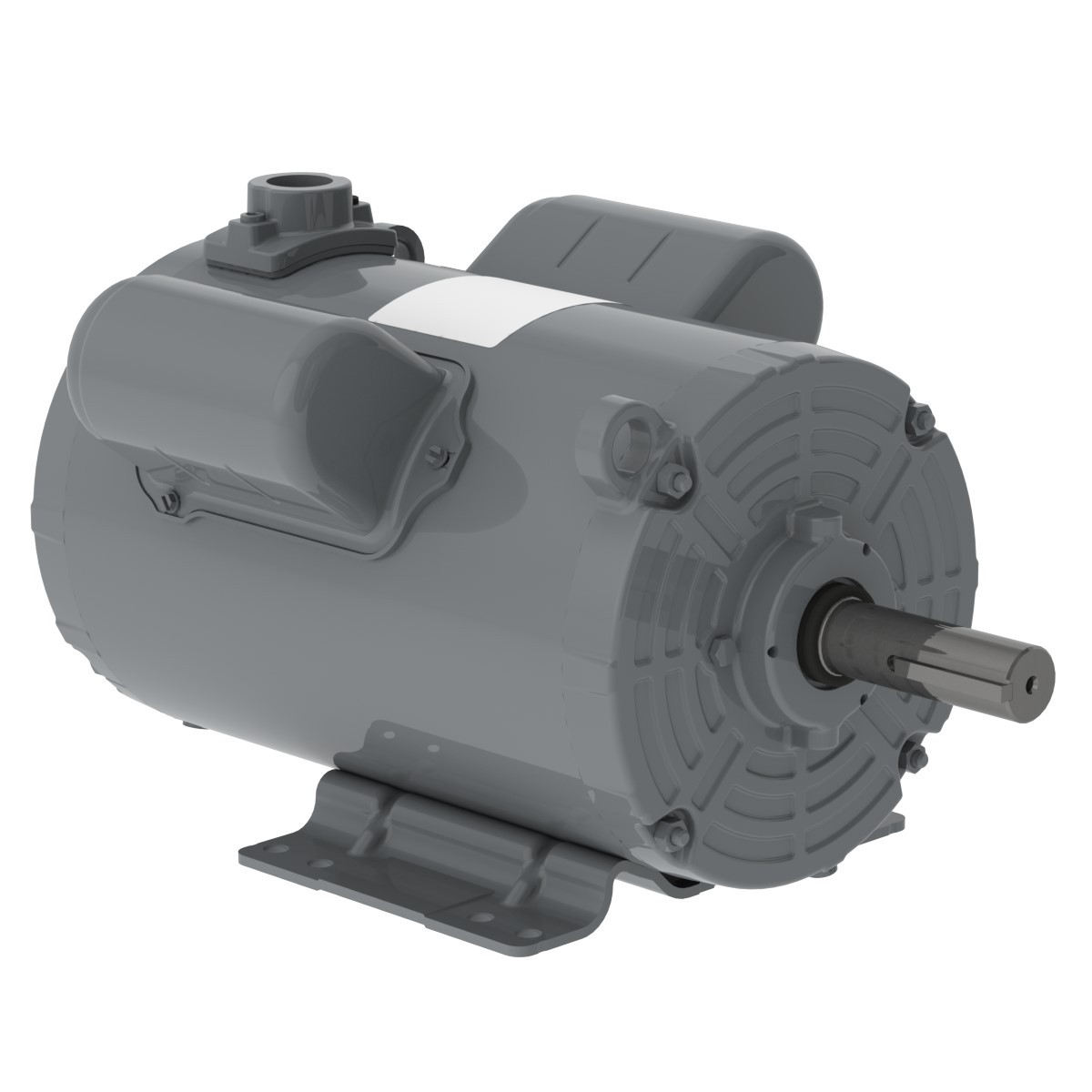

WEG 00736AP1DGD182TZ-S 13976275 Farm Duty Motor, Grain Dryer-Axial, 5.0-7.5 HP, 2 Poles, 182/4TZ Frame, 1 Phase, 230V, 60 Hz, Foot-mounted
Get it by Monday, Aug 24
€1,546.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 29.1A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 260% |
| Cold Locked Rotor Time | 9 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 182/4tz |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Garde 1040/45 |
| Grounding Lugs Type | In The Endshield |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 224A |
| Locked Rotor Time(hot) | 5 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 7.7x(Code H) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Mounting | Foot-Mounted, F-3 |
| Nde Bearing Seal | No |
| No Load Amps | 4.9A |
| No. Of Poles | 2 |
| Noise Level | 72 dBA |
| Output Rating | 5.5 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Torque | 11.2 lbs.-ft. |
| Rated Voltage | 230V |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.56% |
| Speed | 3508 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 230V |
| Winding Thermal Protection | Thermostat 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 37.31 |
