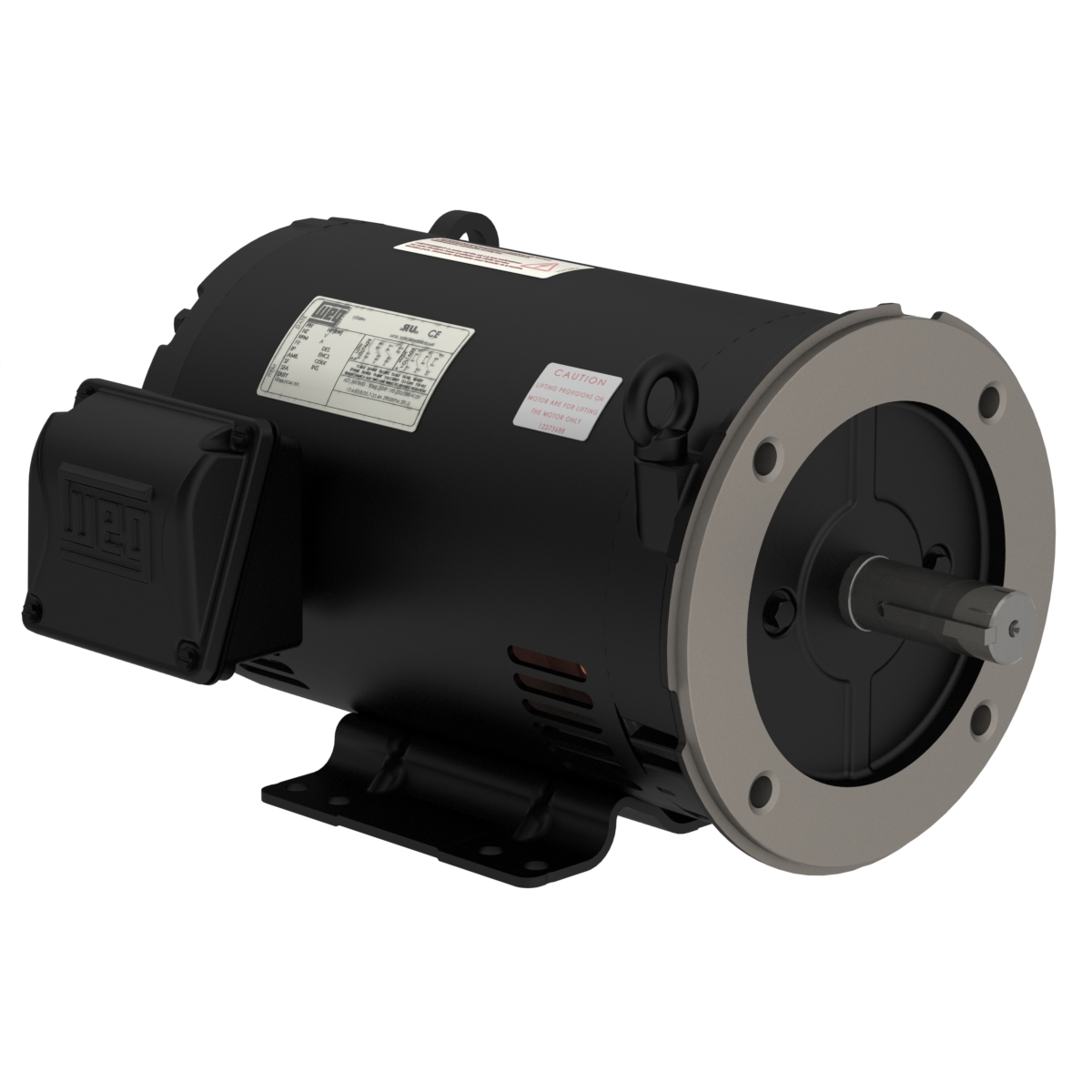

WEG 00536OT3E182TC-SG 13163400 General Purpose Motor, 5 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 182TC Frame, Footed
Get it by Thursday, Feb 19
€959.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 21 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 88% |
| Efficiency At 50 % | 73% |
| Efficiency At 75 % | 83% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 12 sec. |
| Hp | 5 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 92.7/46.4A |
| Locked Rotor Torque | 190% |
| Lrc | 7.6X(Code J) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1386 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3510 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 5.15/2.58A |
| No. Of Poles | 2 |
| Noise Level | 65 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 85.5 |
| Power Factor At 75 % | 86.5 |
| Rated Current | 12.2/6.1A |
| Rated Torque | 7.48 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 29.7 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Model | Phase | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Frame | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 1.15 | 60 Hz | 15 hp | 14.9A | 1775 RPM | 254TC | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 1.15 | 60 Hz | 20 hp | 19.8A | 1770 RPM | 256TC | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 1.15 | 60 Hz | 25 hp | 23.9A | 1770 RPM | 284TC | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 1.15 | 60 Hz | 30 hp | 28.3A | 1770 RPM | 286TC | - | €3,744.49 | |
| 20018OT3G445T | 3 | 1.15 | 60 Hz | 200 hp | 229A | 1780 RPM | 445T | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 1.15 | 60 Hz | 150 hp | 162A | 3555 RPM | 405TS | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 1.15 | 60 Hz | 200 hp | 228A | 3575 RPM | 444TS | - | €20,850.80 |
