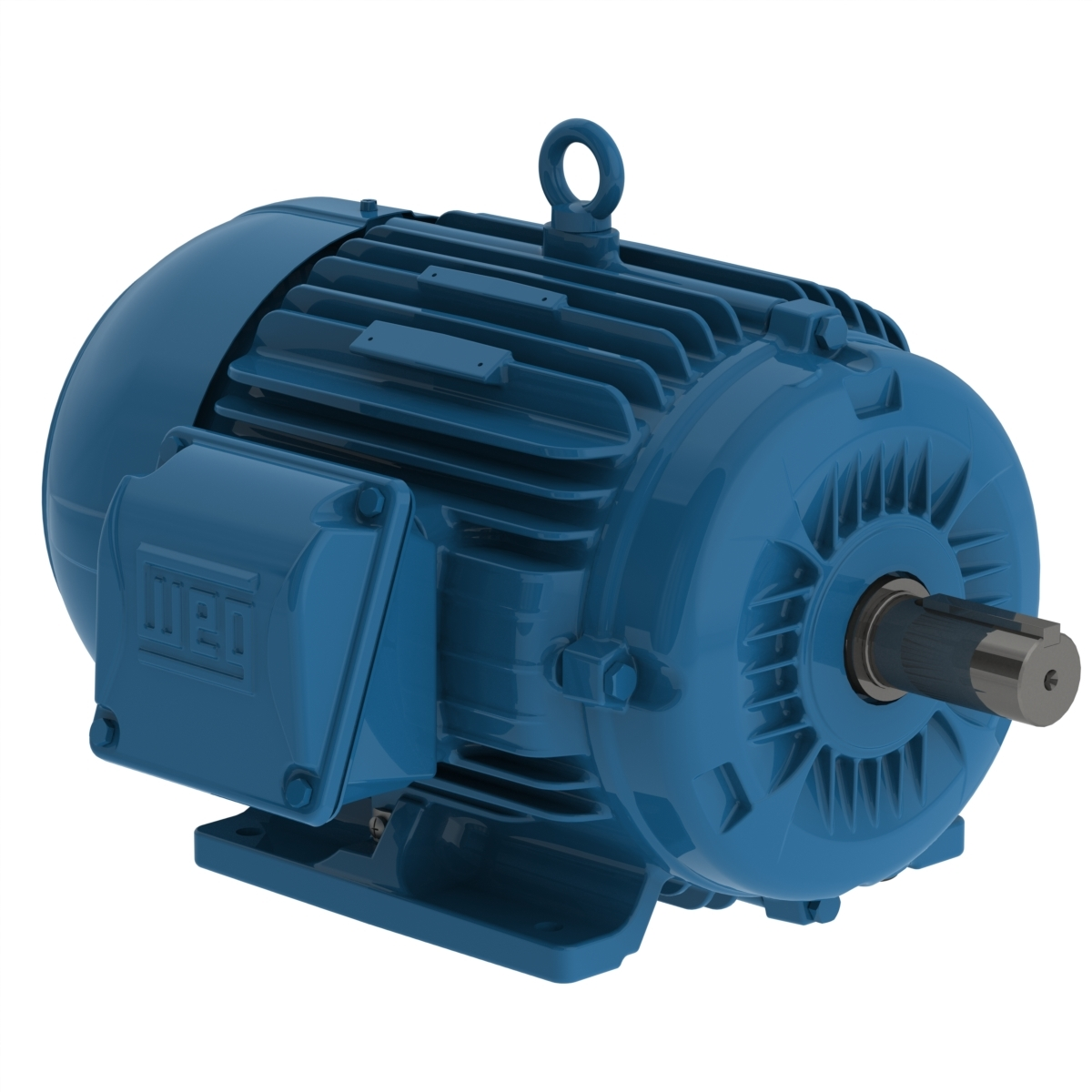

WEG 00536ET3E184T-W22G 14694057 AC Motor, 3600 rpm, 60/50 Hz, 230/460/380 V, 5 HP
Get it by Tuesday, Aug 25
€1,244.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 6.61A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 23 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 182/4t |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 49.6A |
| Locked Rotor Time(hot) | 13 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.5x(Code J) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.2233 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 2.1A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output Rating | 3.7 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 2895 RPM |
| Rated Torque | 9.07 lbs.-ft. |
| Rotation | CW And CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 3.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 415V |
Shipping Info:
| Ship weight (kg) | 41.36 |
