WEG 00518XT3E184JP Electric Motor, 5Hp, 60Hz, 1800 Rpm | BC3HLX

WEG 00518XT3E184JP 14602355 Explosion Proof Motor, 5 HP, 4 Poles, 182/4TZ Frame, 3 Phase, 230/460//380V, 60//50 Hz, Foot-mounted

Item: BC3HLXModel: 00518XT3E184JPCross Ref: 14602355
Check Availability
In Stock

Get it by Tuesday, Mar 31

€1,871.66 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hazardous Location Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Breakdown Torque 300%
Cold Locked Rotor Time 43 sec.
Composition Cast Iron
Connection Cables Quantity 9
Cooling IC411
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 89.5%
Efficiency @ 50% 86.5%
Efficiency @ 75% 88.5%
Efficiency At 1 % 79%
Efficiency At 50 % 59%
Efficiency At 75 % 71%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Special
Frame 182/4TZ
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hp 5 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 93.3/46.6A
L.r. Amperes 46.6/93.3A
Locked Rotor Time (cold) 43 sec.
Locked Rotor Time (hot) 24 sec.
Locked Rotor Torque 229%
Lrc 7.1X(Code J)
Main Terminal Box Hole 3/4"
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 0.3695 lbs.-sq. ft.
Moment Of Inertia (j) 0.3695 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Shaft Rotation Clockwise/Counter Clockwise
Mounting F-1
Mounting Type F-1
Nameplate Rpm 1750 RPM
No Load Amps 3.1/6.2A , 6.2/3.1A
No. Of Poles 4
Noise Level 56 dBA
Output 5 hp
Output Rating 3.7 kW , 5 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL 5009 202P (ISO 12944 - C4)
Phase 3
Power Factor 50% 0.59
Power Factor 75% 0.71
Power Factor At 1 % 89.5
Power Factor At 50 % 86.5
Power Factor At 75 % 88.5
Power Factor_100% 0.79
Product Datasheet weg-00518xt3e184jp.pdf
Rated Current 13.1/6.57A , 6.57/13.1A
Rated Speed 1750 RPM
Rated Torque 15 lbs.-ft.
Rated Voltage 230/460V AC
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Stainless Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V
Winding Thermal Protection Thermostat - 2 wires 1 per phase 155°C

Shipping Info:

Ship weight (kg) 61.2
Ship height (cm)27.94
Ship length (cm)45.72
Ship width (cm)35.56
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpNameplate RpmMounting TypeOutput RatingConnection Cables QuantityOutputBreak-down TorquePrice

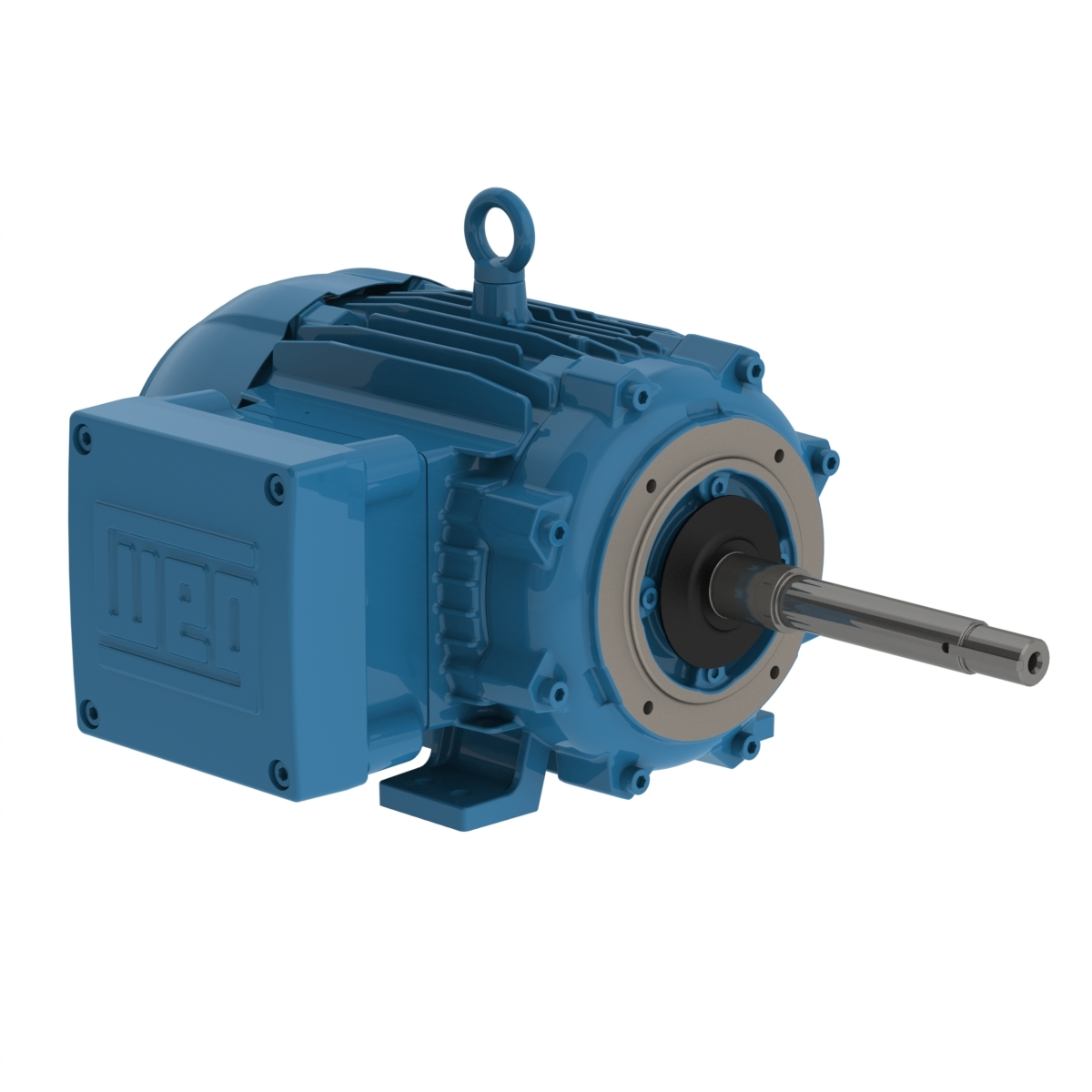

WEG 00318XT3E182JP Electric Motor, 3Hp, 60Hz, 1800 Rpm | BC3HHA 00318XT3E182JP230/460/380V3 hp1760 RPMF-13 hp93 hp320%€1,844.92
WEG 00318XT3H182JP Electric Motor, 3Hp, 60Hz, 1800 Rpm | BC3HHB 00318XT3H182JP575V AC3 hp1760 RPMF-13 hp63 hp320%€1,844.92

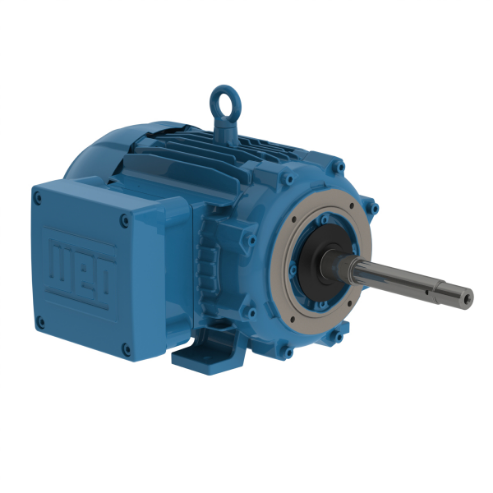

WEG 00518XT3H184JP Electric Motor, 5Hp, 60Hz, 1800 Rpm | BC3HLY 00518XT3H184JP575V AC5 hp1750 RPMFoot Mounted5 hp65 hp300%€1,871.66
