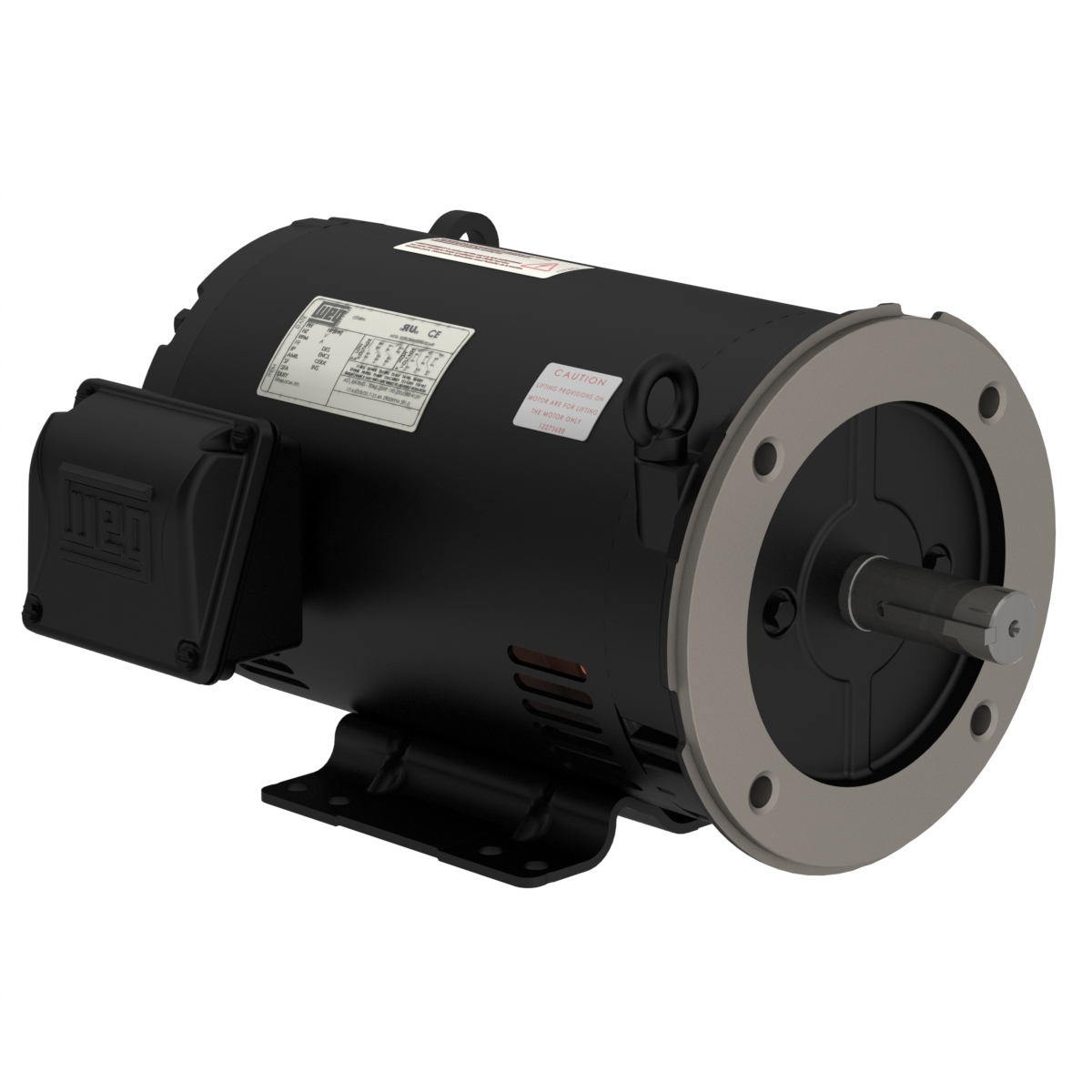

WEG 00518OT3V184TC-S 13413920 Electric Motor, 5Hp, 60Hz, 1800 Rpm
Get it by Friday, Dec 19
€796.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 310% |
| Cold Locked Rotor Time | 21 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 82% |
| Efficiency At 50 % | 63% |
| Efficiency At 75 % | 76% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 12 sec. |
| Hp | 5 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 105/52.4A |
| Locked Rotor Torque | 200% |
| Lrc | 7.2X(Code J) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.4003 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 7.24/3.62A |
| No. Of Poles | 4 |
| Noise Level | 55 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protector | Without Overload Protector |
| Phase | 3 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 88.5 |
| Power Factor At 75 % | 88.5 |
| Rated Current | 14.6/7.28A |
| Rated Torque | 14.9 lbs.-ft. |
| Rated Voltage | 200/400V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 200/400V AC |
Shipping Info:
| Ship weight (kg) | 43.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Frequency | Service Factor | Hp | Nameplate Rpm | Full Load Amps | Ambient Temp. | Duty Cycle | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3E254TC-S | 60 Hz | 1.15 | 15 hp | 1775 RPM | 37.2/18.6A | 104°F | S1 | Rolled Steel | €2,797.45 | |
| 01518OT3H254TC-S | 60 Hz | 1.15 | 15 hp | 1775 RPM | 14.9A | 104°F | S1 | Rolled Steel | €2,065.50 | |
| 02018OT3E256TC-S | 60 Hz | 1.15 | 20 hp | 1770 RPM | 24.7A | 104°F | Continuous | Steel | €2,905.08 | |
| 02018OT3H256TC-S | 60 Hz | 1.15 | 20 hp | 1770 RPM | 20A | 104°F | Continuous | Steel | €2,527.71 | |
| 00118OT3E143TC-S | 60 Hz | 1.15 | 1 hp | 1760 RPM | 3/1.5A | 104°F | S1 | Rolled Steel | €602.79 | |
| 00158OT3E145TC-S | 60 Hz | 1.15 | 1 1/2 hp | 1760 RPM | 4.14/2.07A | 104°F | S1 | Rolled Steel | €688.89 | |
| 00158OT3H145TC-S | 60 Hz | 1.15 | 1 1/2 hp | 1760 RPM | 1.66A | 104°F | S1 | Rolled Steel | €688.89 |
