WEG 00518OT3J184T-S 14015656 General Purpose Motor, ODP RolLED Steel 182/4T Frame, 5 HP, 1760 RPM, 380 V
Get it by Friday, Jul 3
€812.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 7.66A |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 310% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 6 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 63% , 88.5% |
| Efficiency 75% | 88.5% |
| Efficiency @ 1 % | 82% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 76% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 12 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 55.2A |
| Locked Rotor Time (cold) | 21 sec. |
| Locked Rotor Time(hot) | 12 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 7.2X(Code J) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.4003 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4003 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1760 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 3.81A |
| No. Of Poles | 4 |
| Noise Level | 55 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.82 |
| Power Factor 50% | 0.63 |
| Power Factor 75% | 0.76 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 88.5 |
| Power Factor @ 75 % | 88.5 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Speed | 1700-1800 RPM , 1760 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 14.9 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380V , 380V AC |
Shipping Info:
| Ship weight (kg) | 35.01 |
Product Variants
| Product | Model | Voltage | Phase | Service Factor | Frame | Ambient Temp. | Duty Cycle | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00718OT3P213TF2 | 200V AC | 3 | 1.15 | 213T | -20°C to +40°C | Continuous | 8.74A | Foot Mounted | €1,085.70 | |
 |

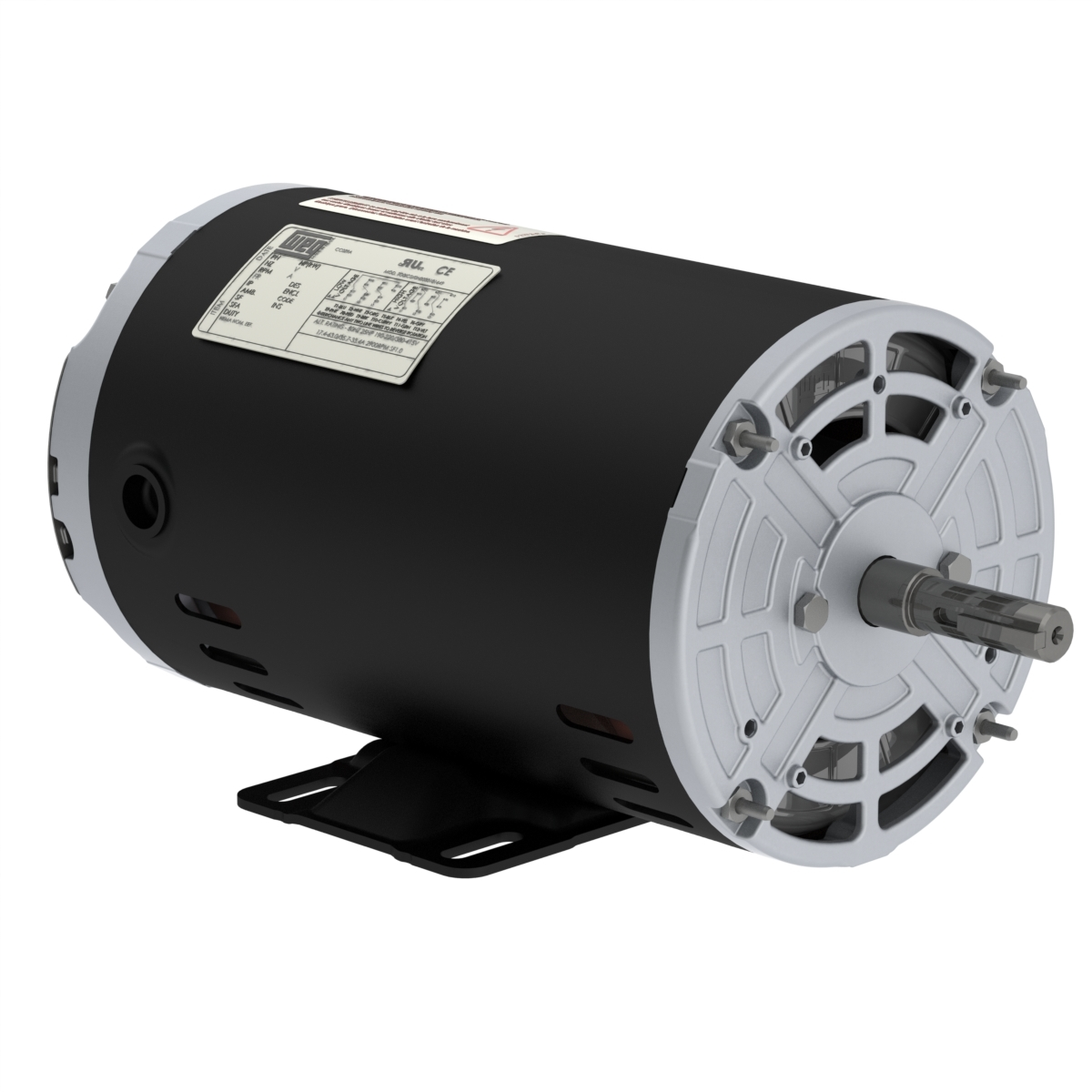

00118OT3J56-S | 380/660V AC | 3 | 1.15 | 56 | -20°C to +50°C | S1 | 1.33/0.767A | Foot Mounted | €450.97 | |
|
00158OT3J56-S | 380/660V AC | 3 | 1.15 | 56H | -20°C to +50°C | S1 | 1.57/0.906A | Foot Mounted | €465.30 | |
 |
00218OT1BO56Z-S | 115/208-230V AC | 1 | 1.15 | 56HZ | -20°C to +40°C | S1 | 6.2/2.67-3.1A | Foot Mounted | €658.59 | |
 |

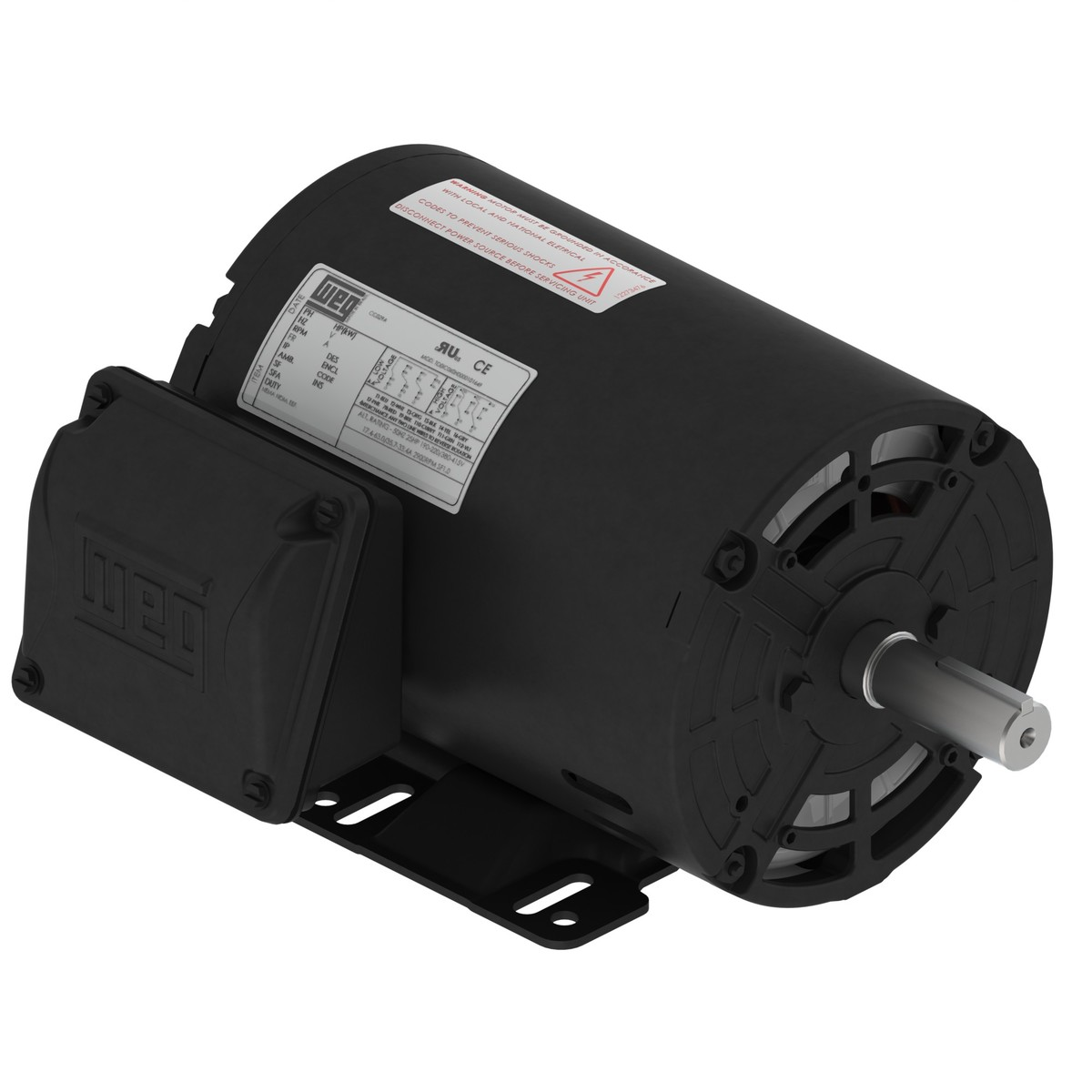

00218OT3J145T-S | 380/660V AC | 3 | 1.15 | 143/5T | -20°C to +50°C | S1 | 1.66/0.956A | Foot Mounted | €634.72 | |
|
00318OT3J182T-S | 380V | 3 | 1.15 | 182/4T | -20°C to +40°C | S1 | 2.51A | Foot Mounted | €675.28 | |
|
01018OT3J215T-S | 380V | 3 | 1.15 | 213/5T | -20°C to +40°C | S1 | 7.25A | Foot Mounted | €1,420.96 |
