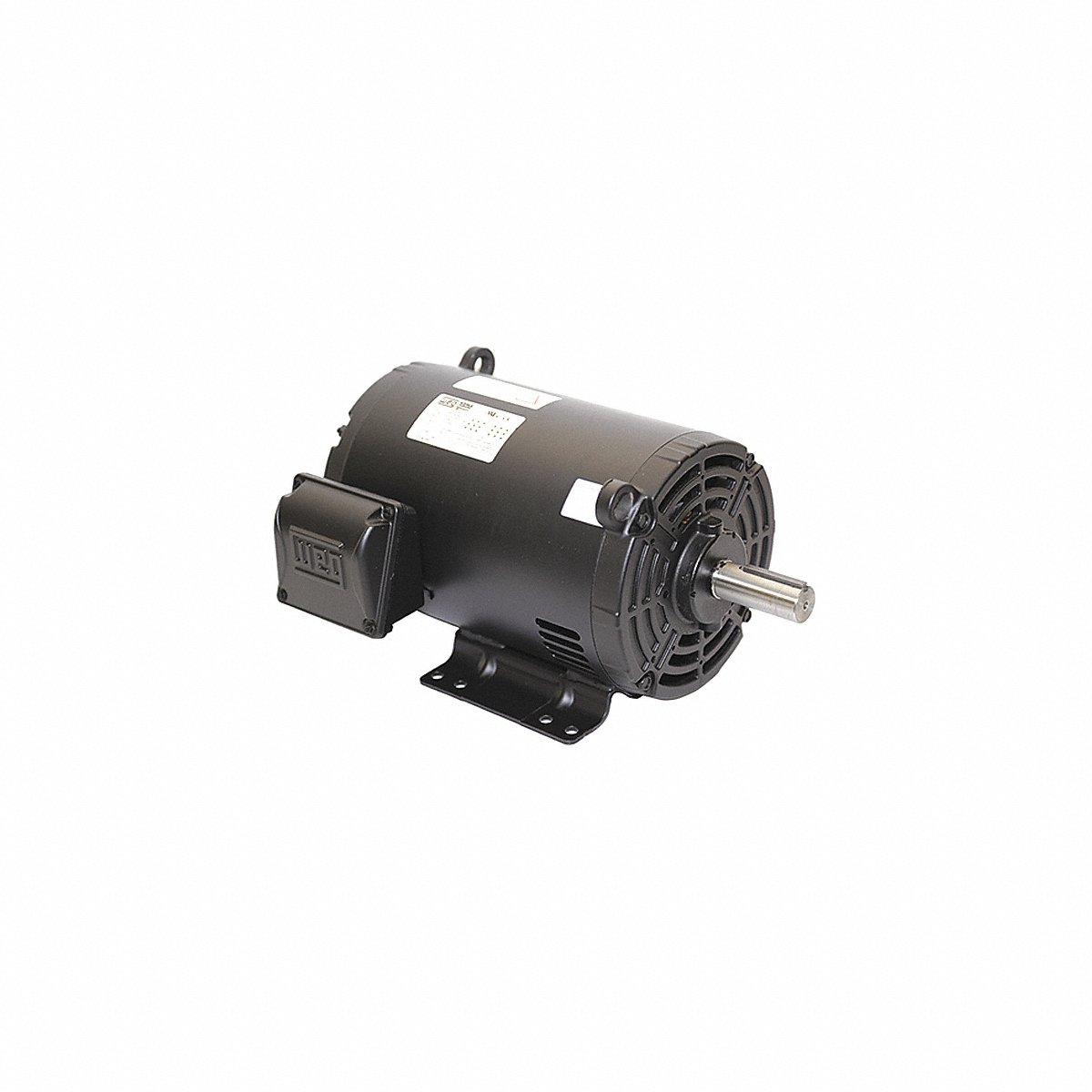

WEG 00518OT3H184T-S 12630643 Motor, 3 Phase, 5 Hp, 1760 182/4T 575V, 5.06A
Get it by Monday, Dec 22
10.00% off
€741.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Cc Number | CC029A |
| Duty Cycle | S1 |
| Efficiency | 89.5% |
| Efficiency Group | Premium |
| Enclosure Type | ODP |
| Frame | 182/4T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.06A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 5 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 13 9/16" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| Nema Design | None |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Number | CC029A |
| Number Of Poles | 4 |
| Overall Length | 16 5/16" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 575V AC |
| Warranty | 3 yrs. |
| Weight | 83 lbs. |
Shipping Info:
| Ship weight (kg) | 36.9 |
| Ship height (cm) | 32 |
| Ship length (cm) | 41.43 |
| Ship width (cm) | 37.34 |
| Country of Origin | US |
Product Details:
- No. of Speeds : 1
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3E254T-S | 3 | 60 Hz | 1.15 | 15 hp | 37.2/18.6A | 1775 RPM | 254/6T | S1 | €2,131.82 | |
| 01518OT3H254T-S | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 1775 RPM | 254/6T | S1 | €2,120.09 | |
| 02036OT3E254T-S | 3 | 60 Hz | 1.15 | 20 hp | 23.8A | 3525 RPM | 254/6T | S1 | €1,984.36 | |
| 02036OT3H254T-S | 3 | 60 Hz | 1.15 | 20 hp | 19A | 3525 RPM | 254/6T | S1 | €2,033.18 | |
| 02018OT3E256T-S | 3 | 50/60 Hz | 1.15 | 20 hp | 50/25A | 1770 RPM | 254/6T | Continuous | €2,426.55 | |
| 02018OT3H256T-S | 3 | 60 Hz | 1.15 | 20 hp | 20A | 1770 RPM | 254/6T | Continuous | €2,094.60 | |
| 02536OT3E256T-S | 3 | 60 Hz | 1.15 | 25 hp | 58.2/29.1A | 3530 RPM | 254/6T | S1 | €2,412.93 |
