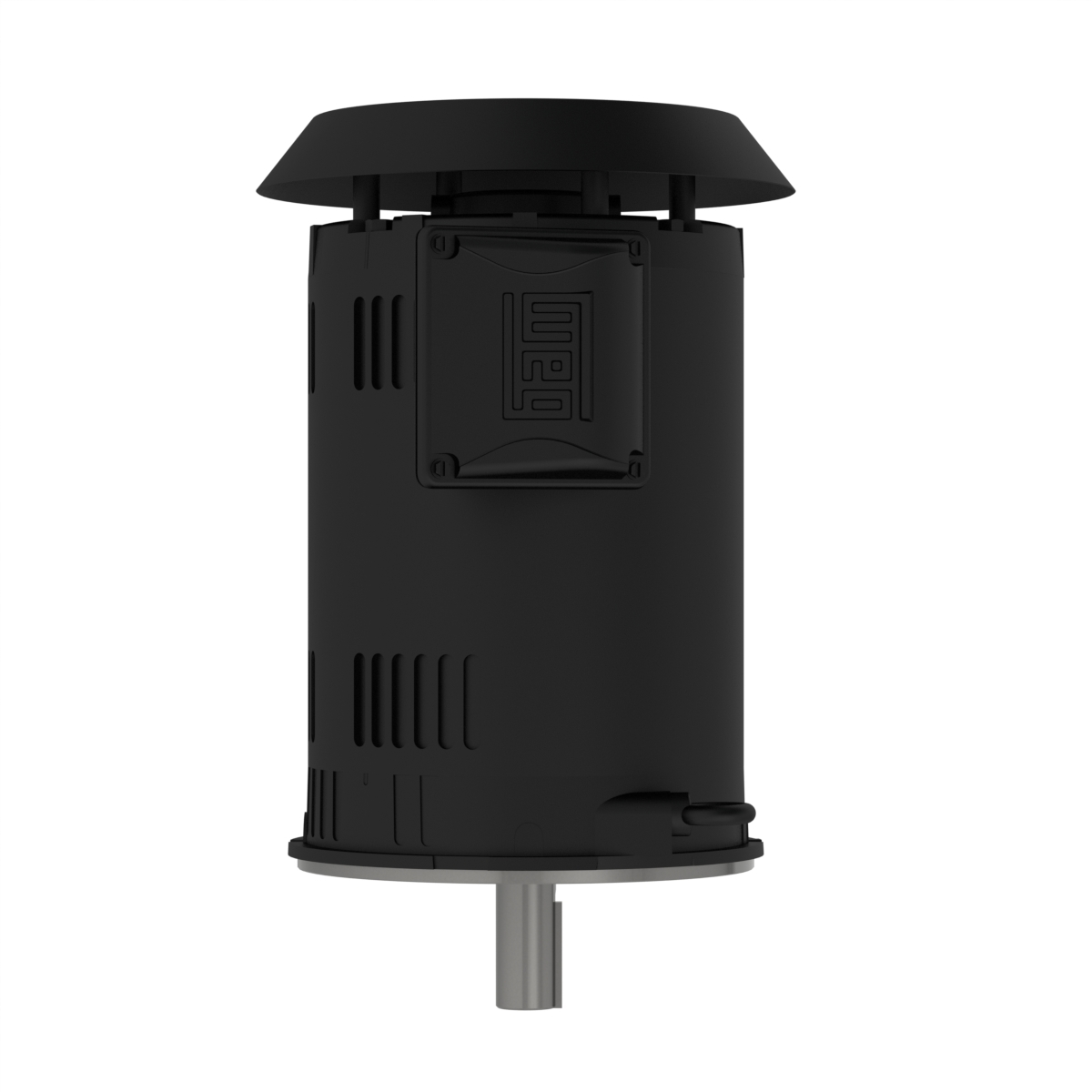

WEG 00518OT3ER184TC-S 13528749 General Purpose Motor, ODP RolLED Steel 182/4TC Frame, 5 HP, 1455 RPM, 415 V
Get it by Tuesday, Aug 25
€866.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 7.18A |
| Application | General Purpose |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design Material | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 270% |
| Cold Locked Rotor Time | 19 sec. |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 5:1 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | With |
| Duty Cycle | Cont.(S1) |
| Efficiency | 89.5% |
| Enclosure Iec | IP21 |
| Enclosure Nema | Odp |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 182/4tc |
| Frame Material | Rolled Steel |
| Frame Size Nema | NEMA 182/4tc |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 50.3A |
| Locked Rotor Time(hot) | 11 sec. |
| Locked Rotor Torque | 180% |
| Lrc | 7x(Code J) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.4003 lbs.-sq. ft. |
| Mount Arrangement | W6 |
| Mounting | Footless, W-6 |
| Nde Bearing Seal | No |
| No Load Amps | 3.61A |
| No. Of Poles | 4 |
| Noise Level | 53 dBA |
| Output Rating | 3.7 kW |
| Output Speed | 1760 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1455 RPM |
| Rated Torque | 18 lbs.-ft. |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 3% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 38.57 |
