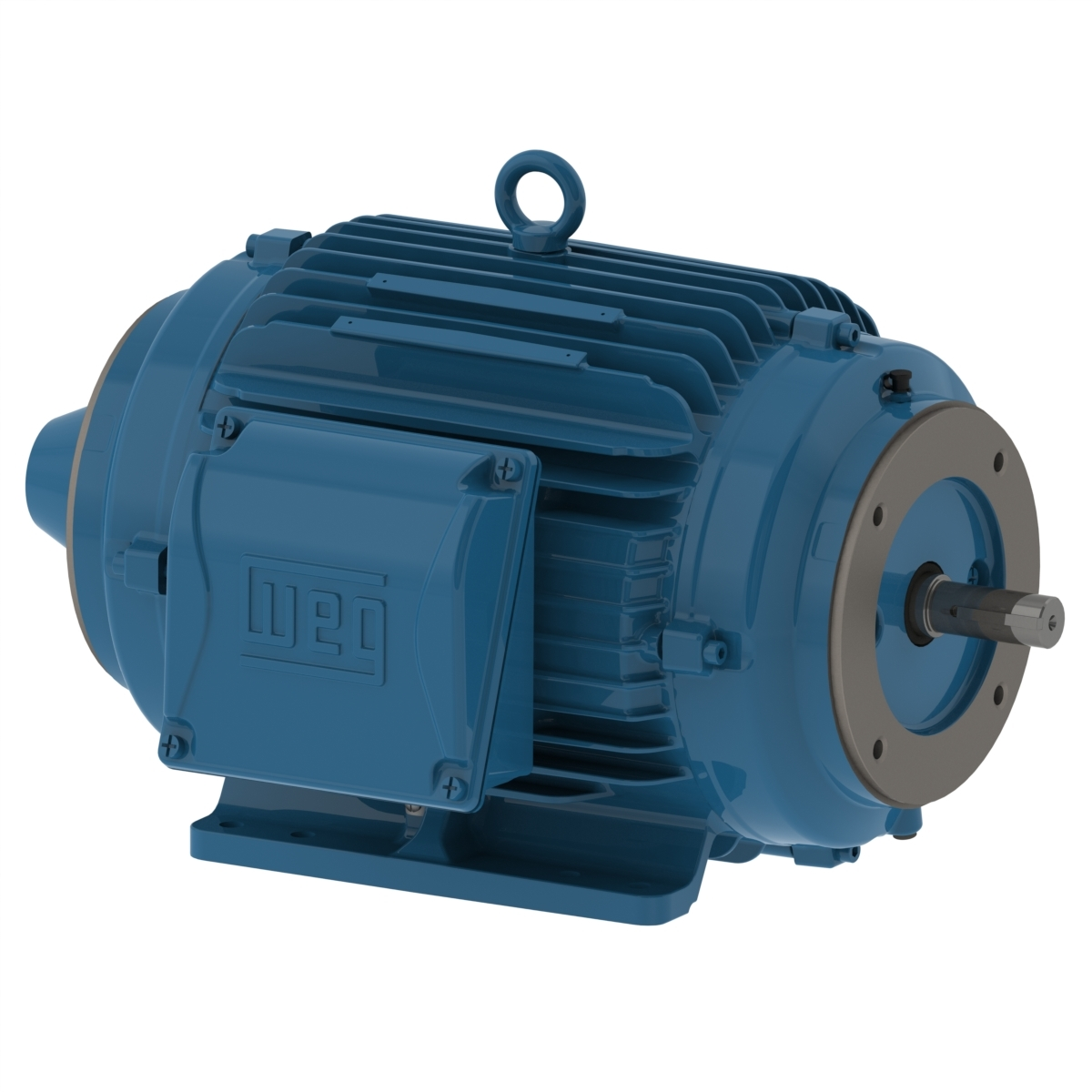

WEG 00518NT3HVD184TC-W22 16396565 Vector Duty Line-TENV Motor, 5 HP, 4 Poles, 182/4TCZ Frame, 3 Phase, 575 V, 60 Hz, IC410-TENV, Foot Mounted
Get it by Friday, Aug 28
€1,638.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 5.69A |
| Balancing Method | Without Key |
| Bearing Cap | No |
| Break Down Torque | 420% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC410 |
| Enclosure Type | Tenv |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 182/4tcz |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | H |
| L. R. Amps | 54.1A |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 340% |
| Lrc | 9.5x(Code M) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.4627 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 3.3A |
| No. Of Poles | 4 |
| Output Rating | 3.7 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Torque | 14.9 lbs.-ft. |
| Rated Voltage | 575V |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.17% |
| Speed | 1761 RPM |
| Starting Method | Vfd |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V |
| Winding Thermal Protection | Thermostat 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 49.5 |
