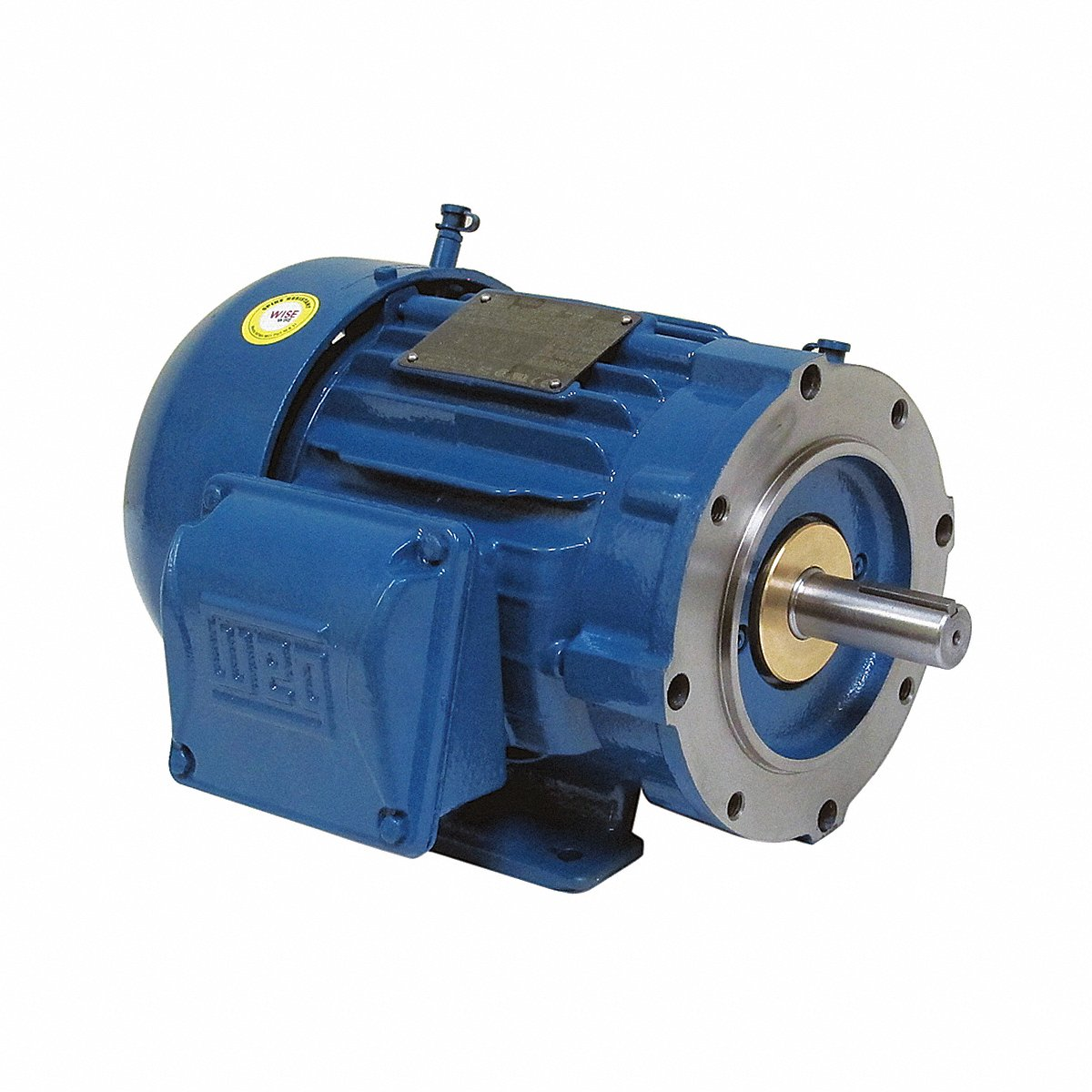

WEG 00518ET3H184TC-W22 11605715 General Purpose Motor, TEFC Cast Iron 182/4TC Frame, 5 HP, 1750 RPM, 575 V
Get it by Tuesday, Feb 24
5.00% off
€991.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency | 89.5% |
| Enclosure Type | Tefc |
| Frame | 184TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 5.16A |
| Hp | 5 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Length Less Shaft | 13 1/8" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| Nema Design | None |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Number Of Poles | 4 |
| Overall Length | 15 7/8" |
| Phase | 3 |
| Product Datasheet | weg-00518et3h184tc-w22.pdf |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 575V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 54.45 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 40.28 |
| Ship width (cm) | 50.8 |
| HS code | 8501524000 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | 1700-1800 RPM | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | 1700-1800 RPM | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | 1700-1800 RPM | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | 25 hp | 30.6A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | 30 hp | 36A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €5,926.53 |
