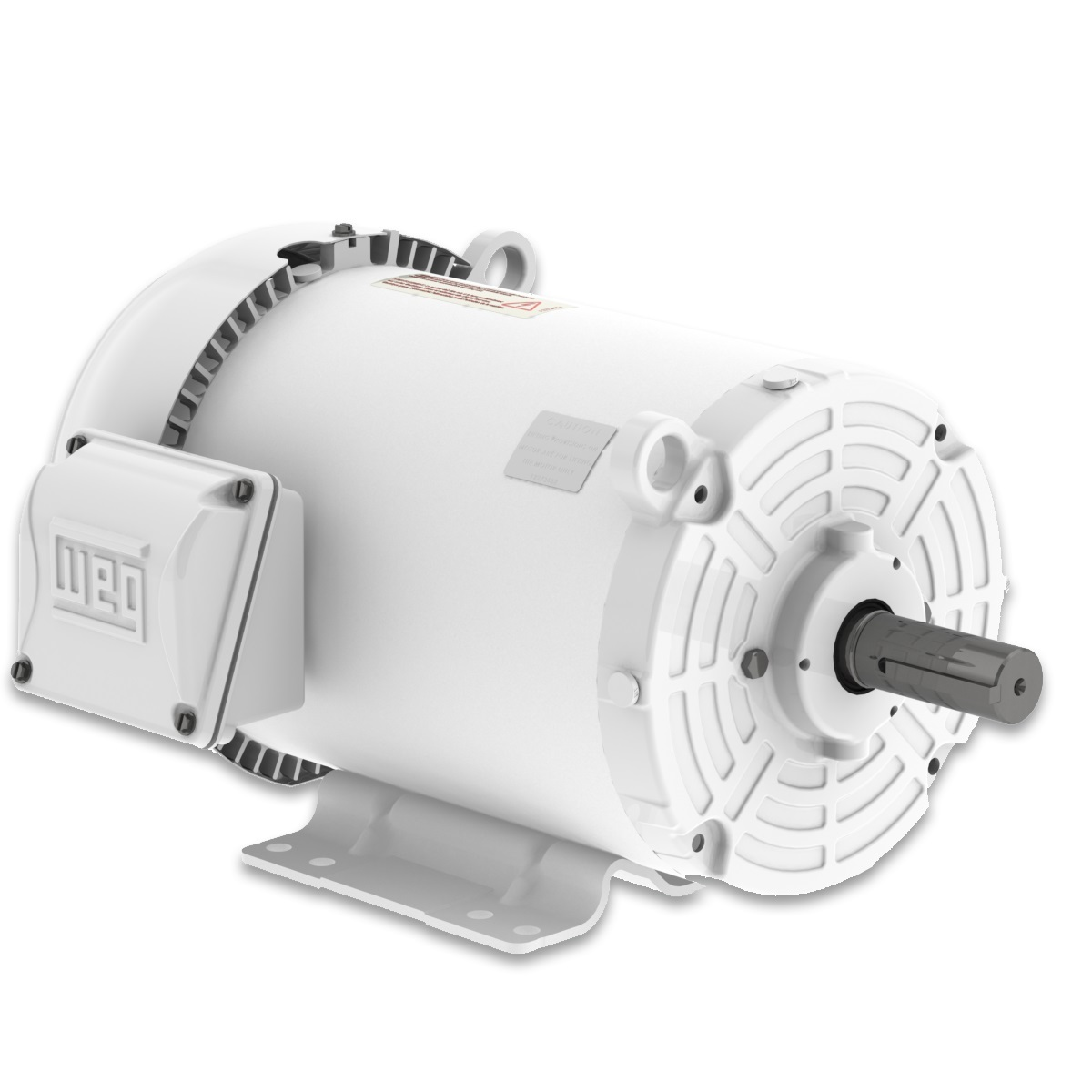

WEG 00518ET3EHW184T-S 15228354 Washdown Motor, 5 HP, 4 Poles, 182/4T Frame, 3 Phase, 230/460//190-220/380-415 V, 60 Hz, IC411 TEFC, Foot Mounted
Get it by Tuesday, Aug 25
€1,936.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 7.47A |
| Application | Washdown Epoxy |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Body Design Material | Rolled Steel |
| Bolt Material | Stainless Steel |
| Break Down Torque | 290% |
| Cold Locked Rotor Time | 14 sec. |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 2:1 |
| De Bearing Seal | Viton Oil Seal With Stainless Steel Spring |
| Degree Of Protection | IP56 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 89.5% |
| Enclosure Iec | IP56 |
| Enclosure Nema | Tefc |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 182/4t |
| Frame Material | Rolled Steel |
| Frame Size Nema | NEMA 182/4t |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| Joints Seal | Permatex |
| L. R. Amps | 50.8A |
| Locked Rotor Time(hot) | 8 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6.8x(Code J) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.013 kg/sq. m |
| Mount Arrangement | F1 |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | Viton Oil Seal With Stainless Steel Spring |
| No Load Amps | 4.16A |
| No. Of Poles | 4 |
| Noise Level | 53 dBA |
| Output Rating | 3.7 kW |
| Output Speed | 1750/1425 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1440 RPM |
| Rated Torque | 2.52 kgf-m |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1 , 1.15 |
| Shaft Grounded Sgr | Not Available |
| Shaft Material | AISI 304 Stainless Steel |
| Slip | 4% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | 200°C |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Complete (200H) |
| Voltage | 230/460/190-220/380-415V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 33.73 |
