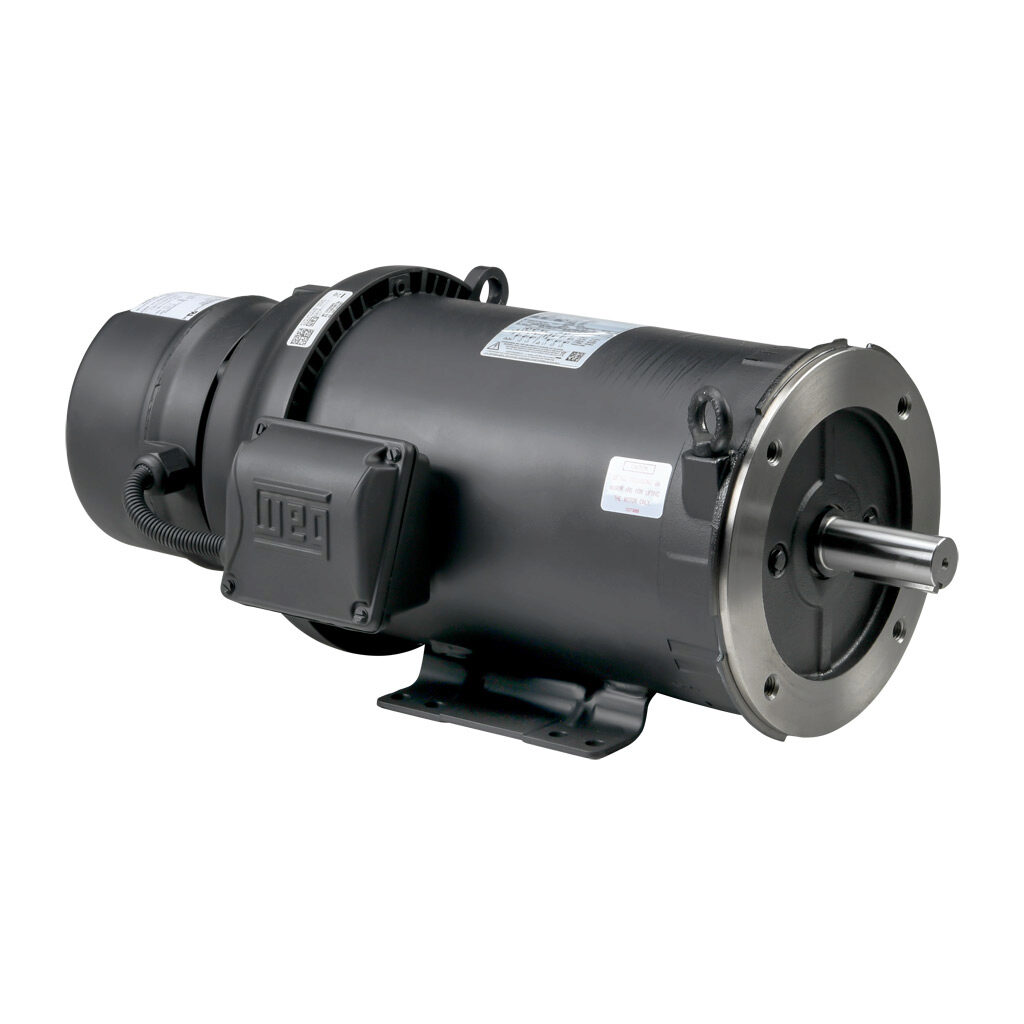

WEG 00518ET3EBM184TC-S 13733346 Brake Motor, 5 HP, 1800 RPM, 182/4TC Frame, 415 V Rated, Foot-mounted
Get it by Tuesday, Aug 25
€2,982.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 13/6.49A , 6.49/13A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Brake Input Voltage | 190/208-230/380/460V , 208-230/460/190/380V AC |
| Brake Ip Rating | IP23 |
| Brake Torque Rating | 25 lbs.-ft. |
| Brake Voltage Rating | 208-230/460V AC |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 14 sec. , 28 sec. |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 4:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 89.5% |
| Efficiency 50% | 60% , 88.5% |
| Efficiency 75% | 89.5% |
| Efficiency @ 1 % | 80% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 73% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Aluminum |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 16 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Included | Stearns 105606100BQF Brake Assembly |
| Insulation Class | Class F |
| Integrated Brake | Yes |
| Ip Rating | IP55 |
| L. R. Amps | 45.4/90.9A , 48.6A , 90.9/45.4A |
| Locked Rotor Time (cold) | 21 sec. |
| Locked Rotor Time(hot) | 12 sec. , 8 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6.4x(Code H) , 7.0X(Code J) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Manual Brake Release | Yes |
| Material | Carbon Steel |
| Moment Of Inertia | 0.308 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.308 lbs.-sq. ft. |
| Motor Application | General Purpose, Inverter Rated And Brake |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 184TC |
| Motor Speed | 1750 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 1750 RPM |
| Nde Bearing Seal | No |
| Nema Design | Design B |
| No Load Amps | 3.44/6.88A , 6.89/3.44A |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.8 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.73 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 88.5 |
| Power Factor @ 75 % | 89.5 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.78% |
| Speed | 1700-1800 RPM , 1750 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 15 lbs.-ft. |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC , 230/460/190-220/380-415V AC , 230/460V AC , 415V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Frequency | Frame | Shaft Dia. | Efficiency | No Load Amps | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

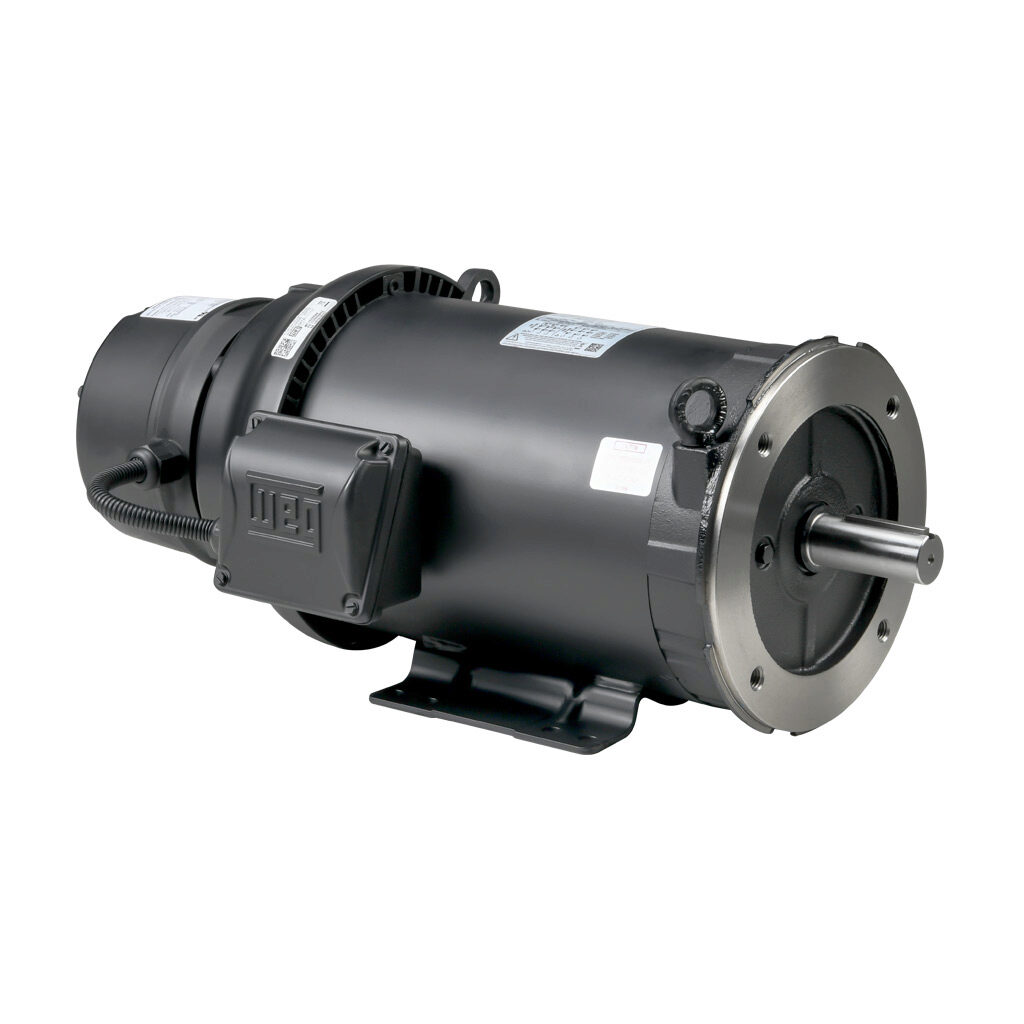

00318ET3EBM182TC-S | 208-230/460V AC | 50/60 Hz | 182/4TC | 1 1/8" | 89.5% | 4/2A | Foot Mounted | 3 hp | €3,571.20 | |
 |

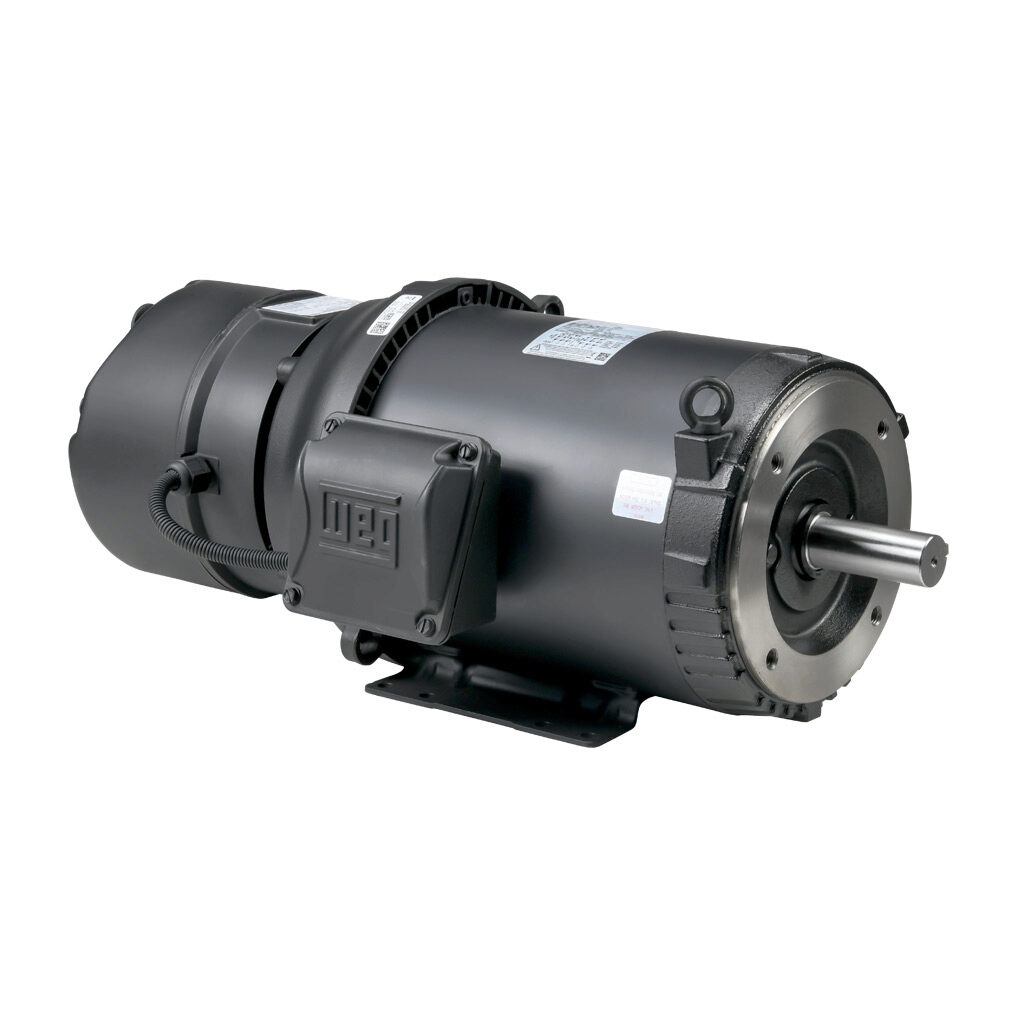

00718ET3EBM213TC-S | 208-230/460V AC | 60 Hz | 213/5TC | 1 3/8" | 91.7% | 8.81/4.41A | F-1 | 7 1/2 hp | €7,668.00 | |
 |

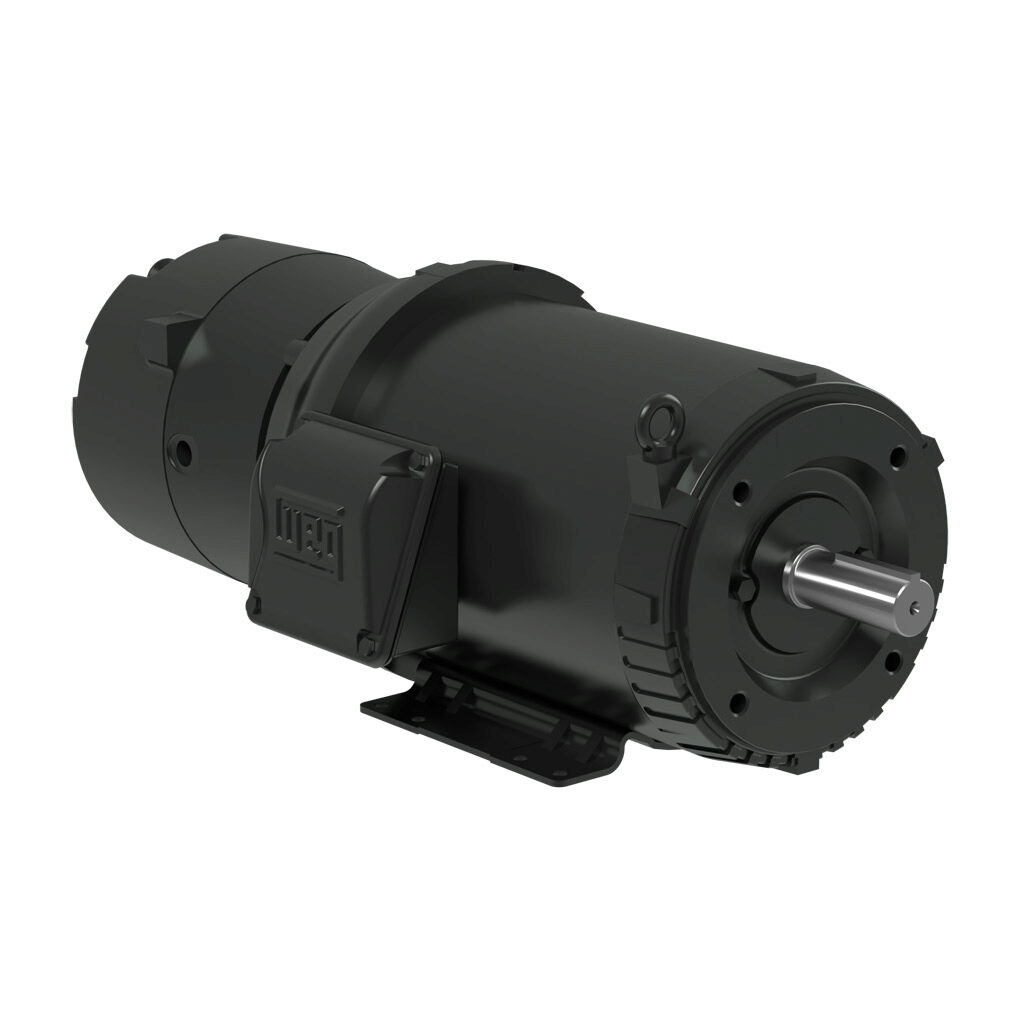

01018ET3EBM215TC-S | 208-230/460V AC | 60 Hz | 213/5TC | 1 3/8" | 91.7% | 11.1/5.54A | Foot Mounted | 10 hp | €8,362.80 |
