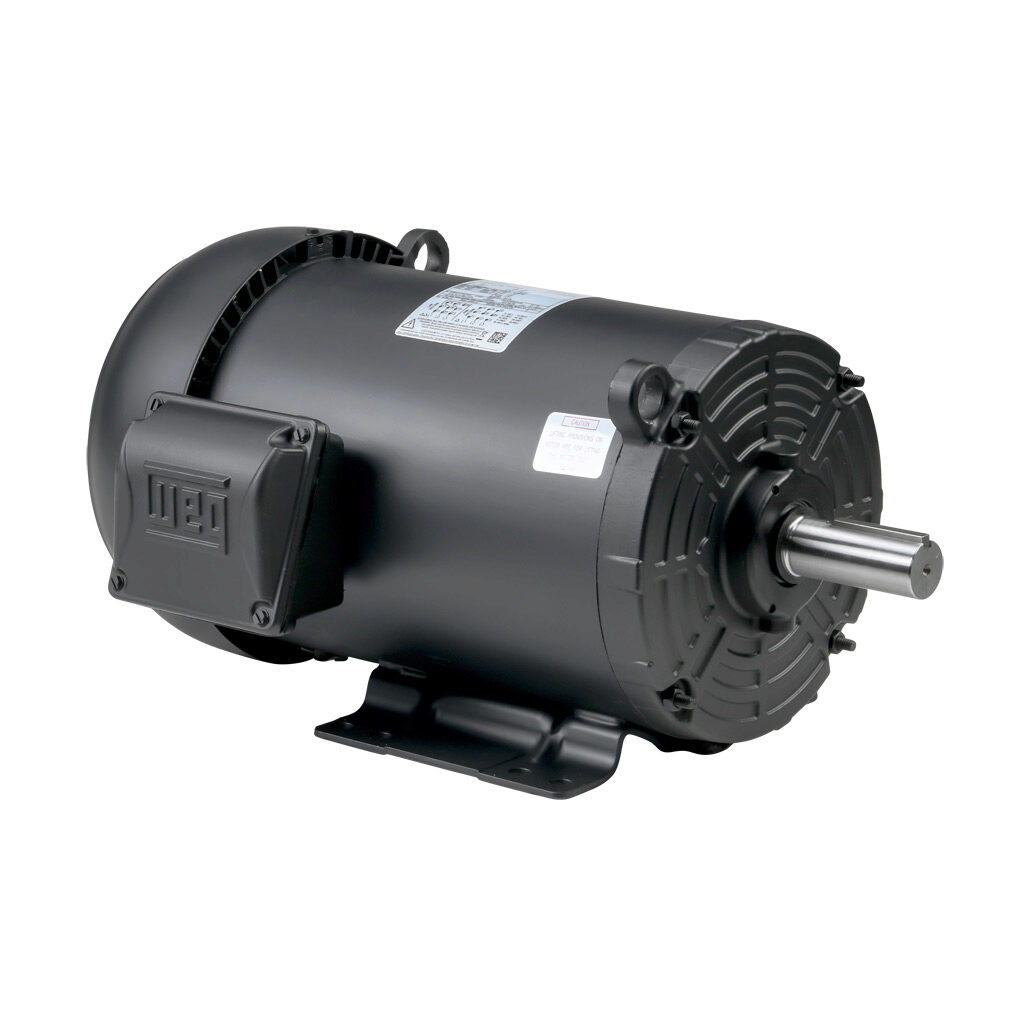

WEG 00518ET3E184T-S Electric Motor, 5Hp, 60Hz, 1800 Rpm | BA9XXU

WEG 00518ET3E184T-S 12630776 Electric Motor, 5Hp, 60Hz, 1800 Rpm

Item: BA9XXUModel: 00518ET3E184T-SCross Ref: 12630776
Check Availability
In Stock

Get it by Thursday, Dec 18

€801.76 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 28 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 89.5%
Efficiency At 1 % 80%
Efficiency At 50 % 60%
Efficiency At 75 % 73%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 182/4T
Frame Material Rolled Steel
Frame Size 184T
Frequency 50/60 Hz
Grade Grade 1045
Grounding Lugs Single
Hot Locked Rotor Time 16 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Ip Rating IP55
L. R. Amps 90.9/45.4A
Locked Rotor Torque 220%
Lrc 7.0X(Code J)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.308 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1750 RPM
Motor Type Induction
Mounting Foot Mounted
Mounting Orientation Horizontal
Nameplate Rpm 1750 RPM
No Load Amps 6.89/3.44A
No. Of Poles 4
Noise Level 56 dBA
Number Of Phases 3
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 89.5
Power Factor At 50 % 88.5
Power Factor At 75 % 89.5
Rated Current 13/6.49A
Rated Torque 15 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Diameter 1 1/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 36
Ship height (cm)77.98
Ship length (cm)115.06
Ship width (cm)85.09
Country of OriginBR
