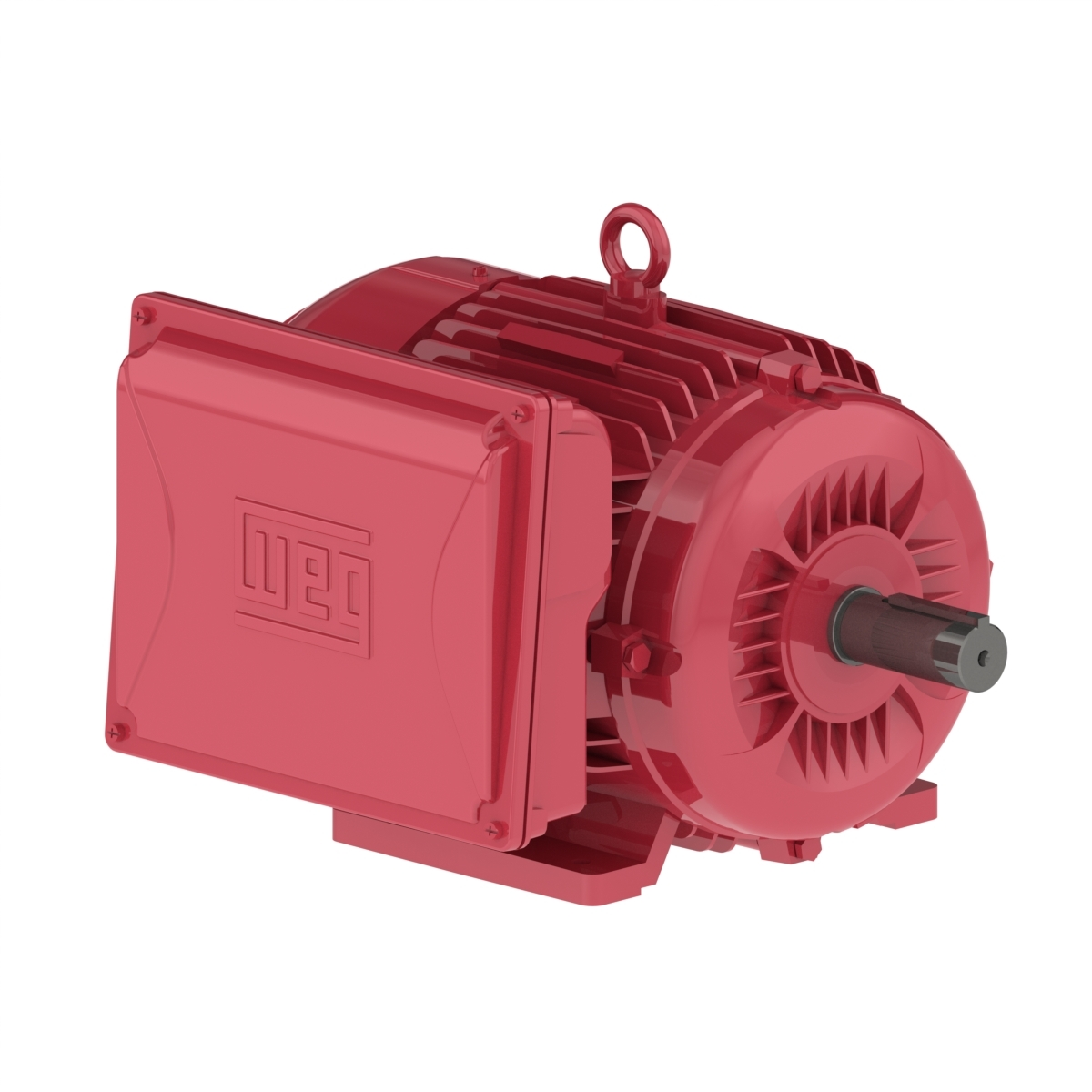

WEG 00518ES1DFD215Z-W22 14672459 Farm Duty Motor, 5 HP, 4 Poles, 213/5TZ Frame, 1 Phase, 230V, 60 Hz, Foot-mounted
Get it by Friday, Aug 21
€1,456.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 21.3A |
| Bearing Cap | No |
| Break Down Torque | 250% |
| Cold Locked Rotor Time | 10 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Frame Material | Cast Iron |
| Frame Size | 215Z |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Item | 2229709 |
| L. R. Amps | 155A |
| Locked Rotor Time(hot) | 6 sec. |
| Locked Rotor Torque | 370% |
| Lrc | 7.3x(Code J) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.7124 lbs.-sq. ft. |
| Nde Bearing Seal | V Ring |
| No Load Amps | 8.8A |
| No. Of Poles | 4 |
| Noise Level | 63 dBA |
| Overload Protector (phenolic) | Manual |
| Painting | Only Primer |
| Phase | 1 |
| Rated Speed | 1750 RPM |
| Rated Torque | 15 lbs.-ft. |
| Rated Voltage | 230V |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.78% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Tropicalized Painting | Without |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 66.6 |
